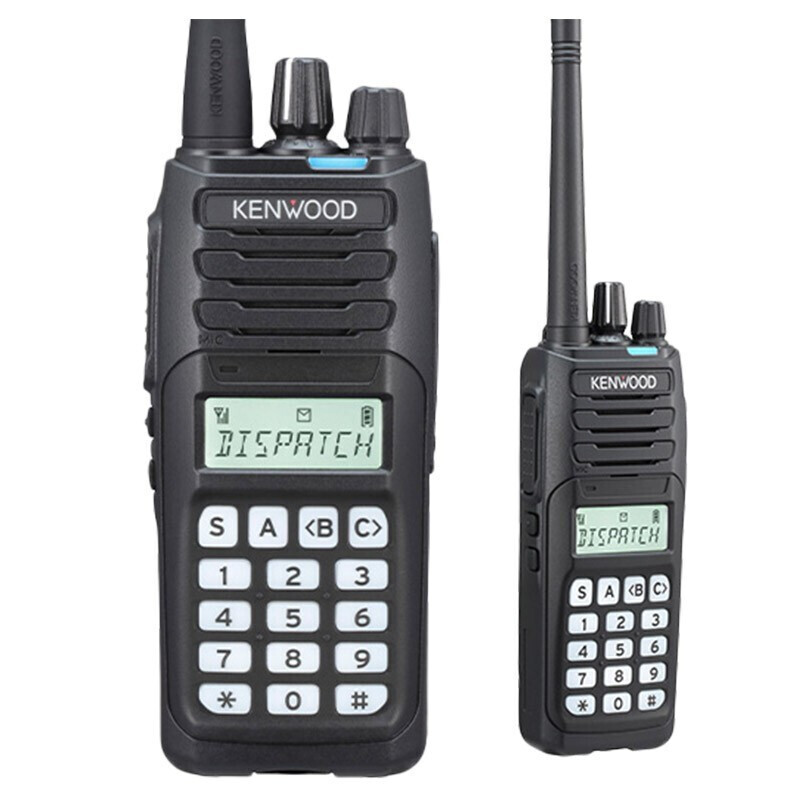

Kenwood NX-1300D Digital Portable Walkie Talkie NX-1300D-C
If you are thinking of harnessing the latest digital protocols – NXDN or DMR – to enhance business efficiency, the NX-1200/1300 has you covered. Our One-“K”-Fits-All solution offers the widest selection of two-way radios for everyday use. The model matrix also includes basic and keypad variations, with or without a high-contrast backlit LCD. Other features include a 7-colorLED indicator and the popular KENWOOD 2-pin audio accessory connector. Plus, mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital. But whatever your specific needs, audio quality is what determines clear voice communications – which is why KENWOOD radios are used under the most grueling conditions, like the cockpit of a racing car. Thanks to our extensive experience with professional systems, reliability is second to none. So whatever your radio requirements, KENWOOD’s NX-1200/1300 offers a single platform that’s right for you.
Function General Features
- Wide variations, “One” platform
- Choose from direct & intuitive LCD with full keypad or basic enclosures
- Easy visible Display: 8-digit LCD
- Large 7-Color LED indicator on the top panel
- RF output power 5W both on VHF/UHF
- Wide band UHF 70MHz coverage
- Renowned KENWOOD Audio Qualit
- Multiple Scan Functions
- VOX & PTT –triggered Semi- VOX, Voice-operated TX
- Emergency Function
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Front Panel Programming Mode
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 / 55 and IP67
- Intrinsically safe option (Available later)
Accessories
- Microphone
- Battery pack
- Rapid charger
- Multiple charger
- Belt clip
- Antenna
- Handset
- Earphone
Specifications
| Conventional indicators | ||
| Frequency Range | Type 1: 450-520 MHz Type 2: 400-470 MHz |
|
| Max. Channels per Radio | 260 (64 for Basic models) | |
| Number of Zones | 128 (4 for Basic models) | |
| Max. Channels per Zone | 250 (16 for Basic models) | |
| Channel Spacing | Analog | 30 / 25 / 15 / 12.5 kHz |
| Digital | 12.5 / 6.25 kHz | |
| Power Supply | 7.5 VDC ±20 % | |
| Battery Life (5-5-90) for Std keypad model |
KNB-45L/84L | 11H |
| KNB-53N | 7H | |
| KNB-69L | 14H | |
| Operating Temperature (Radio only)*1 | -30°C to +60°C | |
| Frequency Stability (-30 to +60°C; +25°C Ref.) | ±0.5 ppm | |
| Dimensions (W x H x D) / Weight (net) Projections not included; for Std keypad model |
Radio only | 54 x 123 x 33.5 mm / 175 g |
| With KNB-45L/84L | 54 x 123 x 33.5 mm / 295 g | |
| With KNB-53N | 54 x 123 x 33.5 mm / 365 g | |
| With KNB-69L | 54 x 123 x 33.5 mm / 310 g | |
| Receiver | ||
| Sensitivity | NXDN@6.25 kHz 3 % BER | 0.19 μV |
| NXDN@12.25 kHz 3 % BER | 0.24 μV | |
| DMR@12.25 kHz 1 % BER | 0.28 μV | |
| DMR@12.25 kHz 5 % BER | 0.20 μV | |
| Analog@12.5 / 25 kHz (12 dB SINAD) | 0.22 / 0.26 μV | |
| Selectivity | Analog@12.5 / 25 kHz | 67 / 74 dB |
| Intermodulation | 65 dB | |
| Spurious Rejection | 70 dB | |
| Audio Distortion | 7 % | |
| Audio Output (Internal) | 1W | |
| Transmitter | ||
| RF Power Output | 5 / 4 / 1 W | |
| Spurious Emission | -70 dB | |
| FM Hum & Noise Analog@12.5 / 25 kHz | 40 / 45 dB | |
| Audio Distortion | 2% | |
| DMR Digital Protocol | ETSI TS 102 361-1, -2, -3 | |
| Emission Designator | 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D, 7K60FXE, 7K60FXD | |
