MAT-TUNER mAT-125S 120W HF SSB Antenna Auto-tuner AUTO TUNER Automatic Antenna TUNER For ICOM YAESU KENWOOD Ham Radio

mAT-125S Versatile Automatic Antenna Tuner

Compact, Versatile automatic antenna tuner for HF transceivers with up to 120W power support

The mAT-125S is a compact, versatile automatic antenna tuner designed for HF transceivers. It supports a maximum RF power of up to 120 W and operates over a wide frequency range from 1.8 to 54 MHz.

The tuner is compatible with most HF transceivers on the market and is suitable for a wide variety of antennas, including long-wire, dipole, and vertical antennas. With fast tuning performance, the mAT-125S typically completes a full tuning cycle in less than 5 seconds.

Its simple front-panel controls and clear SWR indication make operation straightforward and reliable in both fixed and portable installations. Designed for amateur radio operators who require a dependable and easy-to-use tuning solution, the mAT-125S provides stable performance for everyday HF operation.

The front panel of the mAT-125S is designed for simple and intuitive operation. It features a clear SWR LED indicator that provides a quick visual reference of the antenna match status. A dedicated power indicator shows the tuner’s operating state at a glance. The TUNE/BYPASS switch allows the user to select normal operation, initiate a tuning cycle, or bypass the tuner as required. A separate ON/OFF switch provides direct power control without the need to disconnect the power supply.

The rear panel of the mAT-125S provides all necessary connections for reliable station integration. It includes a UHF antenna connector for the antenna feed line and a UHF RF input connector for connection to the transceiver. A ground terminal is provided for connection to the station ground or grounding system to help ensure stable operation. The DC power jack accepts 12–14 V DC input, allowing the tuner to be powered from a regulated power supply or battery source.

Technical Specifications

The post MAT-TUNER mAT-125S 120W HF SSB Antenna Auto-tuner AUTO TUNER Automatic Antenna TUNER For ICOM YAESU KENWOOD Ham Radio appeared first on .

Product Overview:

 PLUTO+ is a software-defined radio platform that supports 2TX and 2RX, supports Gigabit Ethernet and Micro SD card. It refers to the design for well-known ADI ADALM-PLUTO and improves its shortcomings.

Features:

– ADC/DAC: AD9363 (Can hack to AD9361 or AD9364)

– 2 Transmit, 2 Receiving channel

– RF Range: 70MHZ~6GHZ

– Ref Clock: VCTCXO 40MHZ 0.5ppm

– SOC: for Zynq7010 FPGA: 28k

– RAM: 512M

– FLASH: 32M

– USB: 2.0, support OTG

– Ethernet: 1000Mb

– Micro SD can use to boot

– DC IN: 5V±0.5V-2A microUSB

Interfaces:

Please note that all IO levels are 1.8V.

3.1 When using the official firmware for ADI-PlutoSDR, please connect to URST-MI052.

3.2 When using Pluto+ firmware and need to support Ethernet, please connect URST-MIO46

3.3 When using SD card to boot, please connect SD-H to 1V8

3.4 When using JTAG to debug, please connect JTAG# to GND

3.5 Please connect EXCLK to GND when using external reference clock input

PTT Key Port:

– PTT drives optocouplers through GPIO0 (MI00), which requires an external relay or control circuit.

DFU KEY:

– At any time, you can press the DFU button and power on PLUTO+ again to enter the DFU mode, but you need to connect the URST jumper to MI052.

Ref CLK input IPEX:

– You can connect a cable to input an external high-precision reference clock for AD9363 through the IPEX interface.

– The main level should not exceed 3.3V, and the EXCLK jumper needs to be connected to GND to turn off the built-in clock

Calibrate the Frequency of Built-in VCTCXO:

– The frequency of the 40M clock can be fine-tuned by adjusting the adjustable resistor next to the VCTCXO, provided that you have a reference signal source.

Micro-SD:

Support booting via SD card, need to connect SD-H jumper to 1V8.

PLUTO+ Standard Package Included:

– 1 x SDR Radio PLUTO+

PLUTO+ Standard with Antenna Package Included:

– 1 x SDR Radio PLUTO+

– 1 x USB cable

– 1 x 8dBi 2.4GHz/5GHz/5.8GHz antenna

– 1 x 5dBi 40MHz-860MHz antenna

– 1 x 40MHz-6GHz telescopic antenna

– 1 x 12dBi 700MHz-2700MHz antenna

Note:

– It is assembled and ready to use.

– SD card is not included in the package.

The post Original PLUTO+ ADC/DAC AD9363 SDR Radio Receiver Transmitter 70MHz-6GHz Software Defined Radio ADI ADALM-PLUTO Plus appeared first on .

The post New XIEGU WR12 Broadband Receiver 54-1000MHz X6200 Shortwave Radio Expansion Module appeared first on .

Description:
– The mAT-600A is a universal high-power automatic antenna tuner compatible with nearly all transceivers and linear amplifiers. It supports a maximum RF power of 600 watts (SSB) and operates across a frequency range of 1.8-54MHz. Featuring an extremely simple operation, the tuner’s front panel contains just one button and three indicator lights.

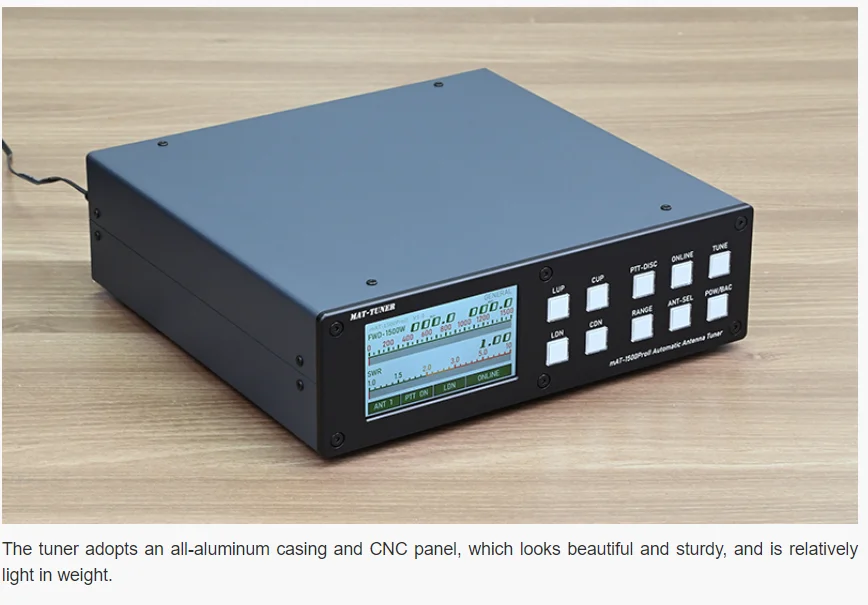

– The unit is constructed with a full aluminum enclosure and CNC-machined panel, combining an aesthetically pleasing rugged design with relatively lightweight portability.

Features:
– Universal antenna tuner, no need to connect a dedicated data cable, supports most shortwave radio stations.
– The maximum achievable RF power is 600W (SSB). The tuning power of antenna tuner is 5-15W.
– Covering the amateur frequency range of 1.8MHz to 50MHz.
– There is only one tuning key [TUNE] in front of the antenna tuner. When the radio is in the appropriate tuning state for transmission, press and hold the tuning key for 1 second to start tuning.

Specification:

-Brand: MAT-TUNER

– Model: mAT-600A
– Frequency range: 1.8 – 54MHz
– Pass power: ≤600W (SSB)
– Tuning power: 5 – 15W
– Tuning time: ≤8s (complete tuning); 0.1s (memory tuning)
– Operating temperature: -10℃~+60℃
– Storage channel: 16000
– Power supply requirement: DC12 – 14V; ≥1A
– Product size: 192 x 75 x 193mm
– Net weight: 1.9kg

Tuning Operation Steps:
1. Set the radio station to the desired frequency, transmit power to 10W, and mode to one of CW, FM, FSK, or RTTY.
2. If you are using a linear amplifier, please switch it to the pass through state and stop the amplification function.
3. Press and hold the PTT button on the radio receiver (CW mode uses electric keys to transmit), allowing the radio to send a stable carrier wave to the antenna tuner.
4. Press and hold the [TUNE] button for 1 second before releasing it to start tuning. The “TUNING” indicator light on the front panel will light up, and during the tuning process, the tuning will make a loud noise.
5. When the “TUNING” indicator light goes out and the antenna tuner no longer makes any sound, it indicates that the antenna tuner tuning is complete. If the “ONLINE” indicator light is on, it indicates that the tuning of the tuner is successful, and if it is off, it indicates that the tuning of the tuner has failed.
6. If the tuning is successful, please restore the power and mode of the radio to the settings you need. If you are using a linear amplifier, you can set it to the amplification state and you can transmit normally.
7. If you change the operating frequency of the radio, please repeat steps 1-6 before the first transmission.

Package Included:
– 1 x Antenna Tuner
– 1 x DC Power Cable

The post mAT-600A High Power Universal Automatic Antenna Tuner 1.8-54MHz 600W Shortwave Antenna Tuner appeared first on .

The post UHF Female to UHF Female lightning arrester DC-3GHz walkie talkie lightning arrester CA-35R appeared first on .

【 Walkie-talkie Special Handbag 】Two-way radio storage holderis perfectly suitable for UV-5R Mini Mini 5 two-wayradio. It can also hold chargers, antennas, headphones and other accessories, making it convenient to carry outdoors.

【High Quality】Two-way radio carrying caseis made of sturdy materials to protect UV-5R Mini/ Mini 5 walkie-talkie from wear and tear, ensuring that the device remains scratch-free and in its original condition, even during frequent handling and transportation. Made of high-quality materials, it is wear-resistant and shock-resistant, protecting the walkie-talkie from damage.

【Wide Range of Uses】 Suitable for outdoor firefighting, police work, mountain rescue, camping, hunting, travel, mountain climbing, etc

The post UV-5R Mini Walkie Talkie Carrying Case Handbag Storage For UV-5RMini Mini 5 Ham Radio Launch Camping Bag appeared first on .

The CH-5030 is a compact, single-paddle semi-automatic Morse key designed for the active ham radio operator. It features a robust magnetic base for secure, tool-free mounting on any metal surface of your mobile or portable transceiver setup. Ideal for field operation, contesting, or as a reliable backup key, its simple yet precise design ensures smooth CW (Morse code) operation.

Master Morse Code with the CH-5030 Portable Magnetic Paddle Key

The CH-5030 is the ultimate compact solution for amateur radio (ham radio) enthusiasts who practice Continuous Wave (CW) communication. This fully automatic Morse code keyer is engineered for operators who value portability, stability, and precision, whether at home, in the field, or in a mobile setup.

Precision Engineering for Flawless Operation
Crafted with a responsive single paddle, the CH-5030 allows for smooth and rapid keying. The manually adjustable contacts on both sides let you perfectly customize the tactile feedback and spacing to match your personal fist (keying style), ensuring comfortable and accurate sending during long QSOs.

Unshakable Stability with Powerful Magnet Base
Forget clamps and bulky mounts. The integrated base features four ultra-strong neodymium magnets, providing a incredibly secure and stable connection to any steel surface. Mount it effortlessly on your mobile transceiver, a field operating table, or any metal surface for a rock-solid foundation that won’t slip during intense contesting or casual operating.

Designed for the Modern Ham Radio Operator

• Ultra-Portable: Measuring just 50x30mm and weighing only 50g, it fits in any go-bag.
• Plug & Play: Includes a ready-to-use cable for immediate connection to most transceivers.
• Versatile Mounting: The included round metal piece with adhesive tape allows for permanent mounting on non-magnetic surfaces, offering maximum flexibility.

Package Includes:

• 1 x CH-5030 Automatic CW Telegraph Key
• 1 x Connection Cable (3.5mm or 6.35mm jack, specify which)
• 1 x Round Metal Mounting Plate with 3M Adhesive Tape

Elevate your CW experience with the reliability and convenience of the CH-5030.

FAQ

Q: Is the CH-5030 compatible with Icom IC-705 and Elecraft KX2?
A: Yes, the CH-5030 uses a standard 3.5 mm plug and is compatible with most HF transceivers including Icom IC-705, Elecraft KX2/KX3, Yaesu FT-818, and Xiegu X6100.

Q: Can the CH-5030 be used on a non-metal surface?
A: Yes, a round metal disc with adhesive tape is included. Attach it to any flat surface, and the magnetic base will lock onto it securely.

Q: Is this a manual or automatic CW key?
A: The CH-5030 is a single paddle key designed for automatic (iambic) keying when connected to a transceiver or external keyer with built-in keyer functionality.

Q: How small is the CH-5030 compared to other CW keys?
A: At just 50 × 30 mm and 50 g, the CH-5030 is one of the most compact single paddle CW keys available, making it ideal for backpack portable operations.

The post CH-5030 Single Paddle Morse Key with Magnetic Base – Portable CW Keyer for Ham Radio Transceivers appeared first on .

Touch-activated automatic CW key box with USB I/O support, built-in side tone generator, and 8.4V rechargeable battery. Compact 145×120×55mm design ideal for portable ham radio operations.

The post Auto CW Key Box: Touch-Activated, USB I/O, Side Tone | 8.4V Li-ion appeared first on .

Interface:
1. Data Reception and Transmission Indicator
2. USB Connection Indicator
3. Indicator of Reception and Transmission
4. Radio Connection Status Indiccator
5. USB Interface for PC
6. Interface for CIV
7. Interface for XPA125B
8. Interface for ACC (Mini-Din8)

Compatible with:

Package Included:
1 x DE-19 Digital Adapter
1 x Type-C data cable
1 x 3.5mm cable
1 x ACC cable

The post XIEGU DE19 Adapter for Digital Modes | Connect G90/G106/X5150 to PC & XPA125B appeared first on .

Specification:

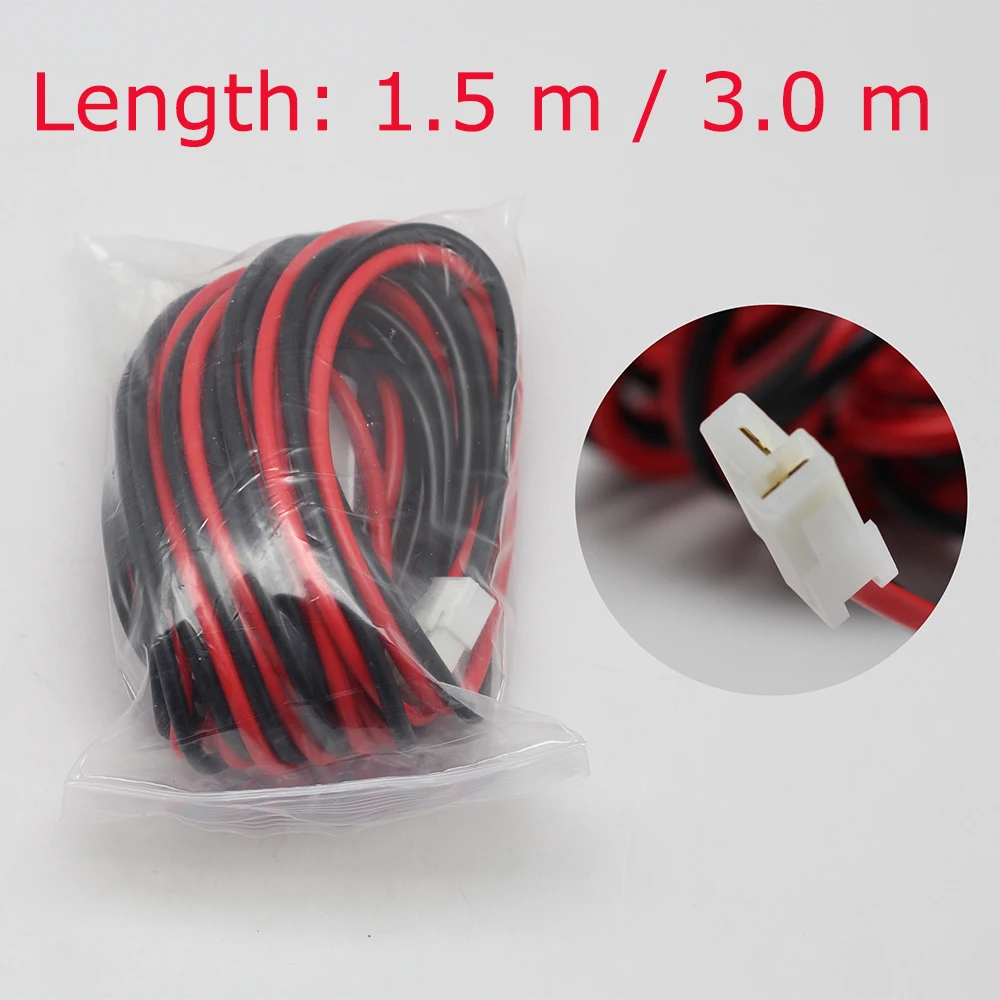

– Length: 1.5m/3m (optional)

Package Included:

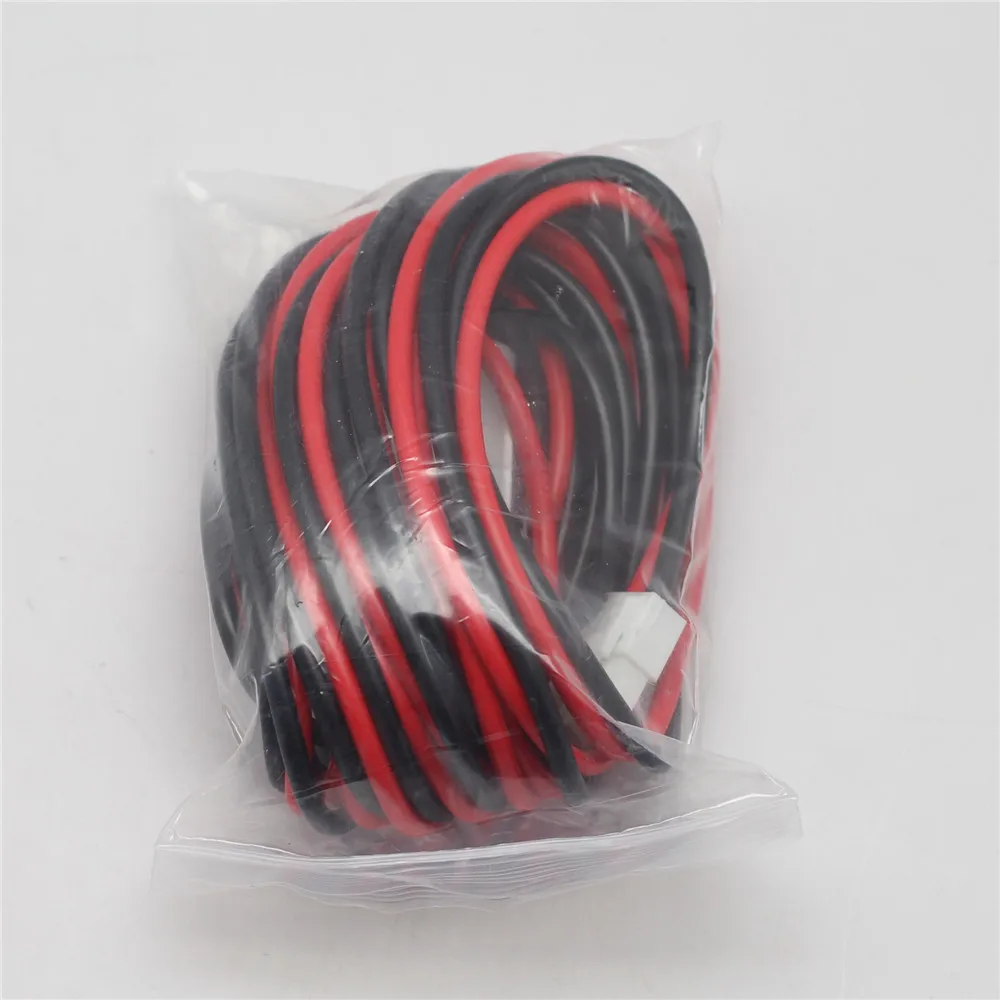

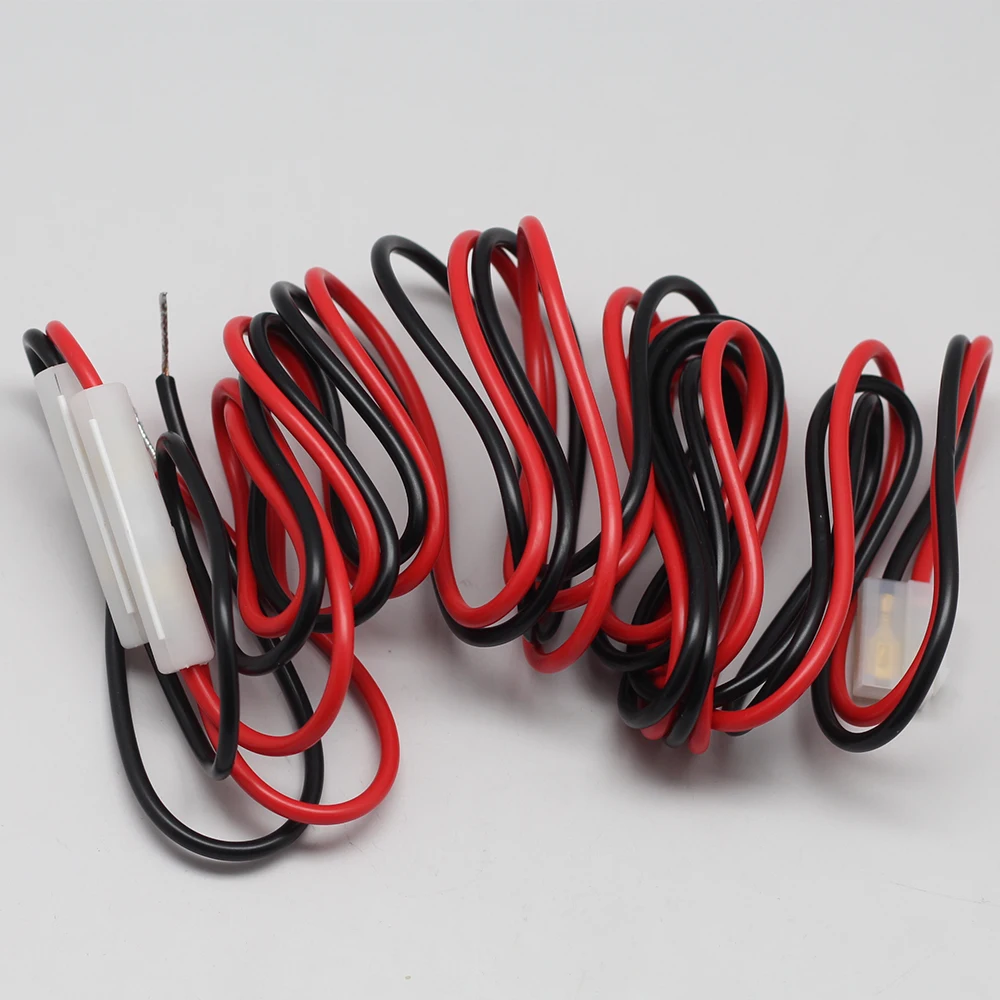

– 1 x Separation Cable

The post YAESU SCU-66 (1.5m) & SCU-66L (3m) Separation Cable for FTX-1C Host and Power Amplifier appeared first on .
