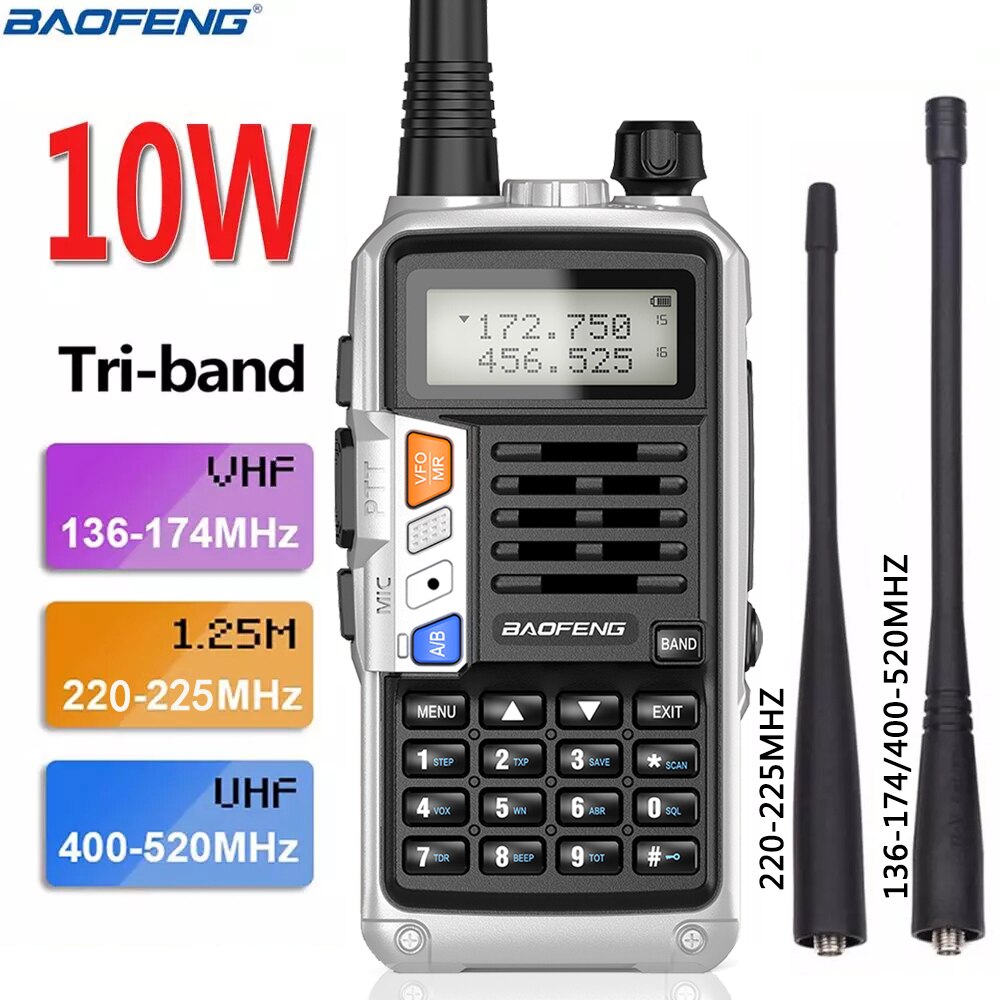

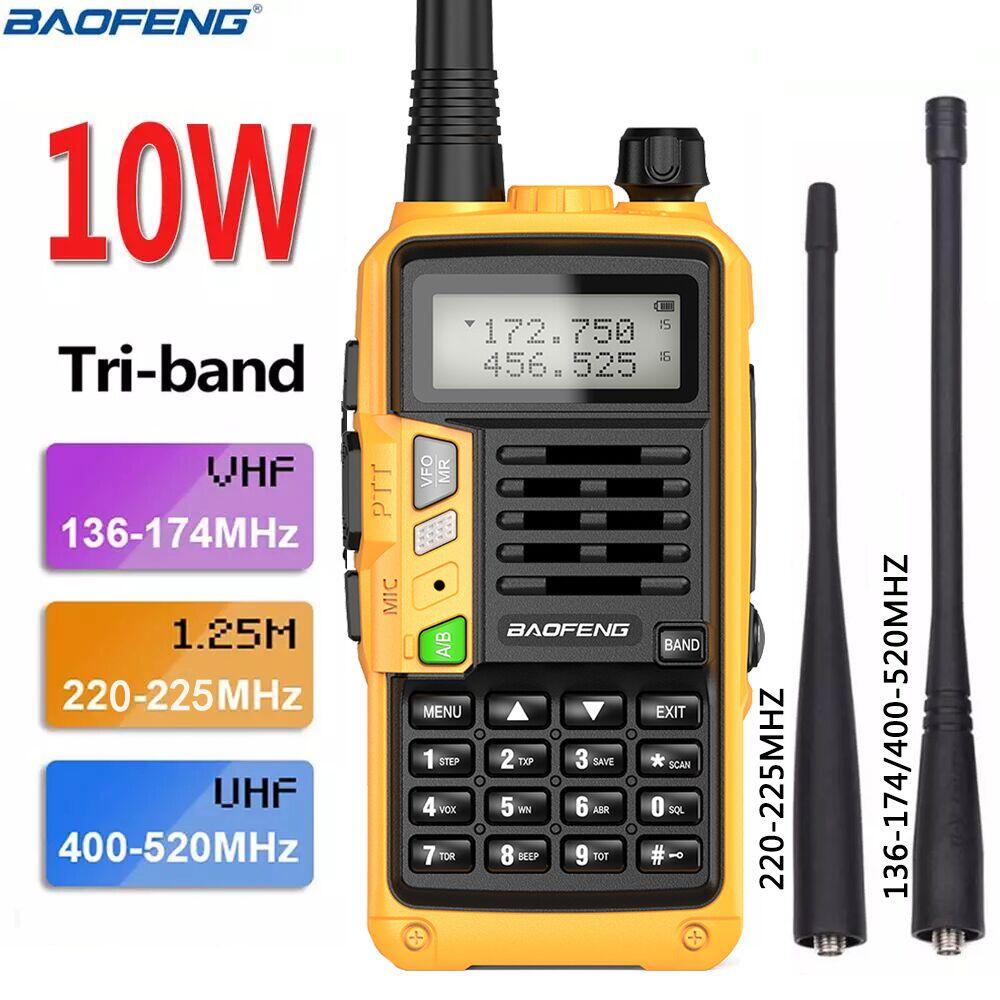

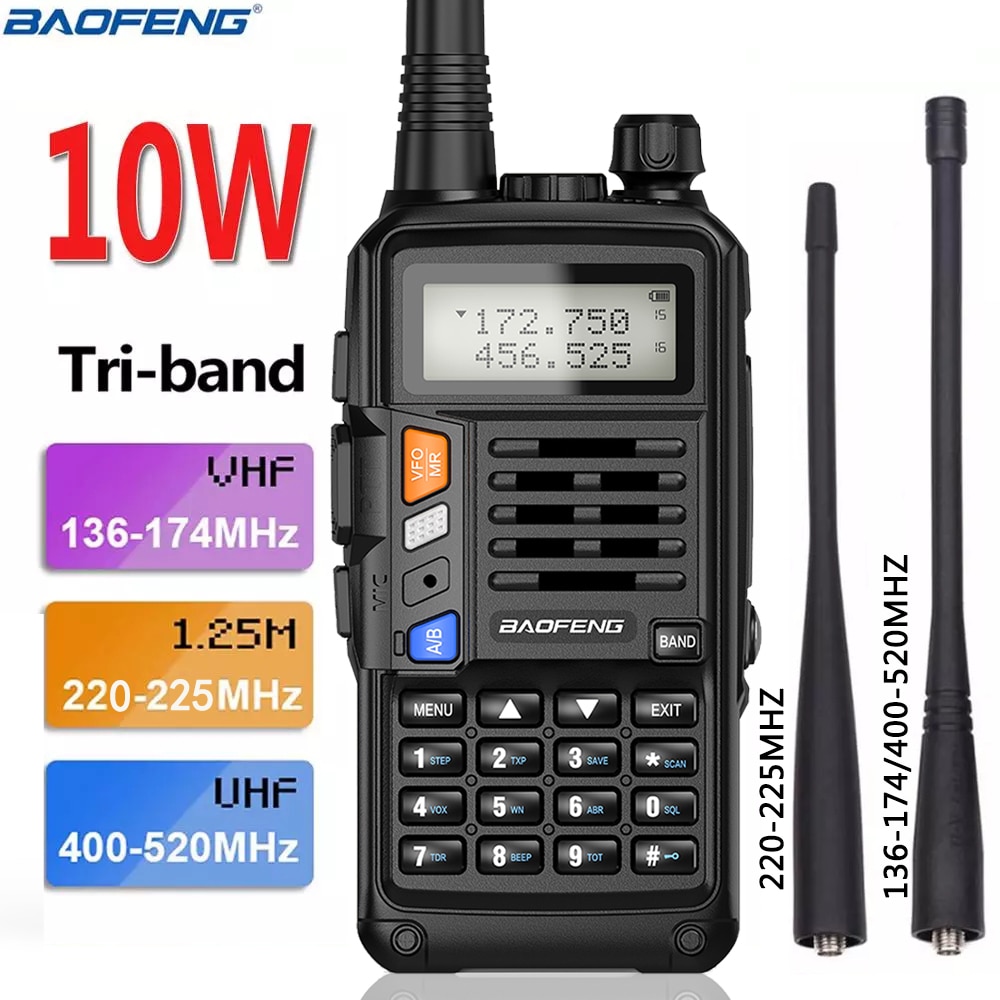

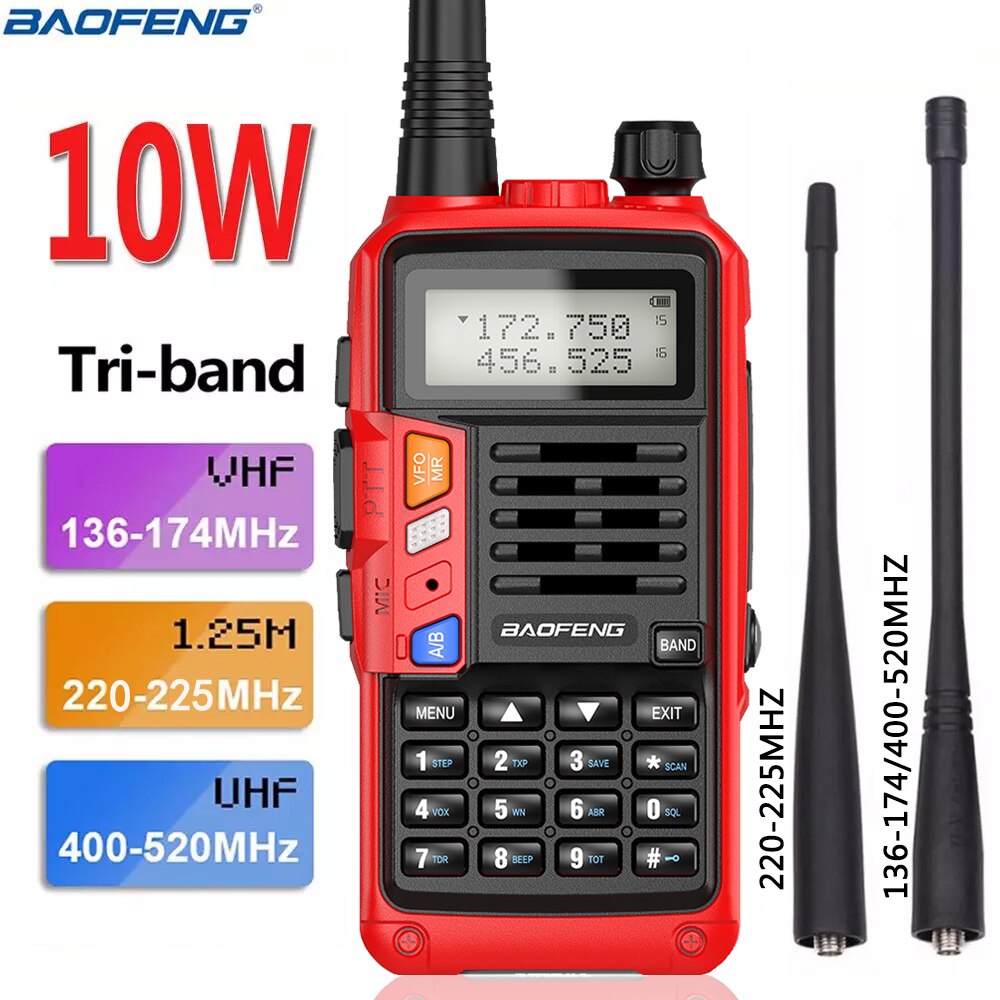

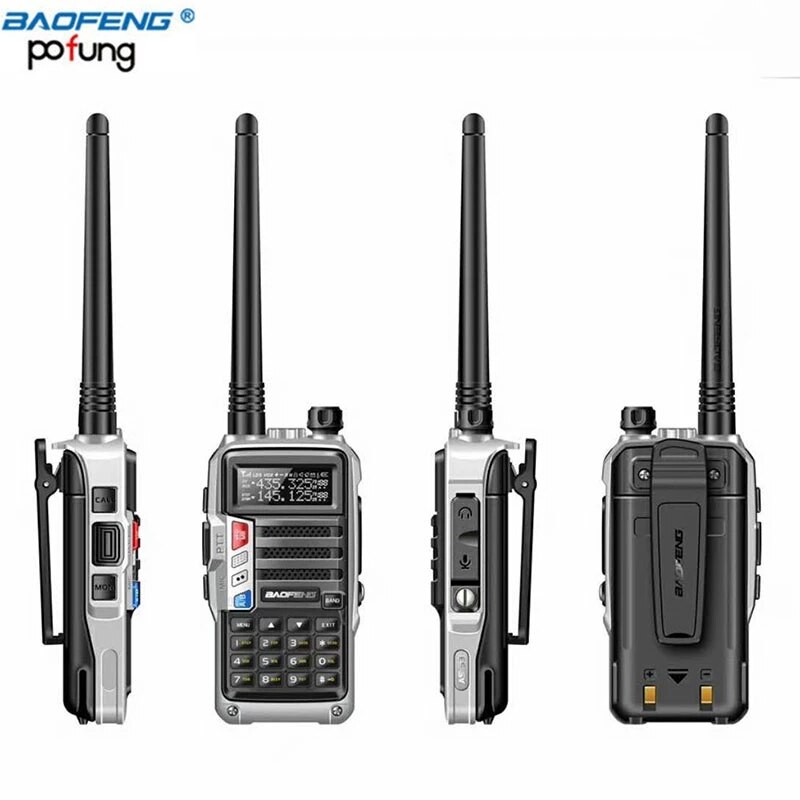

Baofeng UV-S9 Plus 10W Tri-Band 136-174/220-225/400-520MHz High Power Amateur CB Radio Comunicador Transmitter Walkie Talkie
-
1.BaoFeng UV-S9 PlusTri-band radio is upgrade of UV-9S. High Power .
-

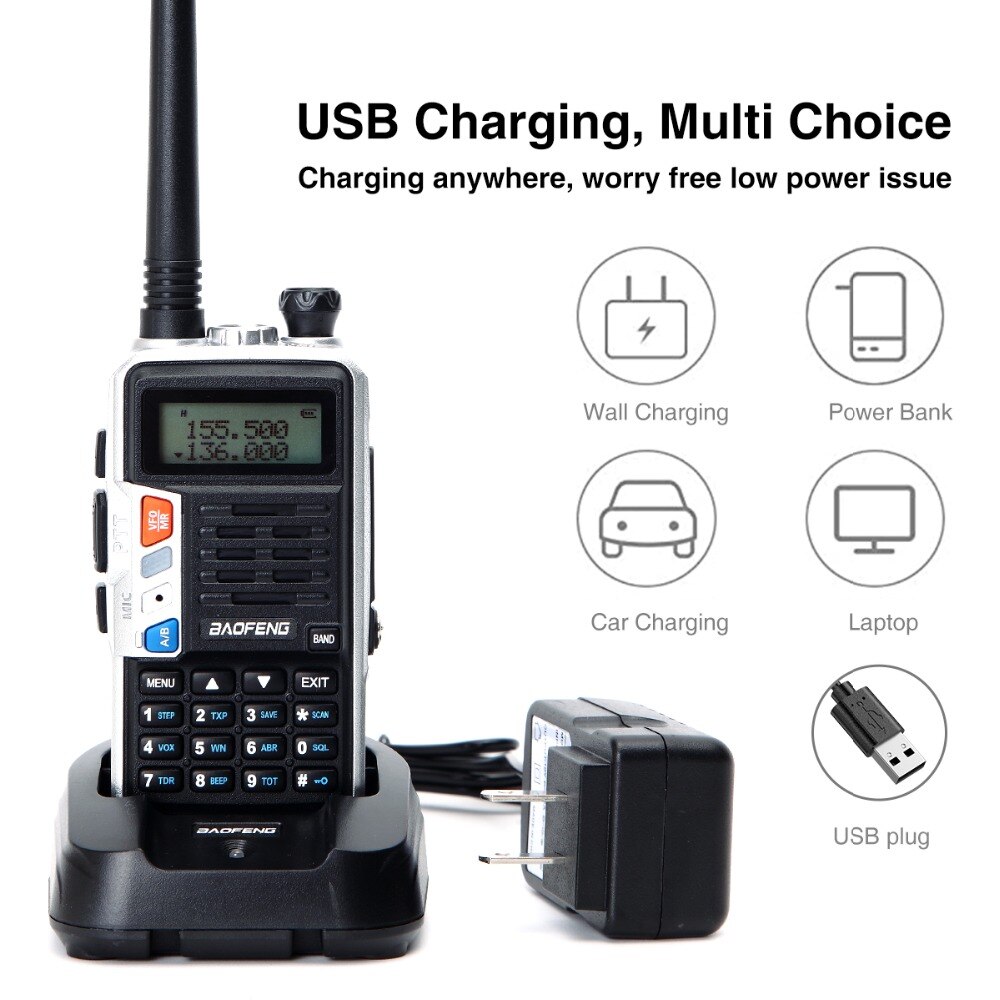

2.With optional methods to charge the battery.Multiple charging mode.
-
3.Frequency Range: VHF: 136-174MHz (RX/TX), UHF: 400-520MHz (RX/TX),220-225Mhz With 2 x Antenna (One is Specifically for 220-225Mhz）
65-108MHz (Only commercial FM radio reception). Channels:128 groups of storage channels,Broadband (Wide) 25khz / Narrowband (Narrow) 12.5khz Selectable. -
4.Larger Capacity Li-ion Battery Equipped with a 2800mAh Li-ion battery. UV-S9 Plus Tri-band is light weight and handy.Simply press PTT key to talk: even at night by switching on the built-in LED flashlight and built-in VOX Function hands-free communication.
-
5.Special service:A link to the special Baofeng UV-S9 Plus Tri-band programming software and firmware can be provided free of charge according to your requirement
-

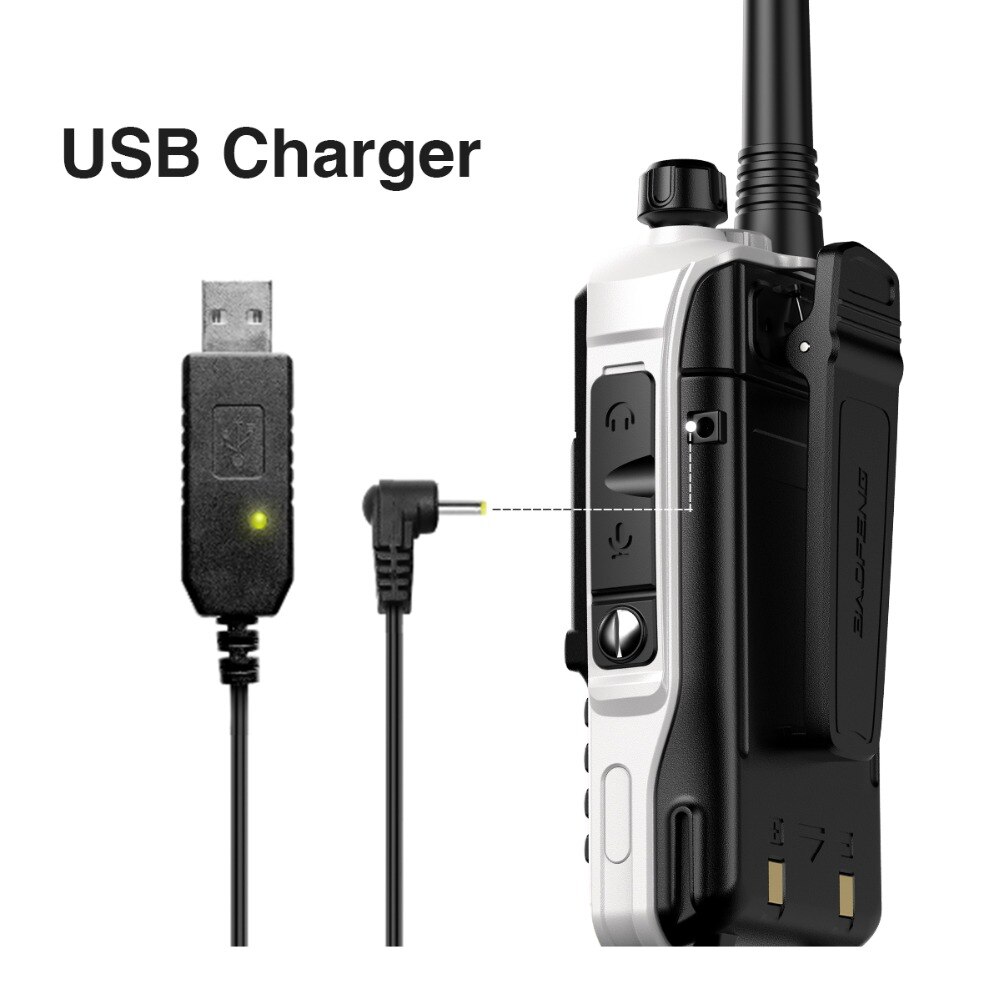

Baofeng UV-S9 Plus Tri-Band is aslo a 10W powerful walkie talkie. with optional methods to charge the battery. But the standard does not include the USB cable and car charger cable.If you want to buy the related accessories, you can buy it by the above information.and you can contact with us.

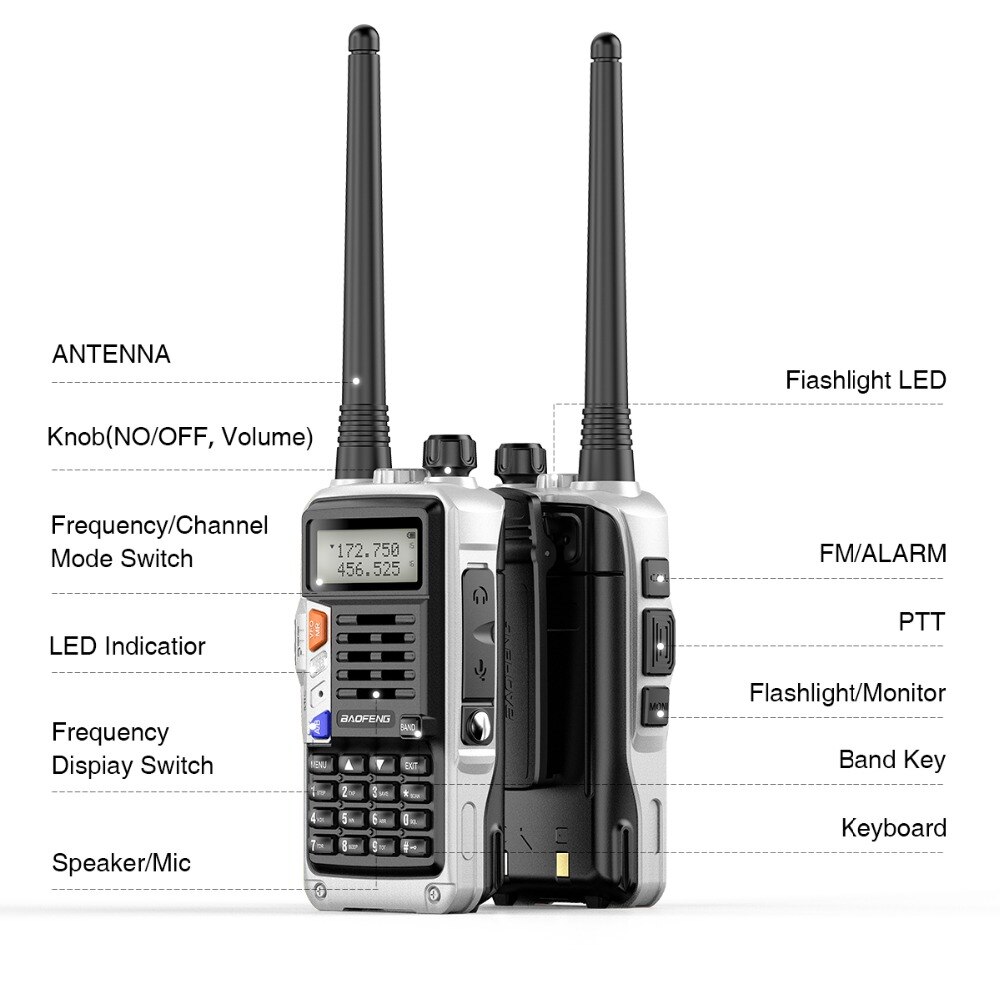

Feature:
1. 100% Brand New & Never Used
2. Tri-band handheld transceiver with display function menu on the display “LCD”
3. DTMF encoded
4. Lithium-ion battery with high capacity
5. Commercial FM radio receiver (65MHz~108MHz)
6. Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable
7. Function “VOX”(voice operated transmission)
8. Alarm function
9. Up to 128 memory channels
10. Broadband (Wide)/Narrowband (Narrow), selectable
11. High/low power selectable
12. Display illumination and programmable keyboard
13. Function “beep” on the keyboard
14. Dual Watch/dual reception
15. Selectable Frequency Step
16. Function “OFFSET” (frequency offset for repeater access)
17. Battery saving function
18. Timer transmission “TOT” programmable
19. Selecting the Scan Mode
20. Busy Channel Lock
21. Built-in RX CTCSS/DCS scan
22. Built-in LED flashlight
23. Programmable by PC
24. Level Threshold “Squelch” adjustable from 0 to 9
25. Cross band reception
26. Tone end of transmission
27. Built-in key lock
Specification:
|
General |
||
|
Frequency range |
136-174MHz(Rx/Tx) |
|
|
Memory channels |
Up to 128 channels |
|
|
Frequency stability |
2.5ppm |
|
|
Frequency step |
2.5/5/6.25/10/12.5/25KHz |
|
|
Antenna impedance |
50 OHM |
|
|
Operating temperature |
-20°C-60°C |
|
|
Supply voltage |
Rechargeable Lithium-Ion 7.4V |
|
|
Battery Capacity |
2800mAh |
|
|
Consumption in standby |
<=75mA |
|
|
Consumption in reception |
380mA |
|
|
Consumption in transmission |
<=1.4A |
|
|
Mode of operation |
Simplex or semi-duplex |
|
|
Dimensions |
110x58x32mm |
|
|
Weight |
130g(approximate) |
|
|
Transmitter |
||
|
RF power |
8W/1W |
|
|
Modulation type |
FM |
|
|
Emission class |
16K øF3E/11KøF3E(W/N) |
|
|
Maximum deviation |
<=±5KHz/<=±2.5KHz(W/N) |
|
|
Spurious emission |
<-60dB |
|
|
Receiver |
|
|
|
Receiver sensitivity |
0.2µV (at 12 dB SINAD) |
|
|
Inter modulation |
60dB |
|
|
Audio output |
1000mW |
|
|
Adjacent channel selectivity |
65/60dB |
|
Feature:
1. 100% Brand New & Never Used
2. Dual-band handheld transceiver with display function menu on the display “LCD”
3. DTMF encoded
4. Lithium-ion battery with high capacity
5. Commercial FM radio receiver (65MHz~108MHz)
6. Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable
7. Function “VOX”(voice operated transmission)
8. Alarm function
9. Up to 128 memory channels
10. Broadband (Wide)/Narrowband (Narrow), selectable
11. High/low power selectable
12. Display illumination and programmable keyboard
13. Function “beep” on the keyboard
14. Dual Watch/dual reception
15. Selectable Frequency Step
16. Function “OFFSET” (frequency offset for repeater access)
17. Battery saving function
18. Timer transmission “TOT” programmable
19. Selecting the Scan Mode
20. Busy Channel Lock
21. Built-in RX CTCSS/DCS scan
22. Built-in LED flashlight
23. Programmable by PC
Specification:
|
General |
||
|
Frequency range |
VHF:136MHz-174MHz(Rx/Tx) |
|
|
Memory channels |
Up to 128 channels |
|
|
Frequency stability |
2.5ppm |
|
|
Frequency step |
2.5/5/6.25/10/12.5/25KHz |
|
|
Antenna impedance |
50 OHM |
|
|
Operating temperature |
-20°C-60°C |
|
|
Supply voltage |
Rechargeable Lithium-Ion 7.4V |
|
|
Battery Capacity |
2800mAh |
|
|
Consumption in standby |
<=75mA |
|
|
Transmitter |
||
|
RF power |
8W/1W |
|
|
Modulation type |
FM |
|
|
Emission class |
16K øF3E/11KøF3E(W/N) |
|
|
Maximum deviation |
<=±5KHz/<=±2.5KHz(W/N) |
|
|
Spurious emission |
<-60dB |
|
|
|
|
|
Package include:
· 1 X Portable radio
· 1 X Inductively loaded antenna
· 1 X 2800mAh Li-ion battery pack
· 1 X LI-ion charger
· 1 X Belt clip
· 1 X The Sling
· 1 X User’s manual
