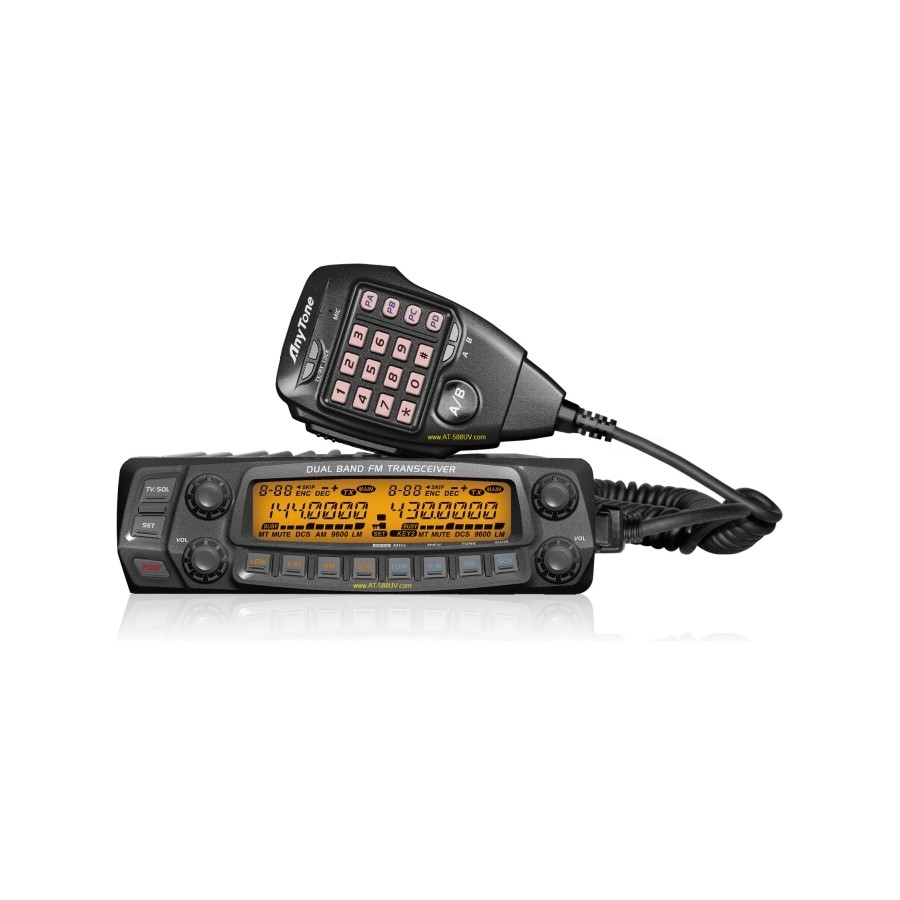

* 50W/40W Full DualBand VHF/UHF Mobile Radio Transceiver!

* Full Twin Display and Receive, Cross Band Repeater mode too!

* Features CTCSS, DCS, ANI, DTMF, 2-Tone/5-Tone, Alphanumeric Display, 758 channels & more!

* Transmits 136-174Mhz & 400-490Mhz FM, Receives 200-260Mhz, 350–490 MHz, 108-180 MHz (AM mode selectable on VHF receive freqs for AirBand recption)

* Narrow Band compliant, Remote Mountable Faceplate, Lighted Keypad mic, Built-in Speakers in both Radio & Mic, Built-In cooling Fan, & More!!



Description

Output Power: 50 Watts(VHF )/40 Watts (UHF)
Frequency Range:VHF 136 – 174 MHz /UHF 400 – 490 MHz
CTCSS/DCS/DTMF/2 Tone/5 Tone decode and encode
ANI function (DTMF/ANI,5-Tone/ANI)PTT ID
FCC Certified
True Dual Band Receive
200 Memory Channels
APO Power Management
Selectable Three Color Backlight

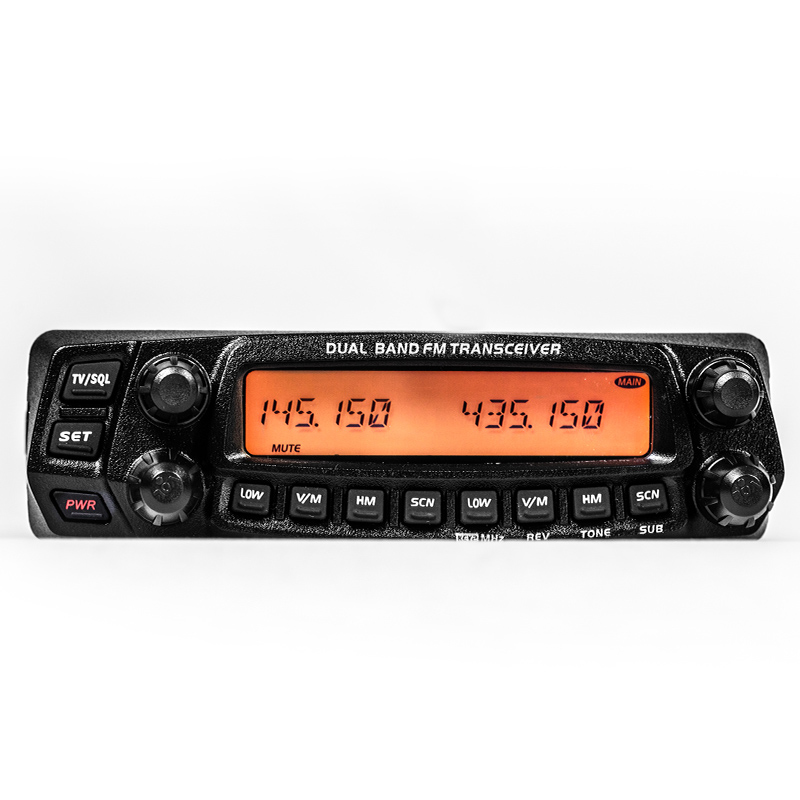

Dual Display V/U U/V V/V U/U
Scrambler function(optional)

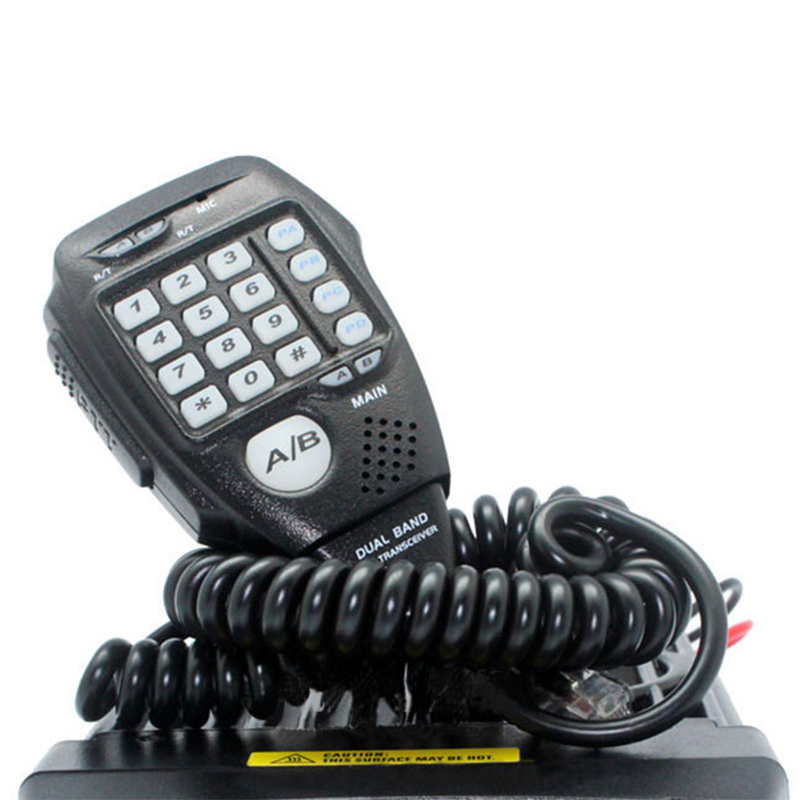

DTMF Microphone

Features:

General:
Frequency range : VHF 136 – 174 MHz /UHF 400 – 490 MHz
Output Power: 50 Watts(VHF )/40 Watts (UHF)
Channels: 200channels
Channel Spacing :25KHz
Phase-locked Step: 5/6.25/10/12.5/15/20/25/50KHz
Operating Voltage : 13.8V DC ± 15%
Squelch:Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability: 2.5ppm
perating Temperature : 20C ~ + 60C

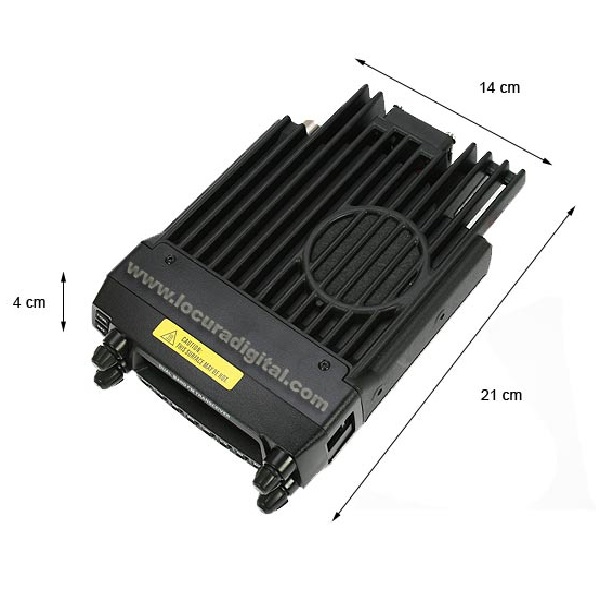

Dimension(WxHxD):139mm x40mmx212(D)mm
Weight(with bracket):1140g
Transmitter:
TX Range:136-174, 400-490 MHz (FM)
Output Power: 50 Watts(VHF )/40 Watts (UHF)
Frequency Modulation: 16k F3E (W)/ 11k F3E (N)
Adjacent Channel Power: >70dB (W) />60dB(N)
Hum&Noise: >40dB(W) />36dB(N)
Spurious Emission: >60dB
Audio Response: +1~ -3dB
Audio Distortion:<5%
Receiver:
RX Range: 220-260, 350-400, 400-490 MHz(FM)
108-180 MHz (AM or FM Mode)
118-134 MHz (AM Aircraft Band)
Reference Sensitivity: <=0.25μV(W)/0.35μV(N)
Adjacent Channel Selectivity: >70dB(W)/>60dB(N)
Intermodulation: >65dB (W)>60dB(N)
Spurious Response Rejection: >70dB
Audio Response: +1~ -3dB(0.3-3KHz)
Hum&Noise: >45dB(W)/40dB(N)
Audio Distortion: <=5%
Audio power output: >2W 10%
