Baofeng UV-82 Dual PTT 5W Portable Walkie Talkie VHF UHF Dual Band Handheld Transceiver Long Range Ham CB Two Way Radio
All the following products are compatible with Baofeng UV-82
Product Description:
| All of our items are Brand New | ||
| Model | BF-UV82 | |
| Dual band /dual display / dual standby | A/B band independent operation(UV UU VV) | |
| 128 groups channels storage | Shortcut menu operation mode | |
| Memory channels scan | Time/ Carrier / Search Operation | |
| Emergency Alarm | Indicator and flashlight Flashing Together | |
| Time-out Timer (TOT) | 15-600/Stepping 15 | |
| Squelch Level(SQL) | 0-9 Grade | |
| PTT & ANIID | ON OFF/0-9;A-F | |
| Voice companding | 50 CTCSS/104 DCS | |
| High/Low TX power selectable | Busy channel lock-out(BCLO) | |
| DTMF ST function | DT+ANI/ANI-ST/DT-ST/OFF | |
| Dual PTT | Yes | |
| Wide/Narrow Band(25kHz/12.5kHz) | Yes | |
| VOX function | Yes | OFF/1-10 |
| 1750HZ Tone | Yes | |
| Busy lockout function | Yes | |
| Scanning function | Yes | |
| Monitor function | Yes | |
| Time-out Timer (TOT) function | Yes | |
| LCD display | Yes | |
| Dual display | Yes | |
| Dual Standby | Yes | |
| Battery voltage display function | Yes | |
| Channel name display and editing functions | Yes | |
| Signal strength indicator | Yes | |
| Keypad lock function | Yes | |
| Built-in Led torch | Yes | |
| FM radio | Yes | 65-108MHZ(Reception) |
| Emergency alarm function | Yes | |
| Low battery alarm | Yes | |
| Power saving function | Yes | |
| High/Low TX power selectable | Yes | 5W/1W |
| ROGER SET | Yes | FULL/MGS |
| Chinese and English voice prompt | Yes | |
| Wire clone function | Yes | |
| PC software programmable | Yes | |
| General Specifications | ||
| Frequency stability | ±2.5ppm | |
| Frequency Step | 2.5/5/6.25/10/12.5/20/25KHz | |
| Antenna Impedance | 50ohm | |
| Working temperature | -20~+50°C | |
| Rated Voltage | 7.4V DC±10% | |
| Output power | <= 5W | |
| Battery type | Li-ion battery | |
| Battery capacity | 1800mAh | |
| Headphone jack type | 2 Pin Kenwood Plug | |
| Antenna Type | SMA-F(Female) | |
| Mode Of Operation | Simplex Or Semi-duplex | |
| Weight | 130g(approximate) | |
| Dimension(LXWXH) | 32X58X110mm(Not Antenna) | |
| Transmitter | ||
| Type Of Modulation | 16køF3E / 11køF3E | |
| Max frequency deviation | < 5kHz(Wide)/< 2.5kHz(Narrow) | |
| Emissioncurrent | <= 1.5A(5W) | |
| CTCSS / DCS | 0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow) | |
| Reception | ||
| Sensitivity | -122dBm(12dB SINAD) | |
| Audio Power | 1W | |
| Intermediation Distortion | <10% | |
| Inter modulation | >=65Db/>=60dB | |
| Spurious response | 65dB | |
| Adjacent channel selectivity( wide/narrow) | <-65dB(Wide) <-60dB(Narrow) | |
| Receiving Current | <=380mA | |

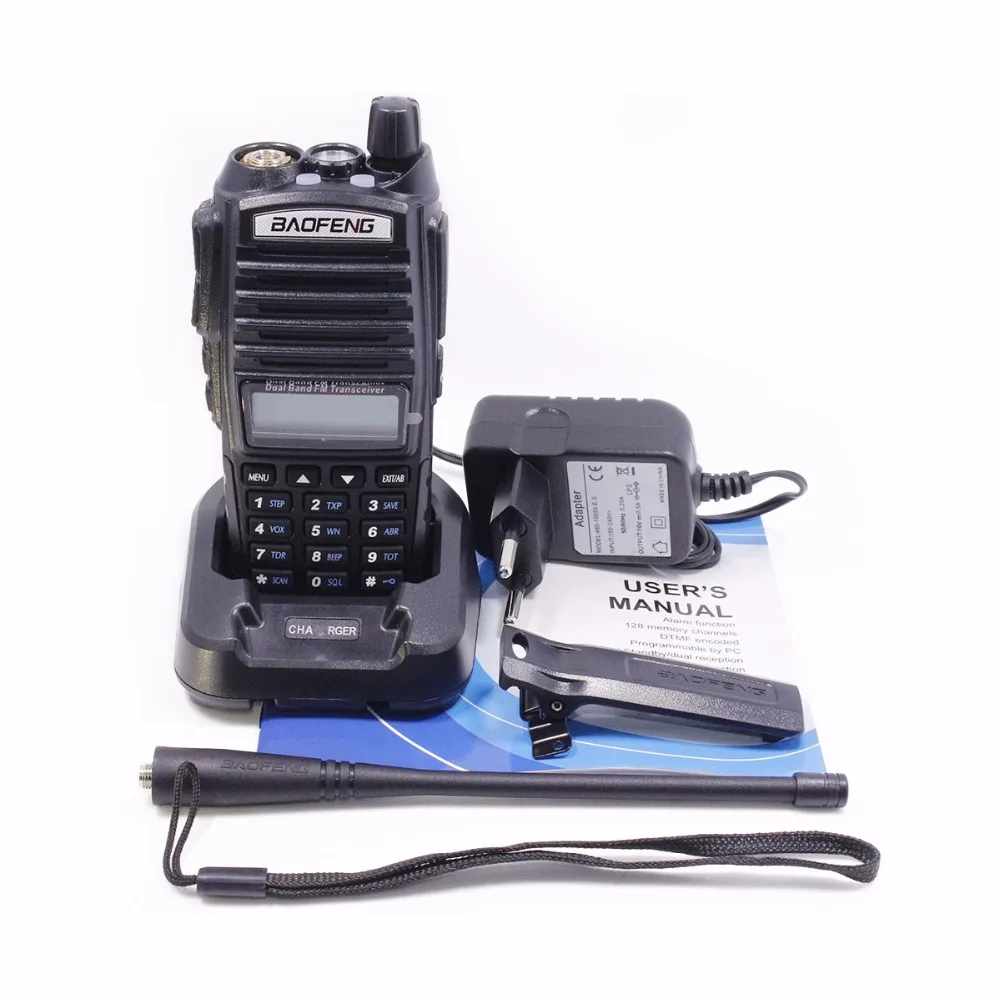

Package include:
1 X Portable radio
1 X Inductively loaded antenna

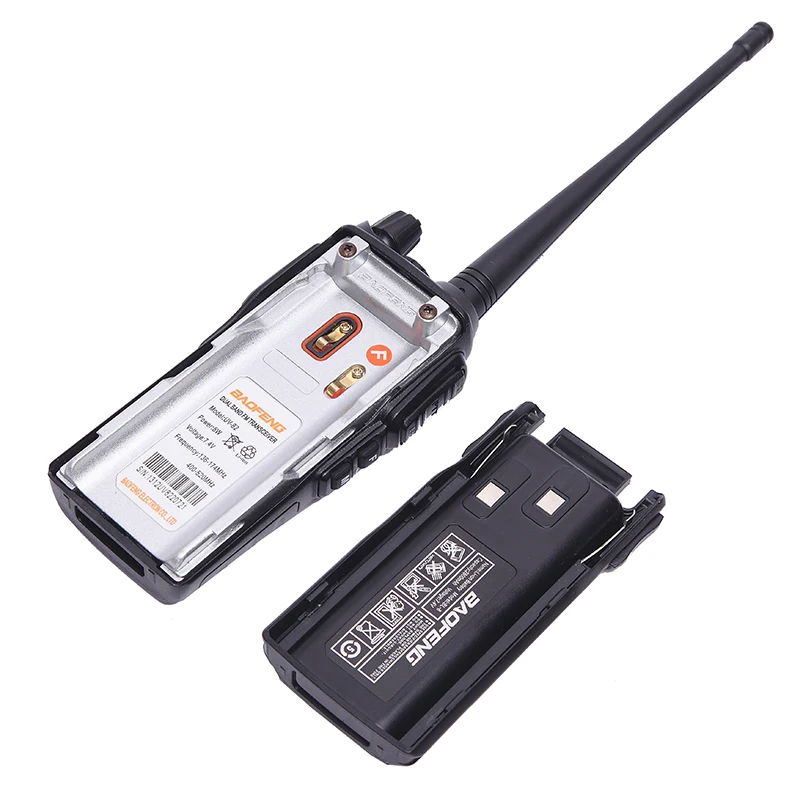

1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X The Sling
1 X User’s manual
And other accessory depend on your choice in the link
