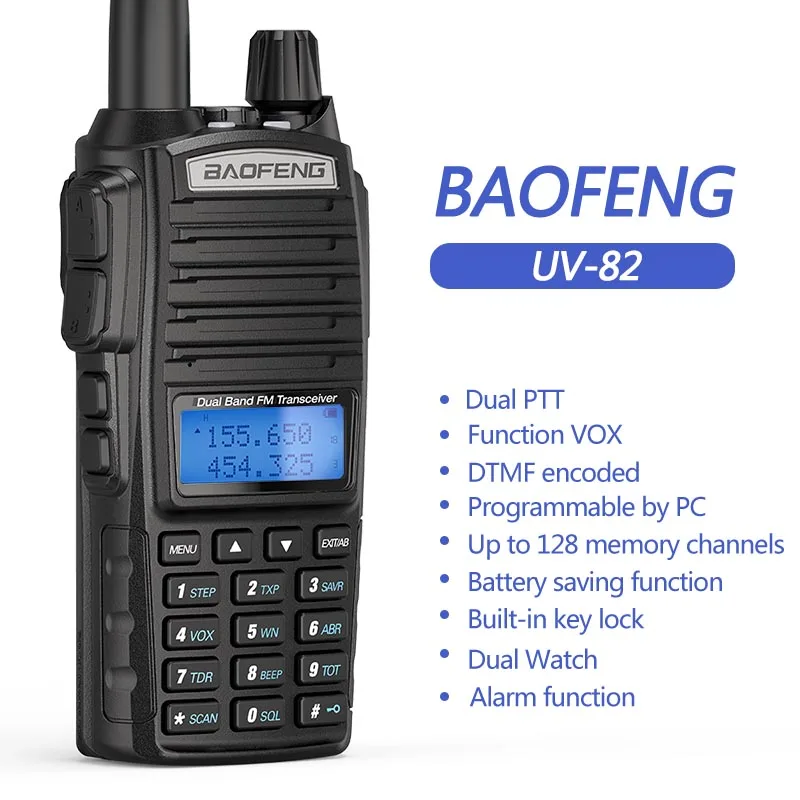

Baofeng UV-82 Plus 8W Tri-power 8/4/1W Walkie Talkie Dual Band Transceiver hunting CB Two way Radio

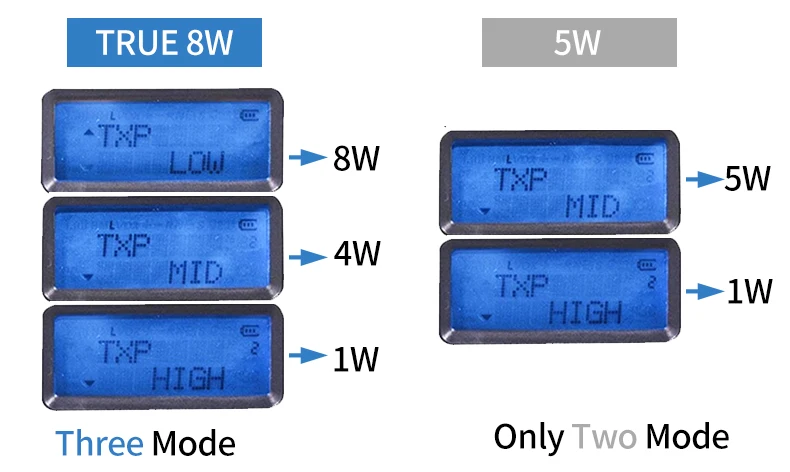

High / Med / Low Power Settings (8W/4W/1W); Frequency Range: VHF: 136-174 MHz(Rx/Tx). UHF: 400-520 MHz(Rx/Tx). Broad (Wide) / Narrowband (Narrow) Selectable Dual-band handheld transceiver with display function menu on the display “LCD”. Function Busy Channel Lock “BCLO”.
Brand New Baofeng 8W UV-82Plus Walkie Talkie Portable Interphone Pofung UV 82 Ham Radio Dual PTT Handheld Amateur Radio
Main features
|
01) 100% Brand new and high quality
|
|
02) Dual-band handheld transceiver with display function menu on the display “LCD”  Â
|
|
|
03) Frequency Mode / Channel mode
|
|
04)Â DTMFÂ encoded
|
|
05) Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable,Â
|
|
   CTCSS & DCS scanning and CTCSS & DCS direct input
|
|
06)Â VOXÂ Function
|
|
07) Battery Saving
|
|
08) Wide/Narrow Band Selection
|
|
09) Time-out Timer (TOT)
|
|
10) ATUO Keypad LockÂ
|
|
11) Busy Channel Lock Function
|
|
12) Priory Scanning Function
|
|
13) Low Battery Warning
|
|
14) LED Flashlight Â
|
|
15) High/Low RF Power Switchable
|
|
16)Â PCÂ programmable
|
|
17) Busy Channel Lock (BCLO)
|
|
18) Built-in key lock
|
|

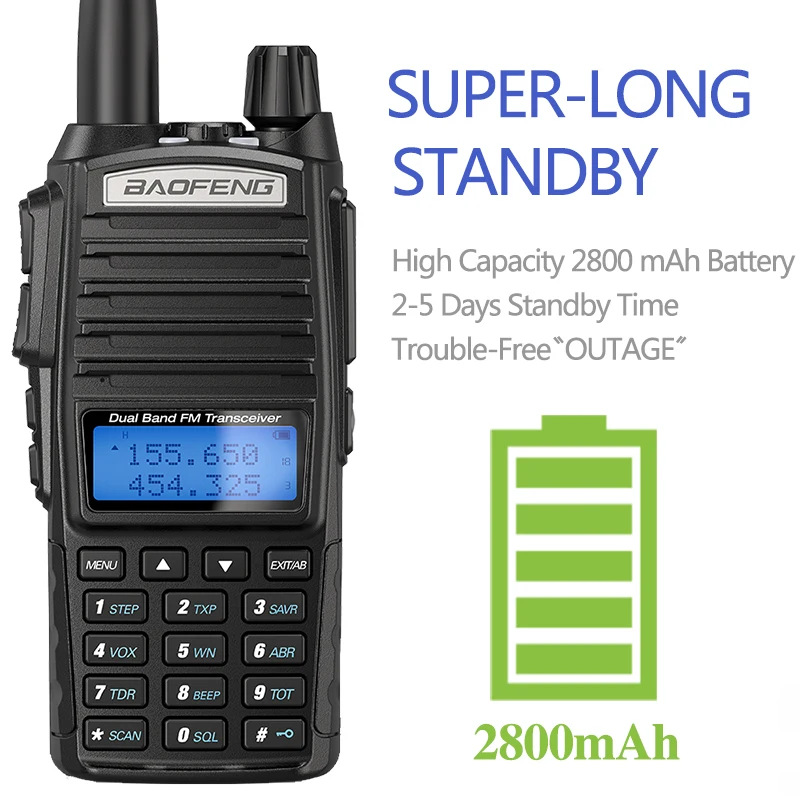

19) High-capacity battery: low self-discharge, no memory effect, high cycle life,Â
|
|
   with special design, can be used in hot and cold area
|
General
|
|
Frequency Range
|
|
|
136-174MHZ and 400-520MHZ (TX/RX)         Â
|
|
Channel No.
|
128
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna
|
High gain DualBand  antenna
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DCÂ 7.4V <2800MAH MAX
|
|
Mode of operationÂ
|
Simple or semi-duplex
|
|
Antenna :Â
|
SMAÂ -FemaleÂ
|
|
Earpiece / mic type :Â
|
K-Plug type
|
|

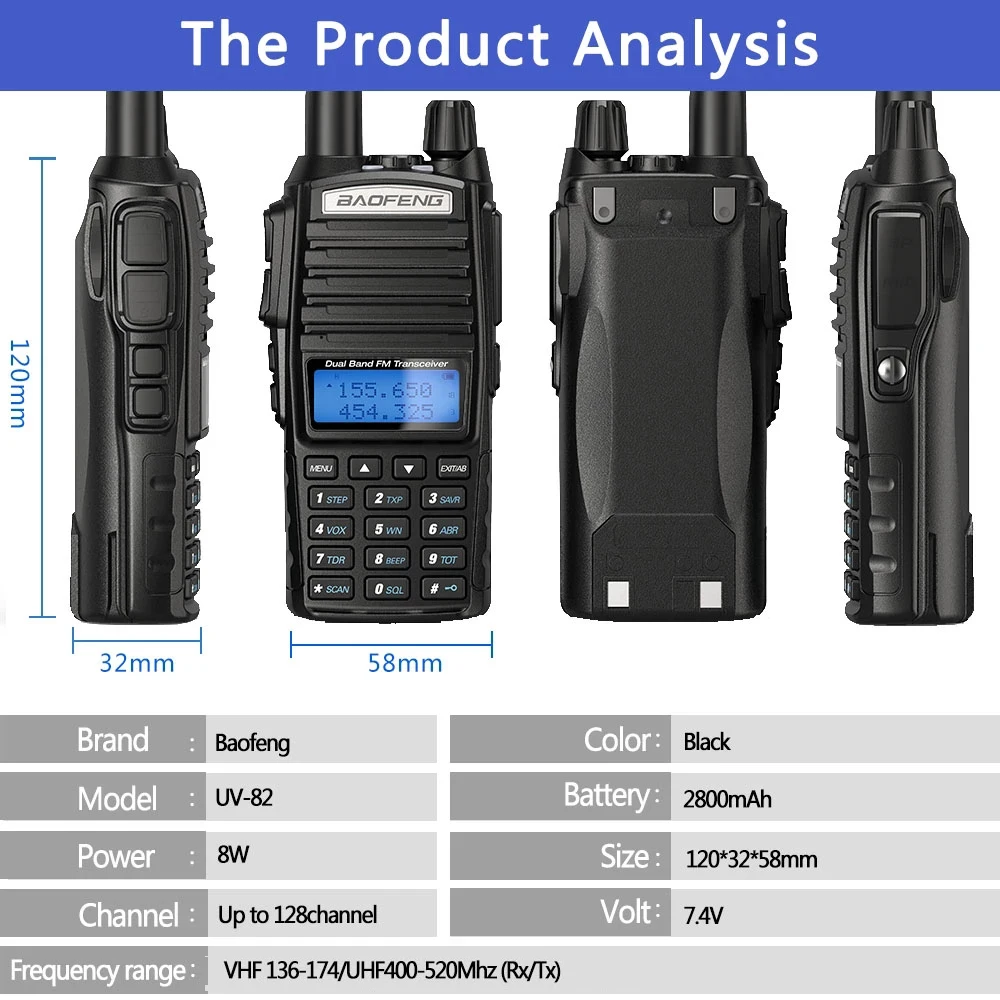

Dimension(W x H x D)
|
132*Â 60Â *35Â mm (not included antenna)
|
|
Weight
|
238g(including battery, antenna)
|
|
Power adapter
|
Input: AC100-240V, 50-60Hz;
|
|
Output: DC10V/500mA;
|
|
Plug Type: US/EU/UK/AU
|
|
Transmitter
|
|

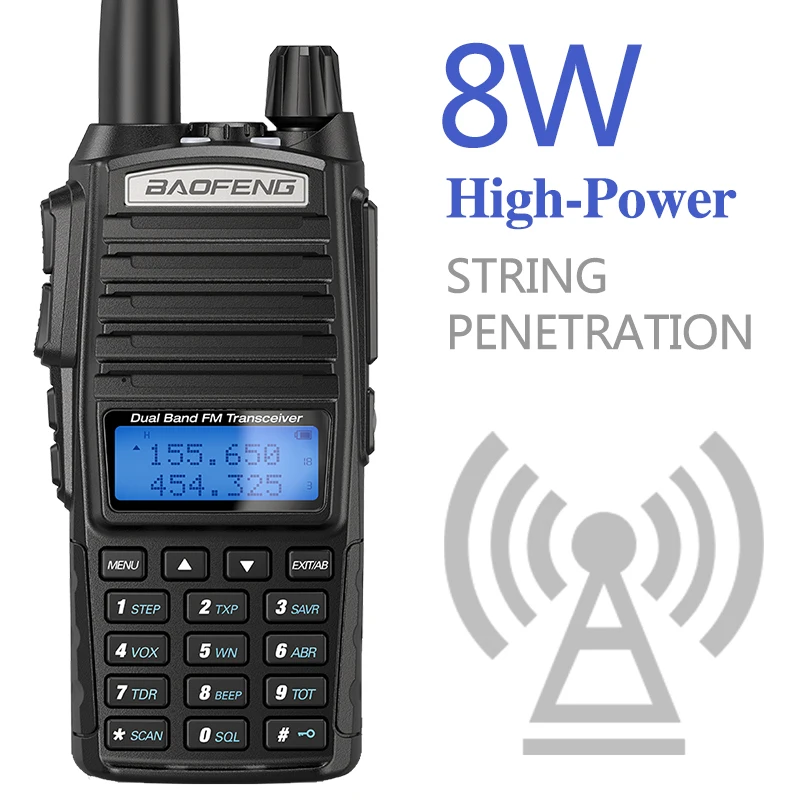

Output power
|
8W / 4W/1W (Max 8W)
|
|
Modulation Mode
|
16kΦF3E / 11kΦF3E
|
|
Maximum deviation
|
 5kHz(Wide) / 2.5kHz(Narrow)
|
|
Spurious Radiation
|
 7μW
|
|
Adjacent Ch. power
|
≤-65dB(Wide) / ≤-60dB(Narrow)
|
|
Pre-emphasis characteristics
|
6dB
|
|
Current
|
≤1.6A(5W)
|
|
CTCSS/DCSÂ deviation
|
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
|
|
Intermediation sensitivity
|
8-12mv
|
|
Intermediation distortion
|
≤10%
|
|
| General |
| Frequency Range |
65-108MHz(FM Receive only) |
| 136-174MHZ and 400-520MHZ (TX/RX) |
| Channel No. |
128 |
| Frequency Stability |
±2.5ppm |
| Antenna |
High gain DualBand  antenna |
| Antenna Impedance |
50Ω |
| Operating Voltage |
DCÂ 7.4V <2800MAH MAX |
| Mode of operation |
Simple or semi-duplex |
| Antenna : |
SMAÂ -Female |
| Earpiece / mic type : |
K-Plug type |
| Dimension(W x H x D) |
132*Â 60Â *35Â mm (not included antenna) |
| Weight |
238g(including battery, antenna) |
| Power adapter |
Input: AC100-240V, 50-60Hz; |
| Output: DC10V/500mA; |
| Plug Type: US/EU/UK/AU |
| Transmitter |
| Output power |
8W / 4W/1W (Max 8W) |
| Modulation Mode |
16kΦF3E / 11kΦF3E |
| Maximum deviation |
5kHz(Wide)Â /Â 2.5kHz(Narrow) |
| Spurious Radiation |
7ÎĽW |
| Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics |
6dB |
| Current |
≤1.6A(5W) |
| CTCSS/DCSÂ deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity |
8-12mv |
| Intermediation distortion |
≤10% |
|

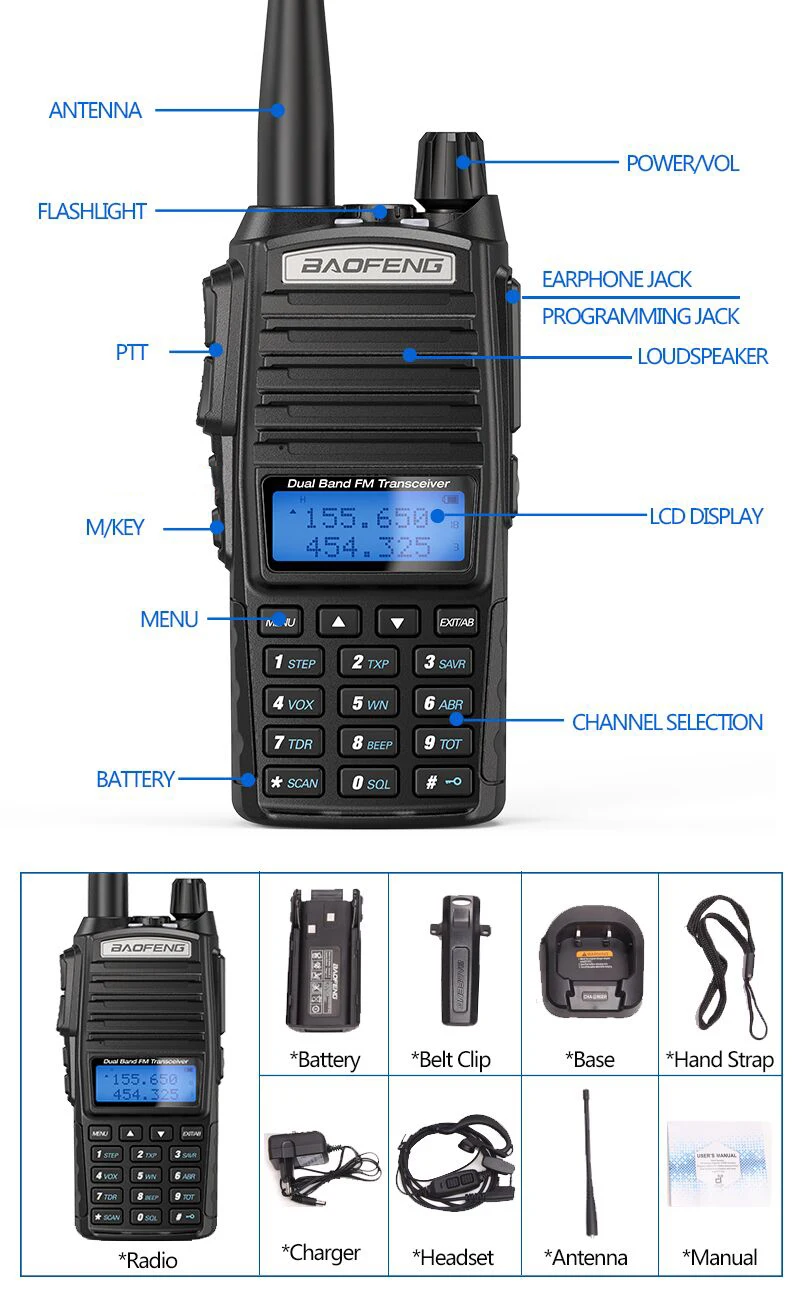

Package:
1 X Portable radio
1 X Antenna
1 X Li-ion battery
1 X LI-ion charger
1 X Belt clip
1 X The Sling
1 X User’s manual
And other accessory depend on your choice in the link
