QYT CB-58 4W 12V26.965-27.405MHz CB Walkie Talkie AM/FM Handheld Citizen Band 40 Channel CB 27MHz Two Way Radio
Features:
-40 Channel Multiband CB
(Incorporates 40UK/40EU channels plus other European and North American frequency bands)

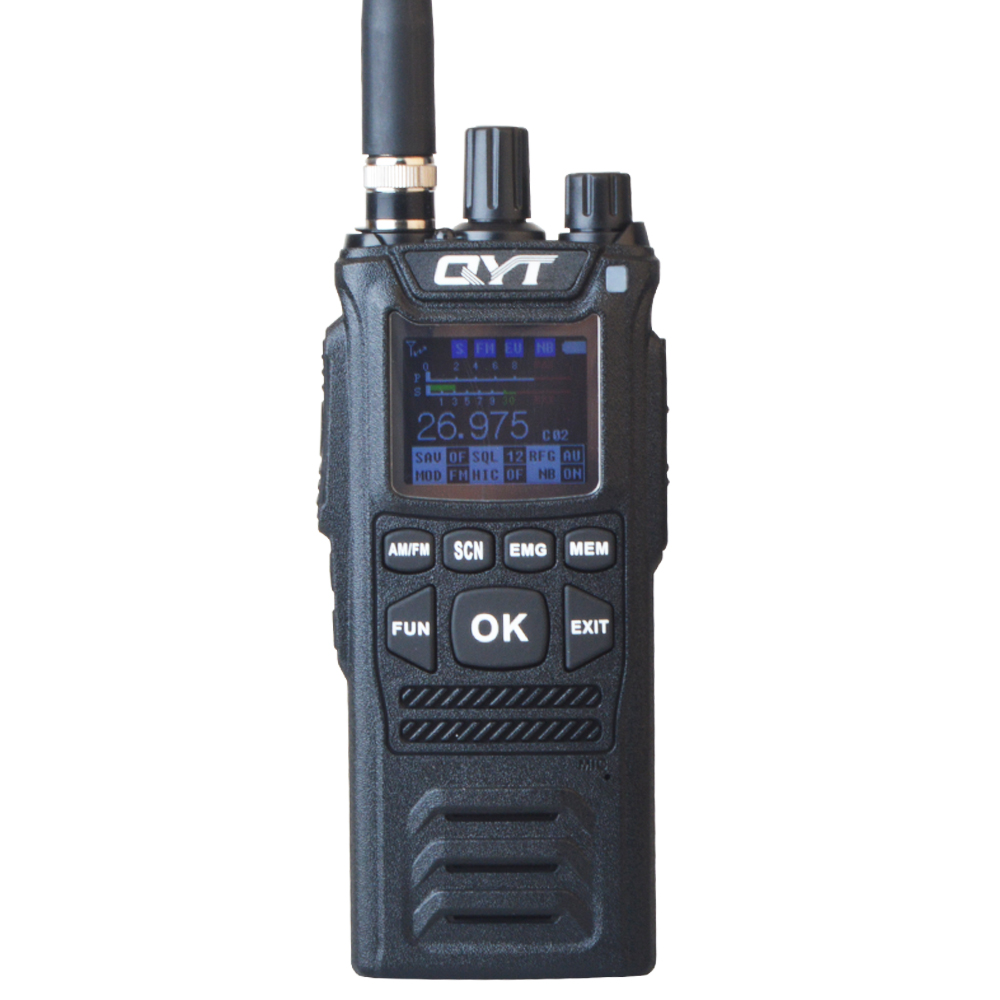

-TFT LCD Display
-8 Optional Channels
-CTCSS/DCS
-DTMF
-TOT
-Automatic Squelch function
-Squelch level adjustable
-Receive gain control adjustment
-Editable channel scan
-Shortcut channel 9/19
-NB/ANL wave filter
-Audio high frequency cancellation
-Keyboard Lock
-4100mAh 12V Li-ion Battery pack
Working time: 10-15 hours (Approximately), Standby Time: About 2-3days, Charging Time: 12-16 hours (Approximately)
Channel & Frequency Sheet:
|
Channel |
EU |
CE |
U |
PL |
I2 |
DE |
IN |
|
|
1-40 |
1-40 |
1-40 |
1-40 |
1-40 |
1-40 |
41-80 |
1-27 |
|
|
FM=4W |
FM=4W |
FM=4W |
FM=4W |
FM=4W |
FM=4W |
FM=4W |
FM=4W |
|
|
AM=4W |
AM=4W |
AM=4W |
AM=4W |
AM=4W |
||||
|
1 |
26.96500 |
26.96500 |
26.96500 |
26.96000 |
26.96500 |
26.96500 |
26.56500 |
26.96500 |
|
2 |
26.97500 |
26.97500 |
26.97500 |
26.97000 |
26.97500 |
26.97500 |
26.57500 |
26.97500 |
|
3 |
26.98500 |
26.98500 |
26.98500 |
26.98000 |
26.98500 |
26.98500 |
26.58500 |
26.98500 |
|
4 |
27.00500 |
27.00500 |
27.00500 |
27.00000 |
27.00500 |
27.00500 |
27.59500 |
27.00500 |
|
5 |
27.01500 |
27.01500 |
27.01500 |
27.01000 |
27.01500 |
27.01500 |
26.60500 |
27.01500 |
|
6 |
27.02500 |
27.02500 |
27.02500 |
27.02000 |
27.02500 |
27.02500 |
26.61500 |
27.02500 |
|
7 |
27.03500 |
27.03500 |
27.03500 |
27.03000 |
27.03500 |
27.03500 |
26.62500 |
27.03500 |
|
8 |
27.05500 |
27.05500 |
27.05500 |
27.05000 |
27.05500 |
27.05500 |
26.63500 |
27.05500 |
|
9 |
27.06500 |
27.06500 |
27.06500 |
27.06000 |
27.06500 |
27.06500 |
26.64500 |
27.06500 |
|
10 |
27.07500 |
27.07500 |
27.07500 |
27.07000 |
27.07500 |
27.07500 |
26.65500 |
27.07500 |
|
11 |
27.08500 |
27.08500 |
27.08500 |
27.08000 |
27.08500 |
27.08500 |
26.66500 |
27.08500 |
|
12 |
27.10500 |
27.10500 |
27.10500 |
27.10000 |
27.10500 |
27.10500 |
26.67500 |
27.10500 |
|
13 |
27.11500 |
27.11500 |
27.11500 |
27.11000 |
27.11500 |
27.11500 |
26.68500 |
27.11500 |
|
14 |
27.12500 |
27.12500 |
27.12500 |
27.12000 |
27.12500 |
27.12500 |
26.69500 |
27.12500 |
|
15 |
27.13500 |
27.13500 |
27.13500 |
27.13000 |
27.13500 |
27.13500 |
26.70500 |
27.13500 |
|
16 |
27.15500 |
27.15500 |
27.15500 |
27.15000 |
27.15500 |
27.15500 |
26.71500 |
27.15500 |
|
17 |
27.16500 |
27.16500 |
27.16500 |
27.16000 |
27.16500 |
27.16500 |
26.72500 |
27.16500 |
|
18 |
27.17500 |
27.17500 |
27.17500 |
27.17000 |
27.17500 |
27.17500 |
26.73500 |
27.17500 |
|
19 |
27.18500 |
27.18500 |
27.18500 |
27.18000 |
27.18500 |
27.18500 |
26.74500 |
27.18500 |
|
20 |
27.20500 |
27.20500 |
27.20500 |
27.20000 |
27.20500 |
27.20500 |
26.75500 |
27.20500 |
|
21 |
27.21500 |
27.21500 |
27.21500 |
27.21000 |
27.21500 |
27.21500 |
26.76500 |
27.21500 |
|
22 |
27.22500 |
27.22500 |
27.22500 |
27.22000 |
27.22500 |
27.22500 |
26.77500 |
27.22500 |
|
23 |
27.25500 |
27.25500 |
27.25500 |
27.23000 |
27.25500 |
27.25500 |
26.78500 |
27.25500 |
|
24 |
27.23500 |
27.23500 |
27.23500 |
27.24000 |
27.24500 |
27.23500 |
26.79500 |
27.23500 |
|
25 |
27.24500 |
27.24500 |
27.24500 |
27.25000 |
27.26500 |
27.24500 |
26.80500 |
27.24500 |
|
26 |
27.26500 |
27.26500 |
27.26500 |
27.26000 |
26.87500 |
27.26500 |
26.81500 |
27.26500 |
|
27 |
27.27500 |
27.27500 |
27.27500 |
27.27000 |
26.88500 |
27.27500 |
26.82500 |
27.27500 |
|
28 |
27.28500 |
27.28500 |
27.28500 |
27.28000 |
26.89500 |
27.28500 |
26.83500 |
|
|
29 |
27.29500 |
27.29500 |
27.29500 |
27.29000 |
26.90500 |
27.29500 |
26.84500 |
|
|
30 |
27.30500 |
27.30500 |
27.30500 |
27.30000 |
26.91500 |
27.30500 |
26.85500 |
|
|
31 |
27.31500 |
27.31500 |
27.31500 |
27.31000 |
26.92500 |
27.31500 |
26.86500 |
|
|
32 |
27.32500 |
27.32500 |
27.32500 |
27.32000 |
26.93500 |
27.32500 |
26.87500 |
|
|
33 |
27.33500 |
27.33500 |
27.33500 |
27.33000 |
26.94500 |
27.33500 |
26.88500 |
|
|
34 |
27.34500 |
27.34500 |
27.34500 |
27.34000 |
26.95500 |
27.34500 |
26.89500 |
|
|
35 |
27.35500 |
27.35500 |
27.35500 |
27.35000 |
26.85500 |
27.35500 |
26.90500 |
|
|
36 |
27.36500 |
27.36500 |
27.36500 |
27.36000 |
26.86500 |
27.36500 |
26.91500 |
|
|
37 |
27.37500 |
27.37500 |
27.37500 |
27.37000 |
27.37500 |
26.92500 |
||
|
38 |
27.38500 |
27.38500 |
27.38500 |
27.38000 |
27.38500 |
26.93500 |
||
|
39 |
27.39500 |
27.39500 |
27.39500 |
27.39000 |
27.39500 |
26.94500 |
||
|
40 |
27.40500 |
27.40500 |
27.40500 |
27.40000 |
27.40500 |
26.95500 |
||
Specifications:
|
GENERAL |
||
|
Modulation Mode |
AM/FM |
|
|
Frequency Range |
26.965-27.405MHz |
|
|
Frequency Tolerance |
±5.0ppm |
|
|
Input Voltage |
12V |
|
|

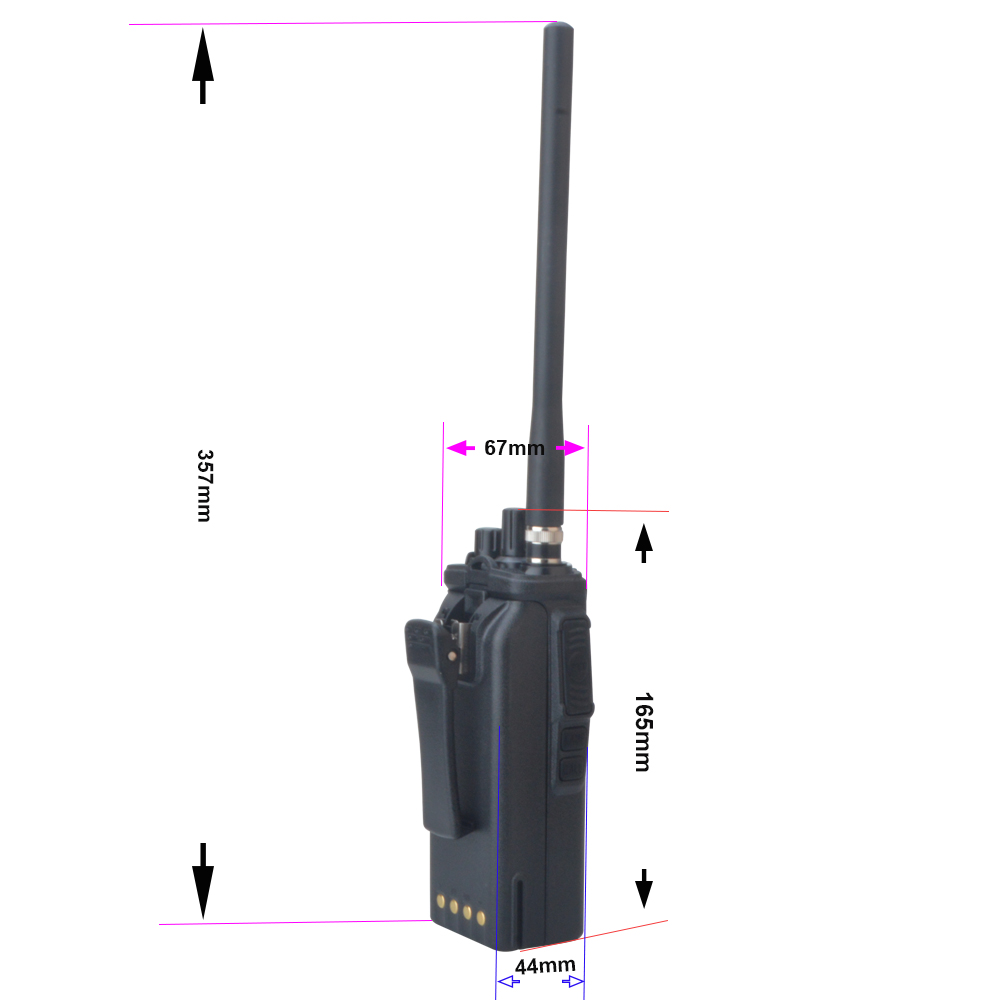

Dimensions |
165(W)*67(D)*44(H) mm |
|
|
Weight |
Approx. 444.5g |
|
|
Frequency Control |
PLL Synthesizer |
|
|
Operating Temperature Range |
-20°c to |
|
|
Current Drain |
Transmit |
2A Max |
|
Receive |
Squelched 0.3A |
|
|
VOL Max |
0.8A |
|
|
Antenna COnnector |
BNC |
|
|
Transmitter |
||
|
Power Output |
4 Watts FM/AM |
|
|
Transmission Interference |
Inferior to 4nW(-54dBm) |
|
|
Frequency Response |
300-3000Hz |
|
|
Modulated Signal distortion |
Inferior to 5% |
|
|
Output Impedance |
50 Ohms |
|
|
Receiver |
||
|
Sensitivity |
Less than 1uV for 10dB (S+N)/N |
|
|
Image Rejection |
70dB |
|
|
Adjacent Channel Rejection |
60dB |
|
|
IF Frequencies |
1st 10.695MHz |
|
|
2nd 455KHz |
||
|
Automatic Gain Control (AGC |
Less than 10dB change in audio |
|
|
Output for inputs from 10 to 50000uV |
||
|
Squelch |
Less than 1uV |
|
|
Audio Output Power |
3 watts into 8 ohms |
|
|
Frequency Response |
300-3000Hz |
|

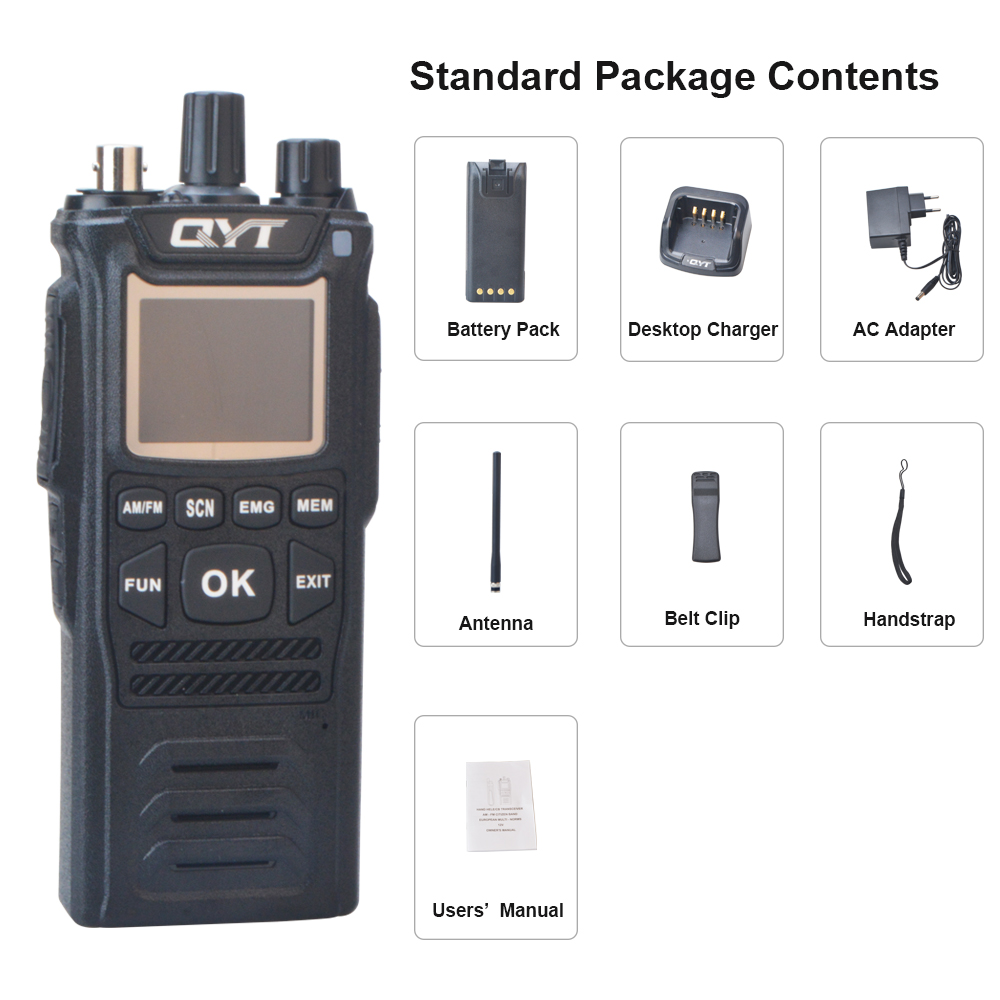

Standard Package Contents:
1× CB-58 CB Radio
1×4100mAh 12V Li-ON Battery Pack
1× BNC Antenna
1× Desktop Charger
1× AC Adapter
1× Belt Clip
1× Hand strap
1× English User Manual

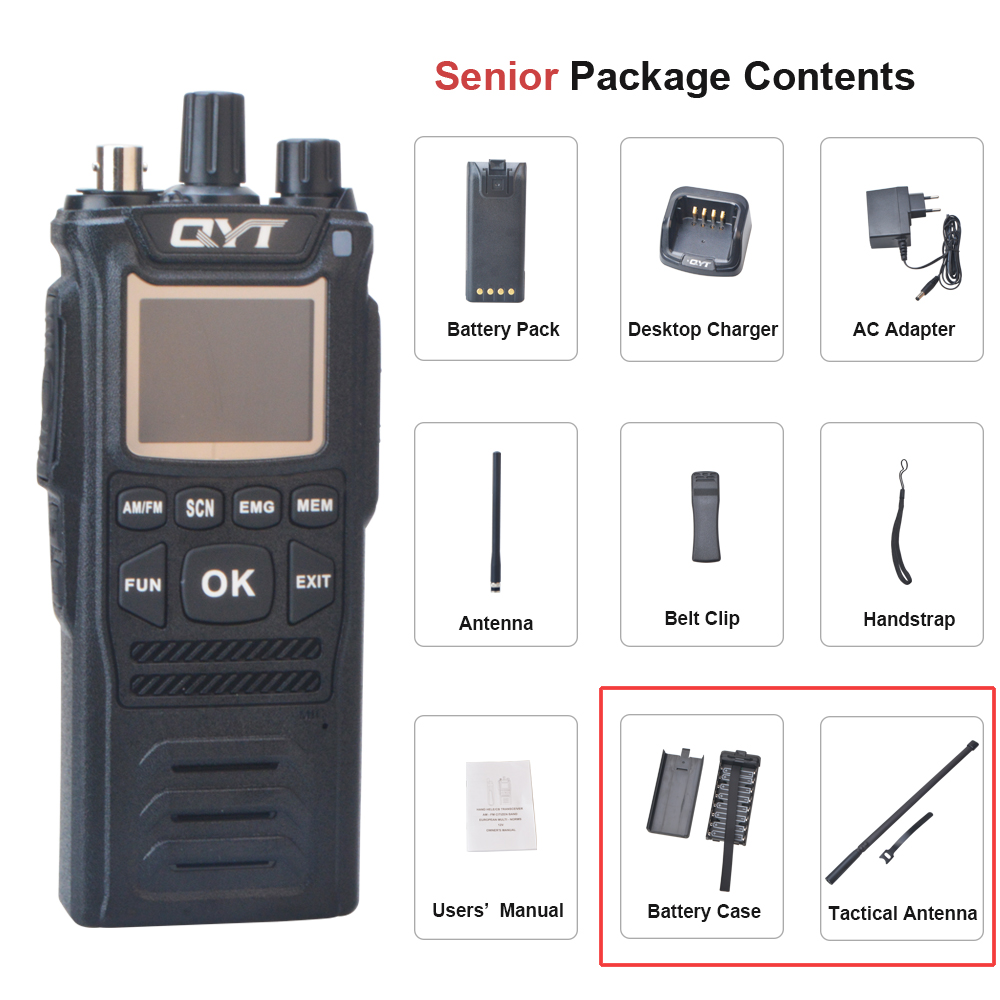

Senior Package Contents:
1× CB-58 CB Radio
1×4100mAh 12V Li-ON Battery Pack
1× BNC Antenna
1× Desktop Charger
1× AC Adapter
1× Belt Clip
1× Hand strap
1× English User Manual
1× AA Battery Case

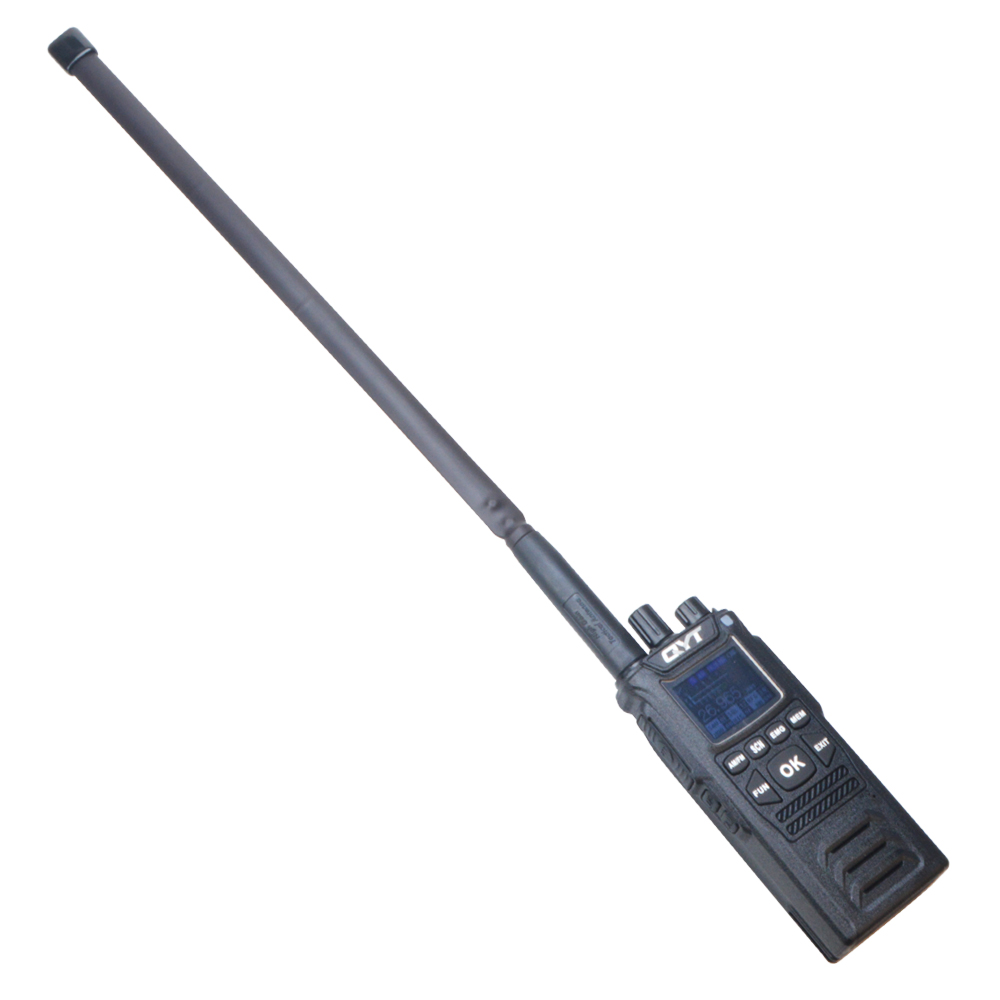

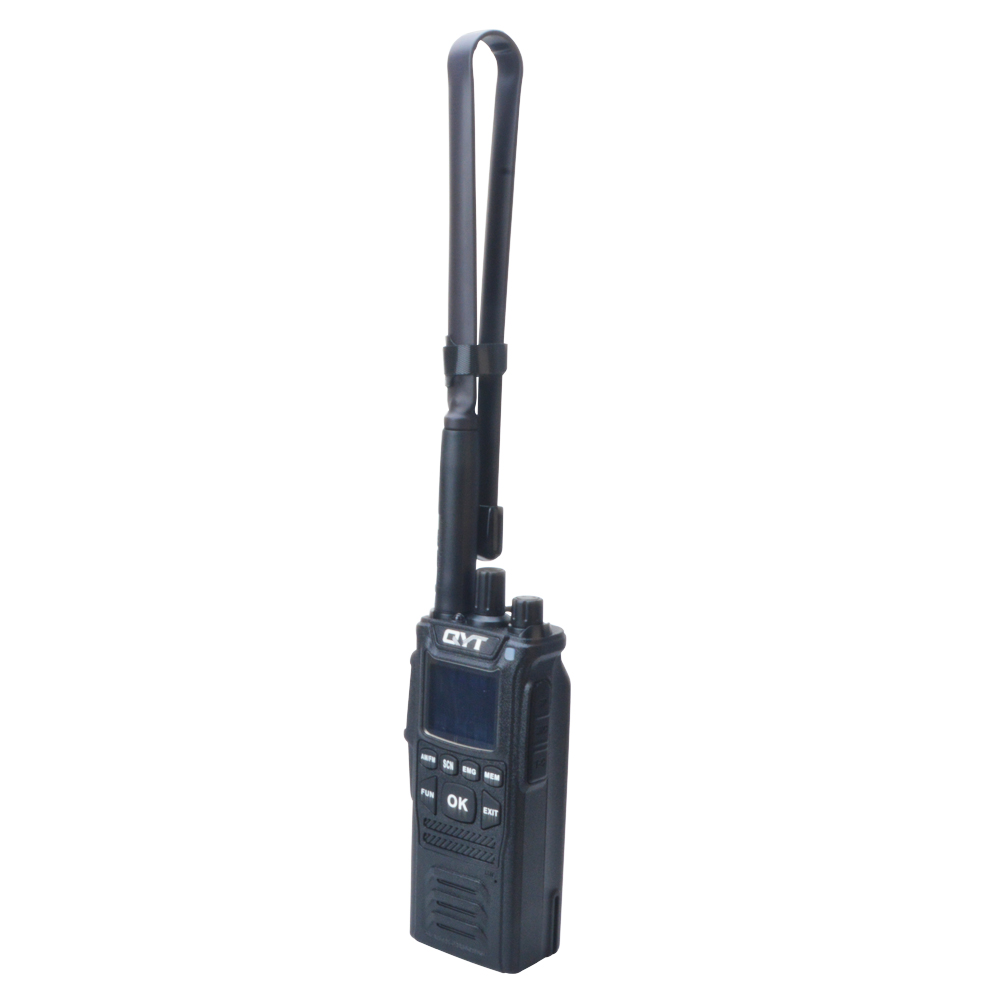

1× High Gain 47cm foldable tactical CB Antenna

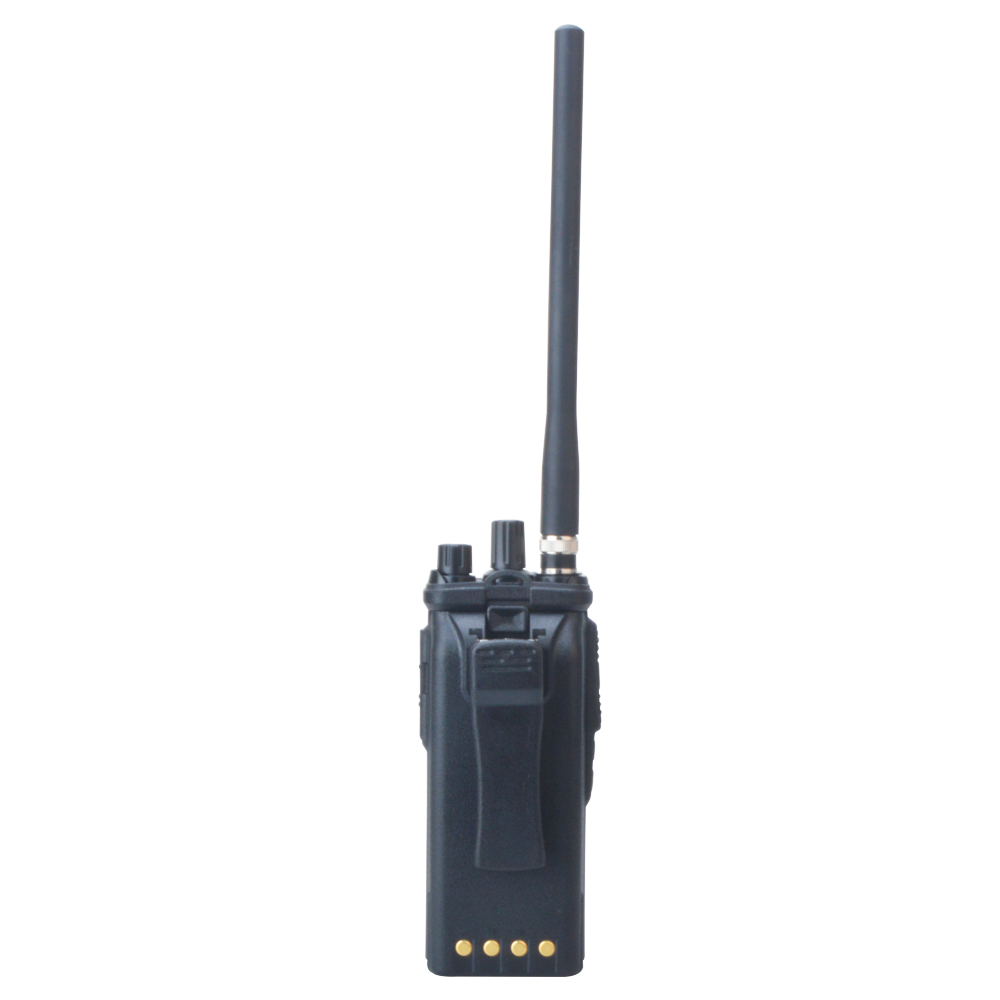

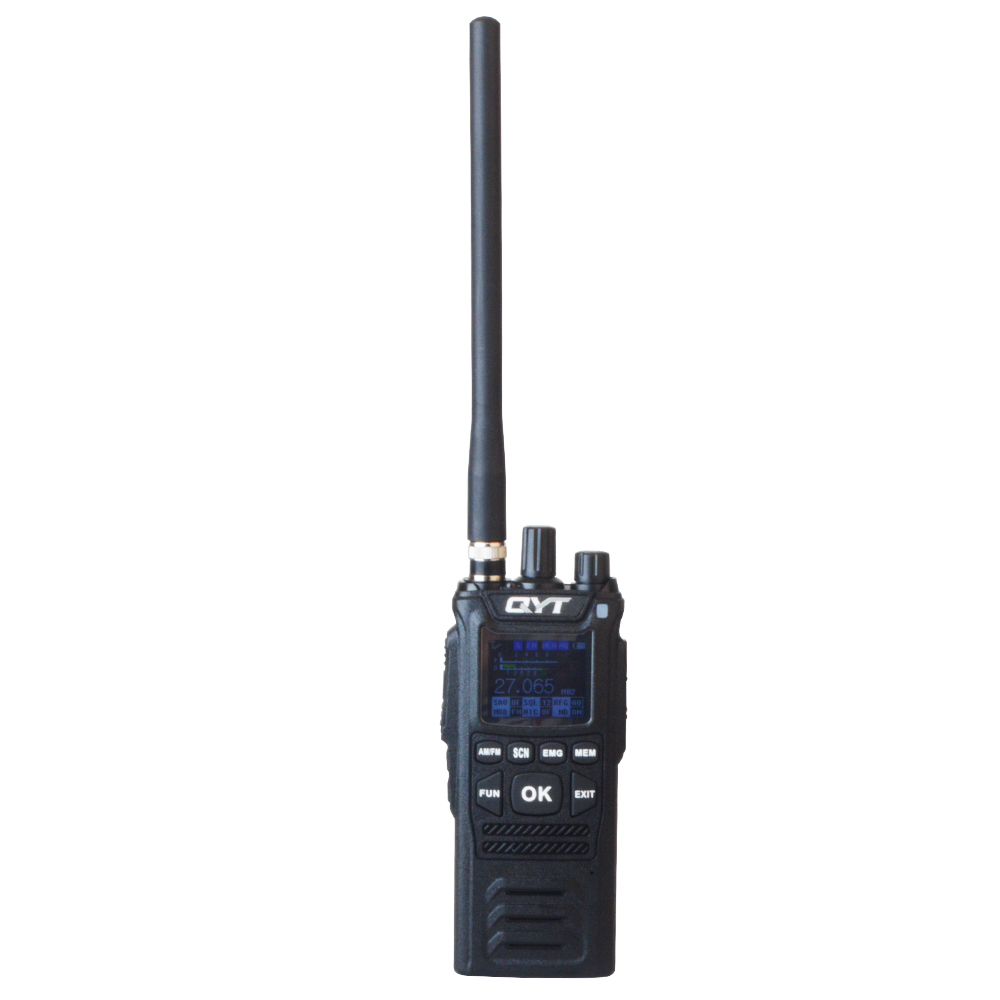

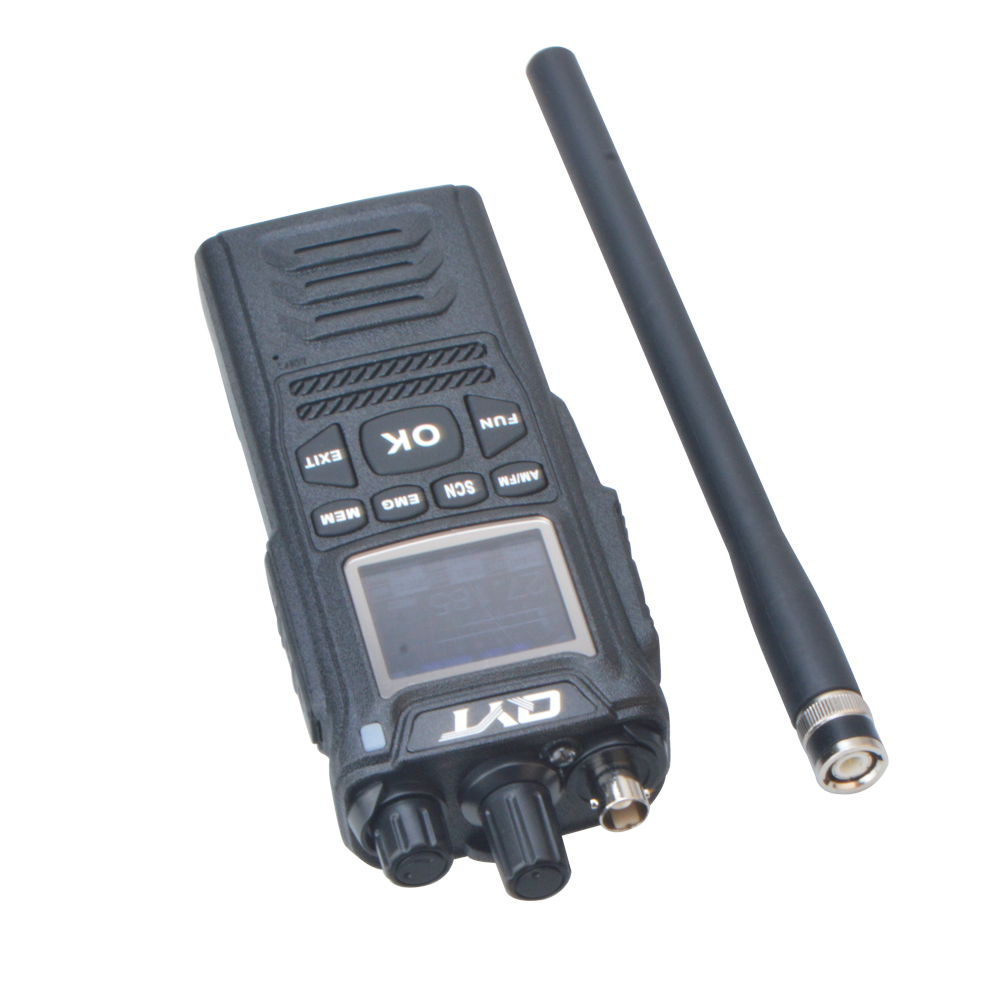

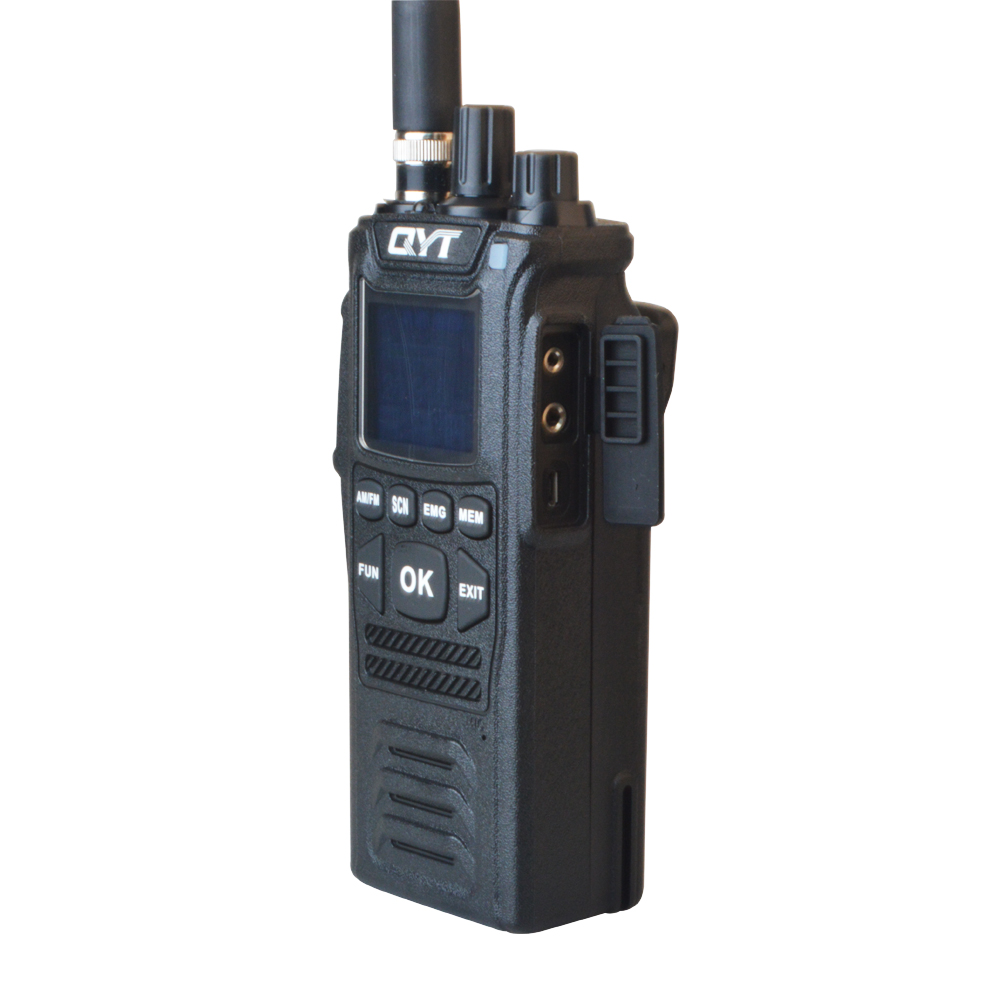

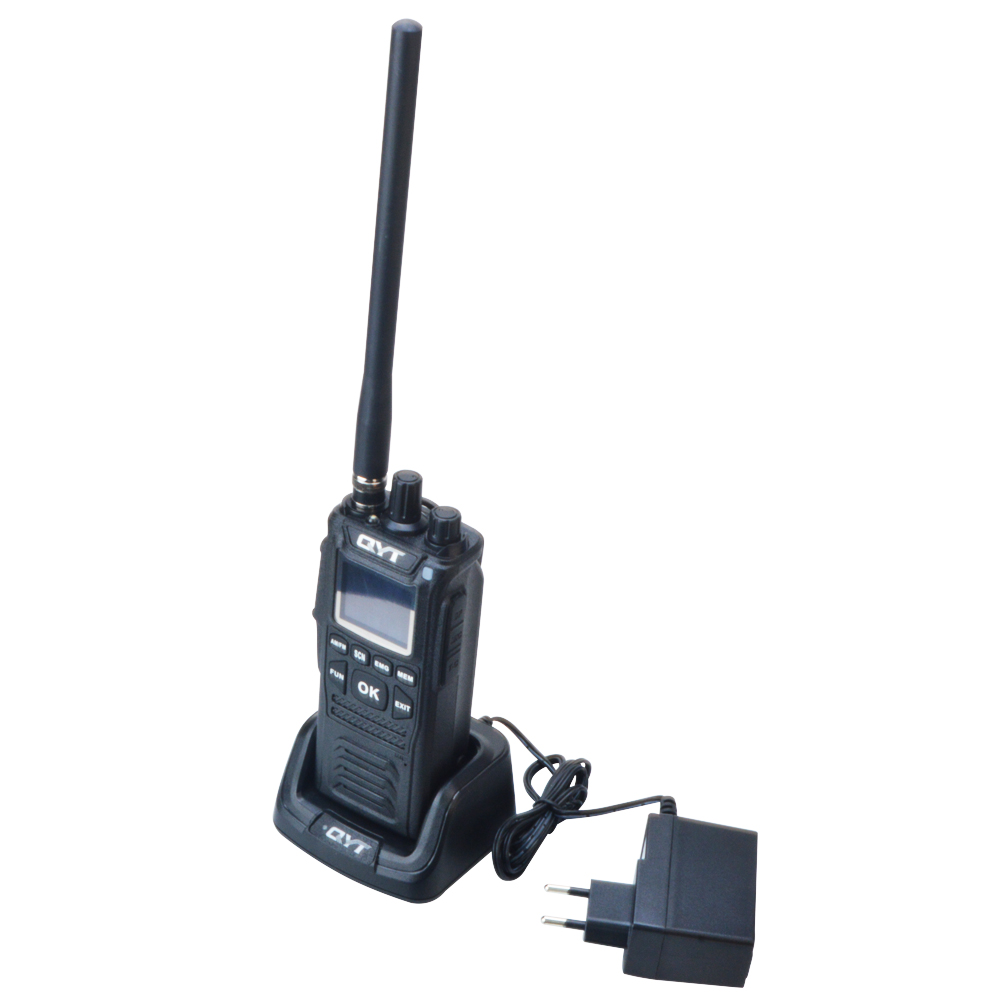

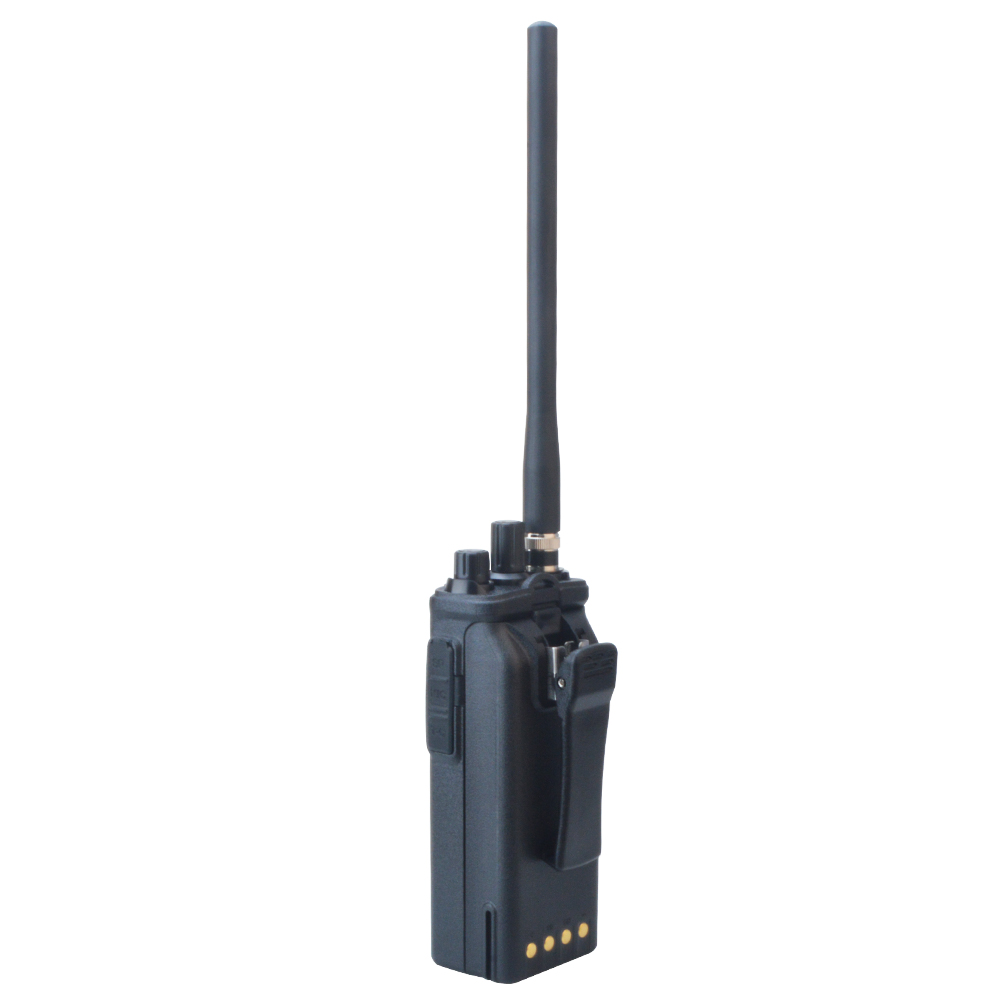

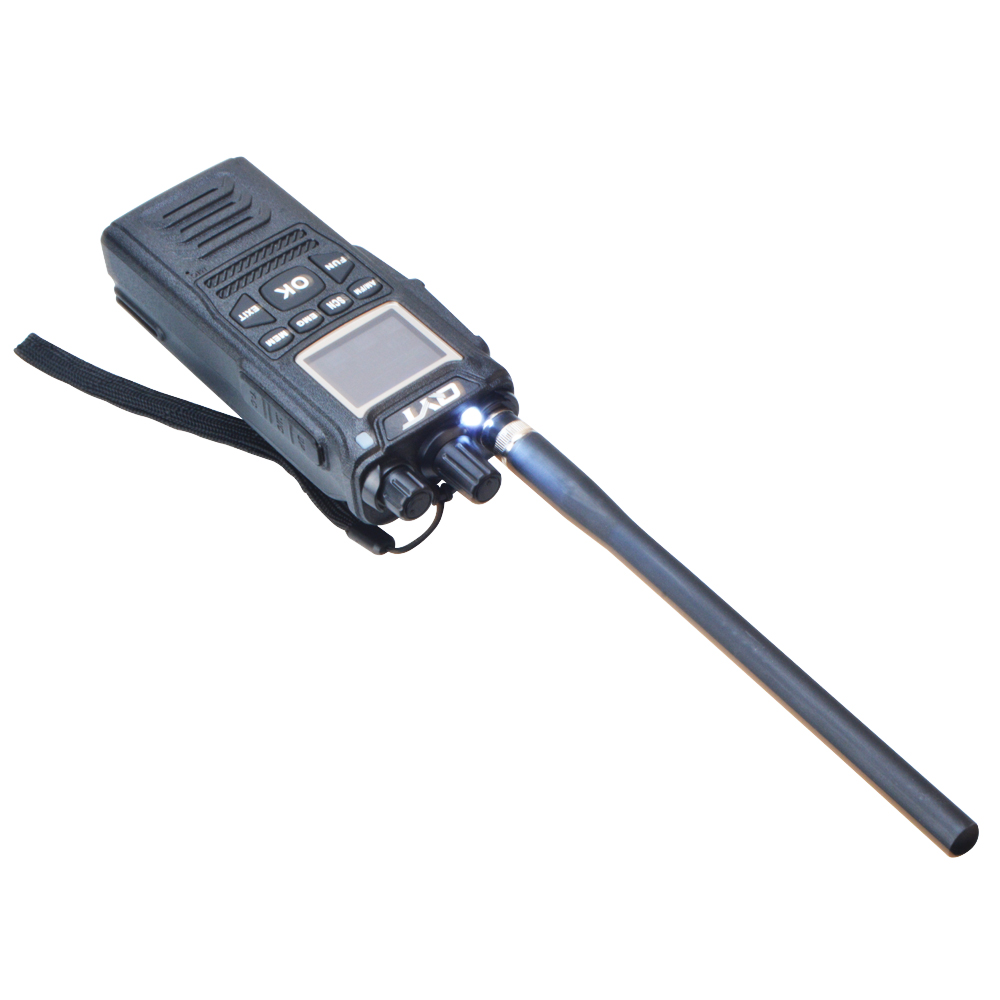

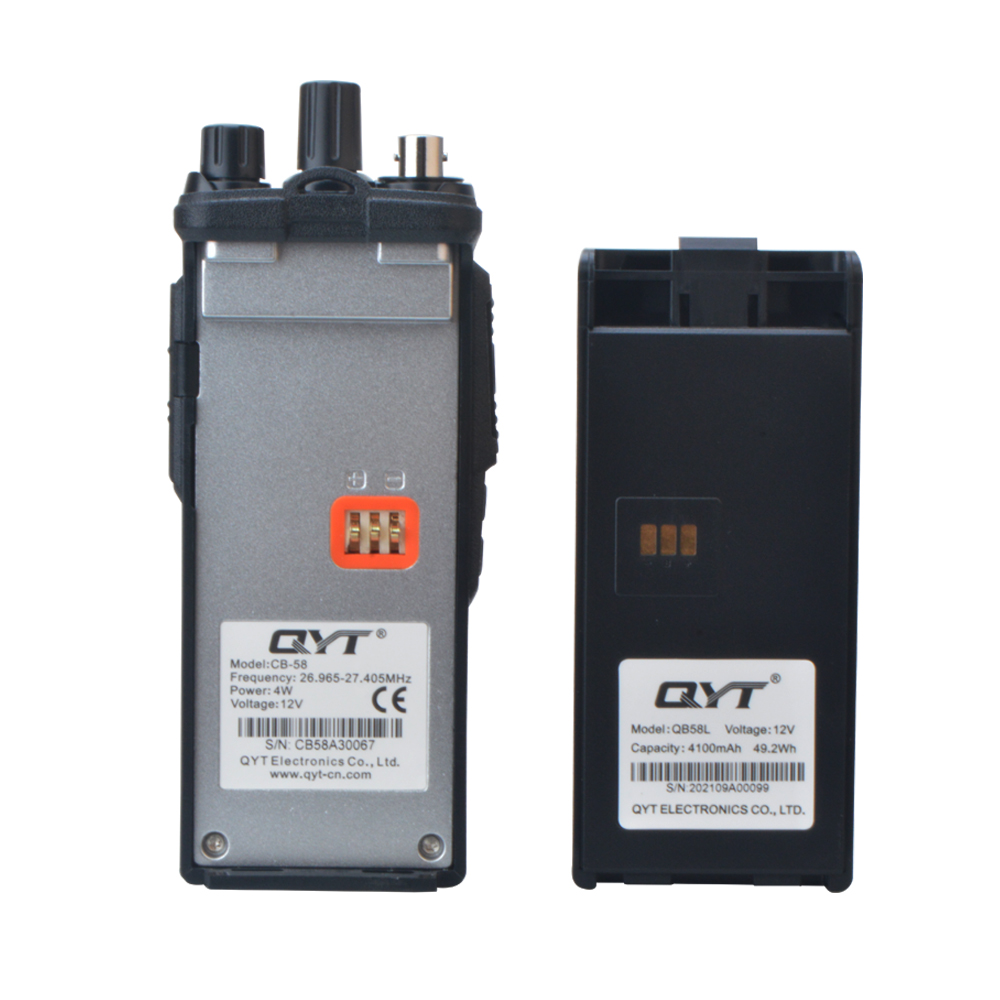

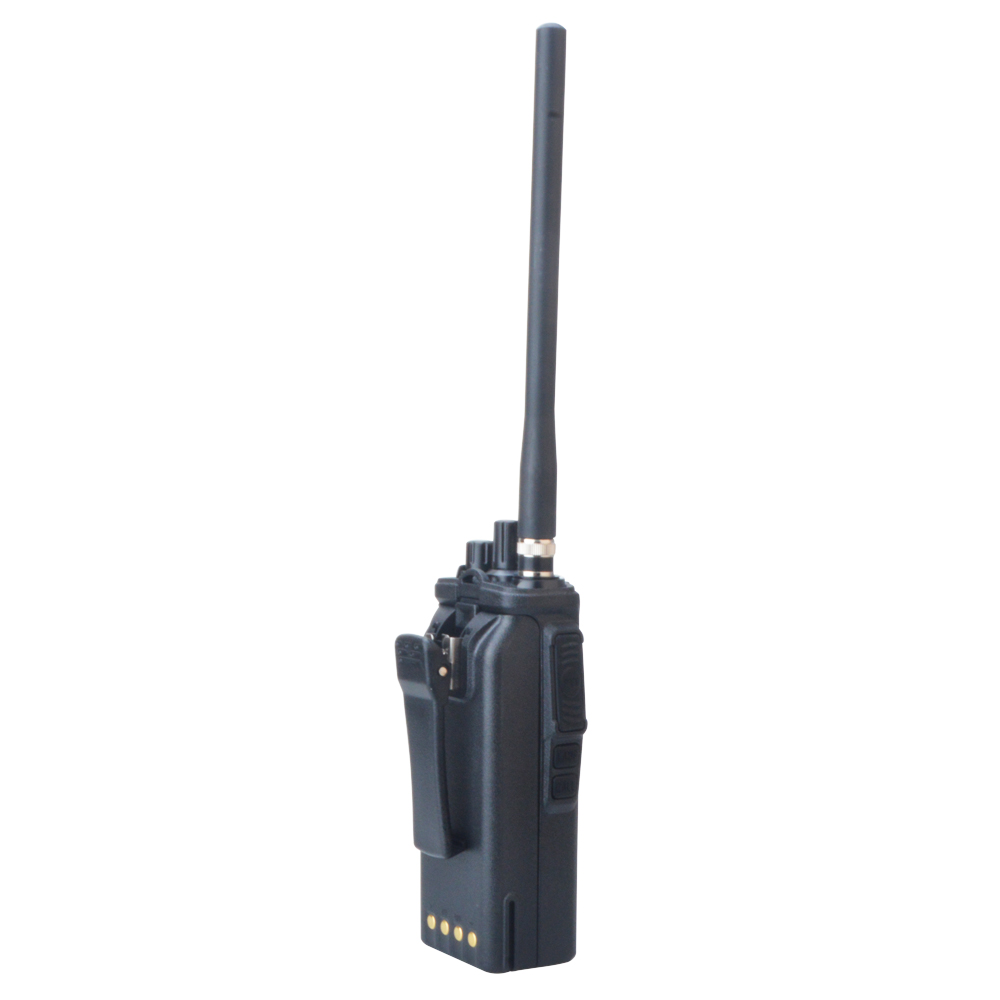

Photos:
