SR-629 Duplex Repeater Controller
The SR-629 is a multi-function and cheaper device that connects any handheld or mobile radio.

By equipment and so on our assemble the build, the new generation
trunk-line board,the internal structure design are finer, the outward appearance is
more attractive. Beside scan provide a the basic repeater function which has
following the receiver transmitter,furthermore has the Simple connection,
provides the more ideal 2-way radio conversation region for you, causes you
maintains the relation in the bigger operating region.

When the radio units are connected, the received signal on a radio unit will
be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes

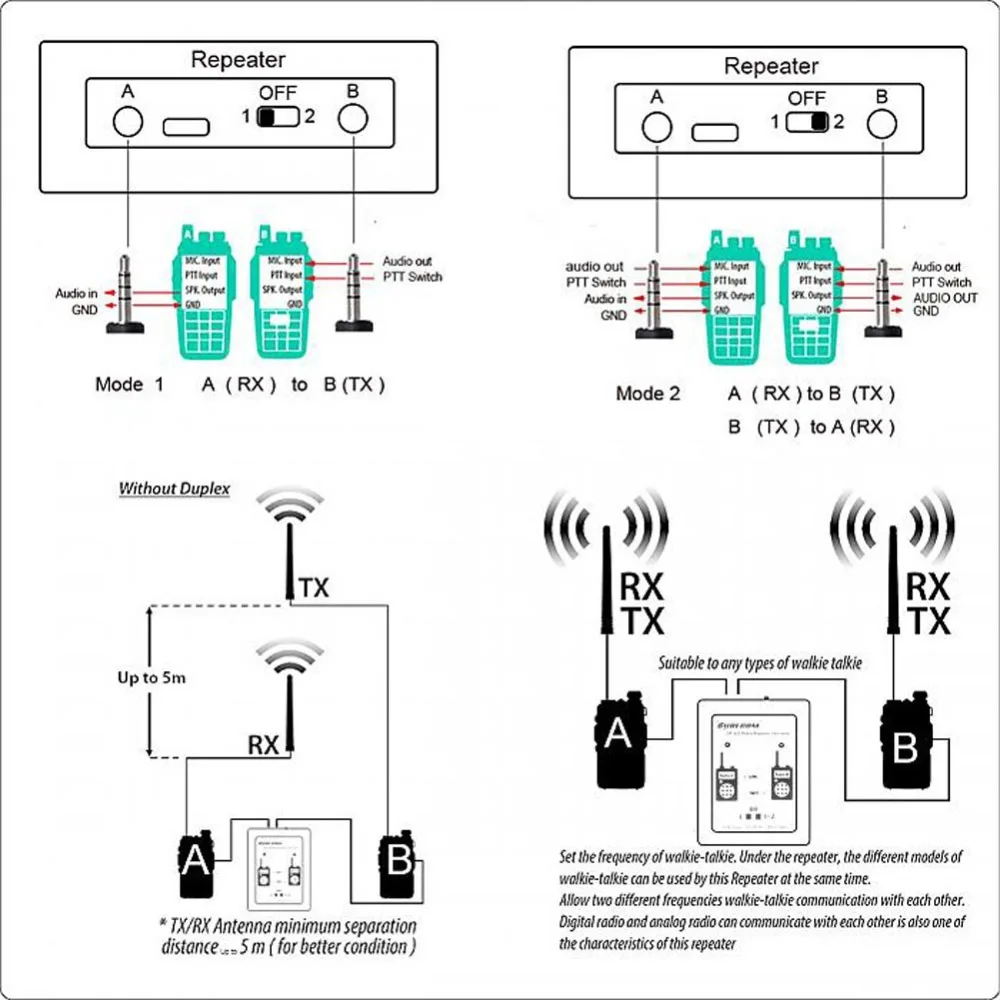

Mode 1: When Radio A is RX, control to Radio B will TX.
When Radio B is RX,  control no Funtion

Mode 2 : When Radio A is RX, control to Radio B will TX.
When Radio B is RX, control to Radio A will TX.

The purpose can be done in two different places and using different
frequency bands intercom, through our mutual communication relay station.

This is a radio cross band duplex repeater controller. It is an easy of operation
and cost effective and highly flexible platform for setting up bi-direction
cross band duplex repeater with mobile radio and handheld radio.

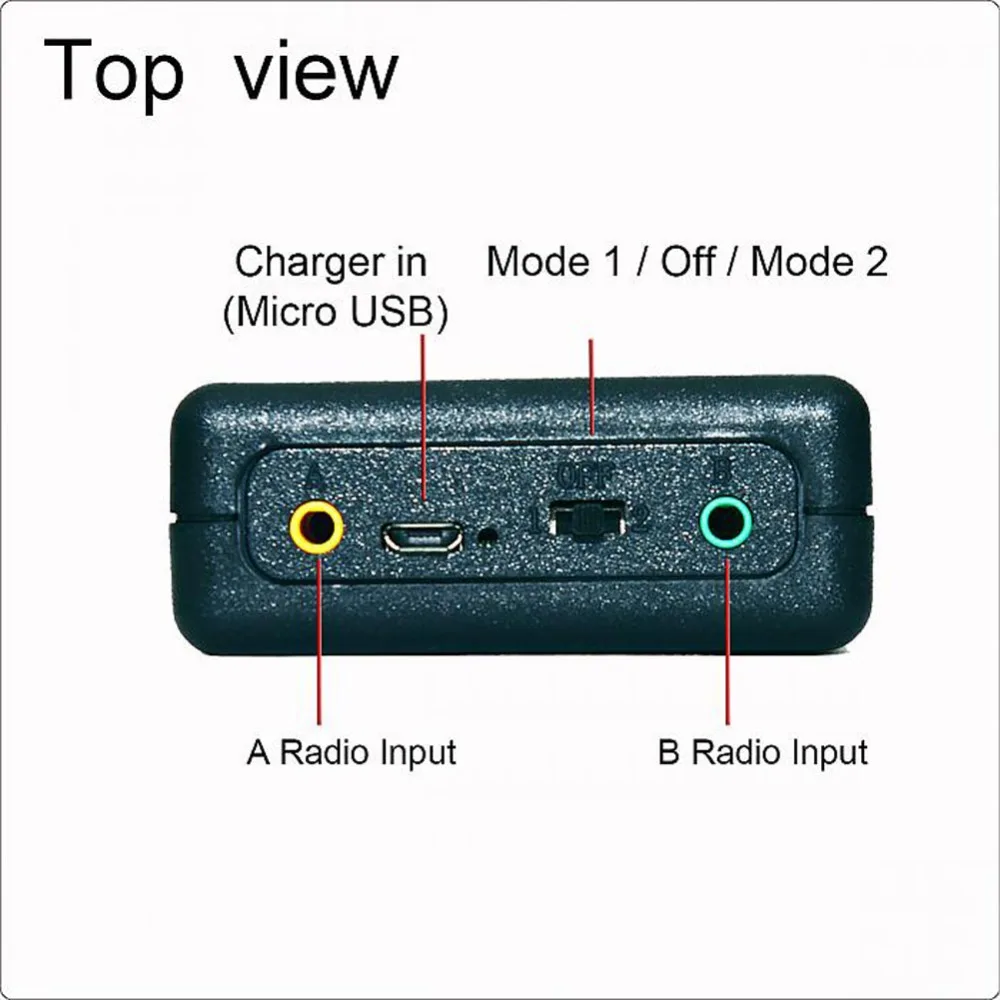

The SR-629 has 2 audio ports input and out , they are used to connect with mobile
and handheld radio.  Multi-LED display 2 of radio status , and build-in battery Level

Major Features

• Works with most popular handheld radios

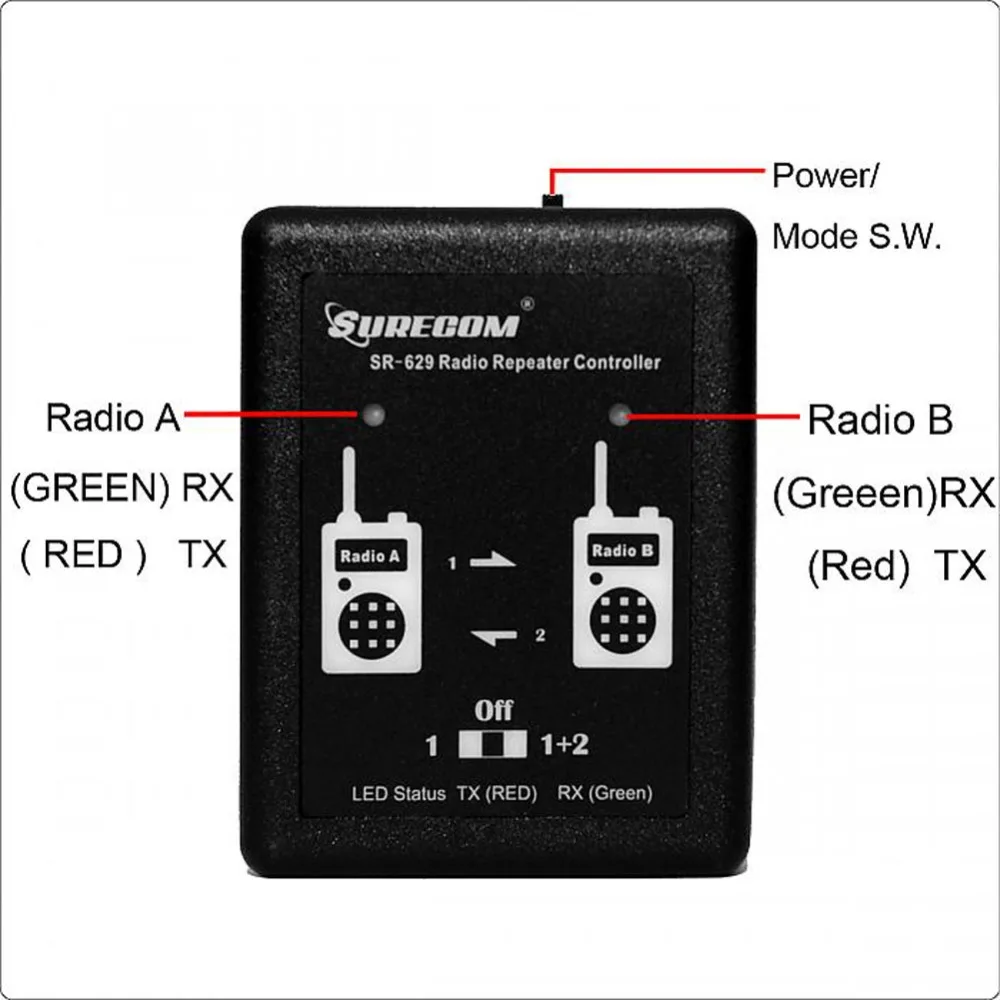

• Multi- LED display 2 radio status , And controller Battery Level
• Real time duplex repeater with link radio
• Allows user to change the DTMF remote control password by radio
• Operates on both build-in Li-ion battery 72 hours long life operation
• External DC 5V  power supply
• Professional manufacturer low power consumption .
• Two mode select  .

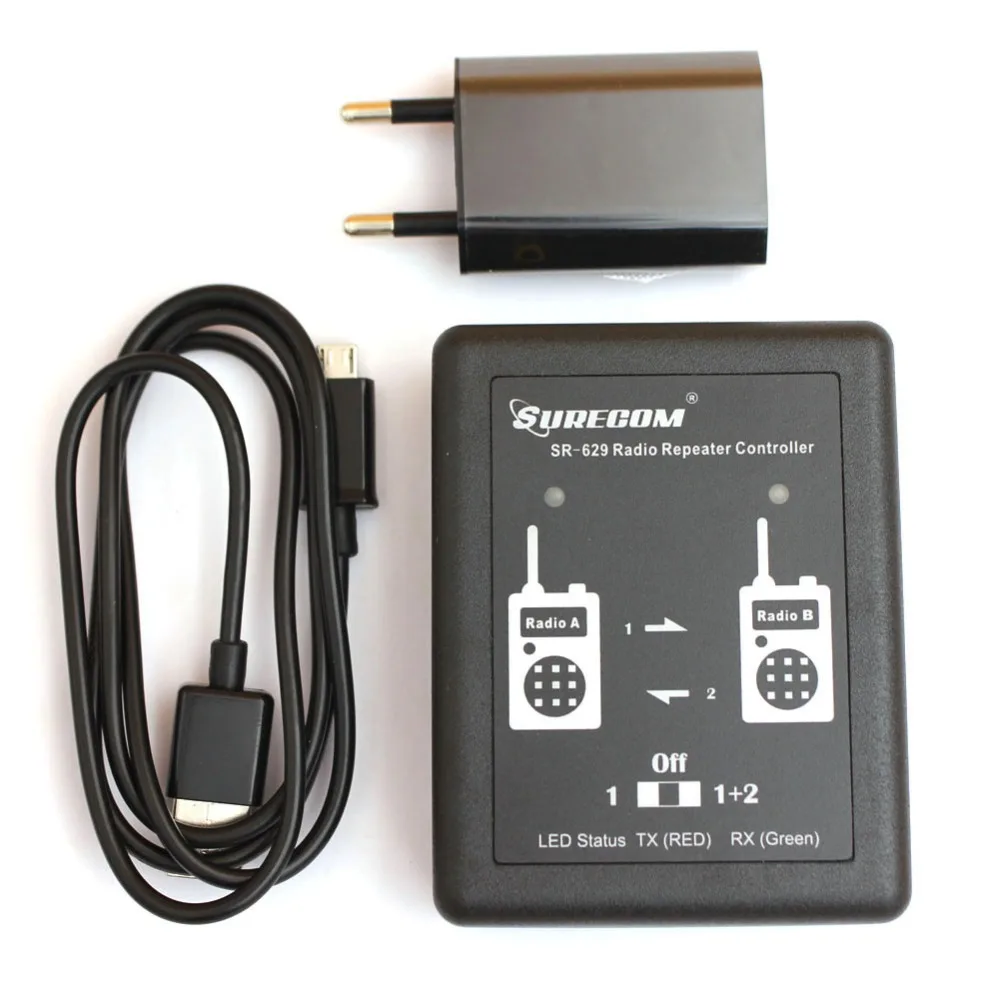

Package Contents:
