2Pcs/Lot TYT Mini Small Portable Radio TYT-77S UHF 400-470MHz 2W 16Channels VOX Scrambler with One-Key Frequency Copy

2Pcs/Lot TYT Mini Walkie Talkie TYT-77S UHF 400-470MHz 2W 16Channels VOX Scrambler Two Way Radio with One-Key Frequency Copy

Features:

-Squelch Level Selectable

-Monitor

-TOT

-Channel Scan-

-Battery Save Function

-Low Battery alert

-Busy Channel Lock

-Wide/Narrow bandwidth Select

-VOX

-Scrambler

-CTCSS-DCS

-One-Key Frequency Copy

Copy frequency from another Radio with one-key easy operation

– Over-the-air Programming

Frequency copy all channels each other at one times for same working solution system of walkie talkie

Specifications:

General

Frequency Range: 400-470MHz

Channel No.: 16

Operating Voltage: 3.7V DC

Antenna: Non-Removable antenna (Fixed on the Radio)

Antenna impedance: 50 ohm

Mode of operating: Simplex

Charging Current: 500mA

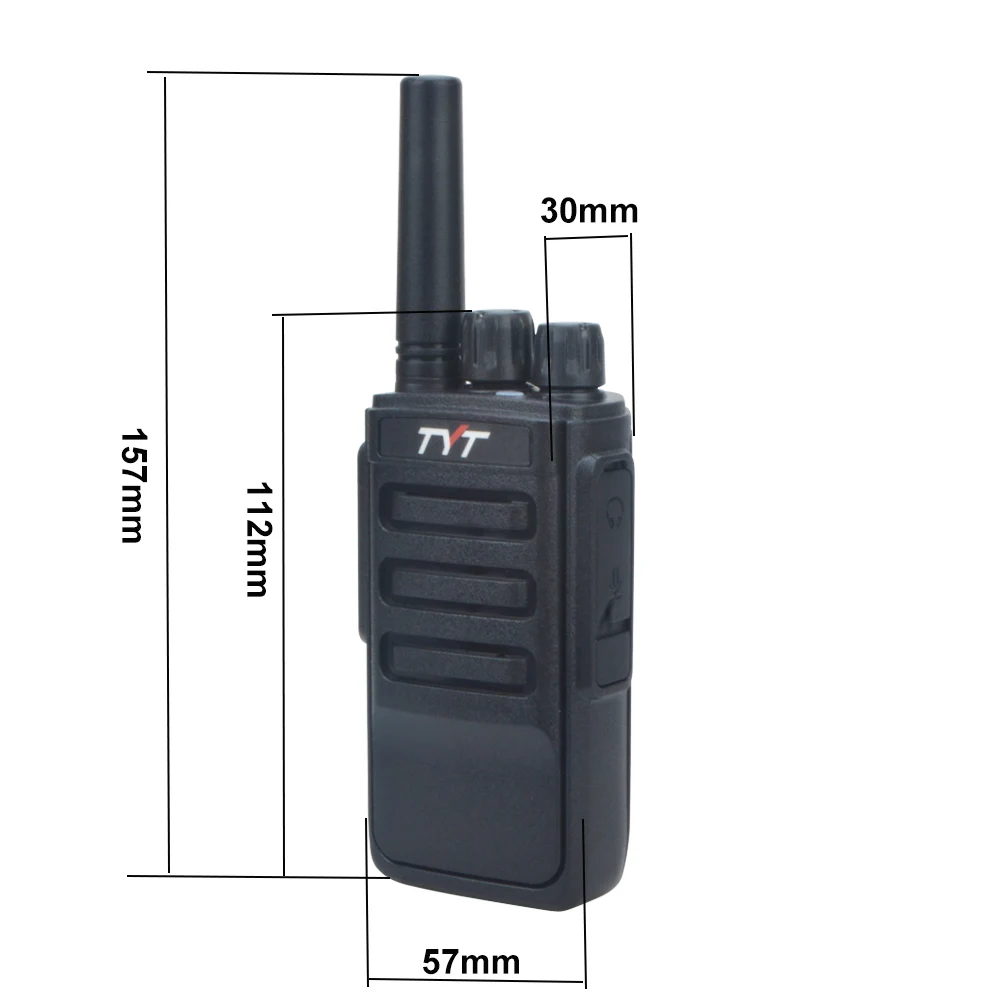

Dimension: 157*57*30mm

Battery Capacity: 1200mAh

Transmitter

Frequency Range: 400-470MHz

RF Power: ≤2W

Modulation: 16KFØ 3E

Spurious Component: ≤7.5uW

Modulation Noise: <-40dB

Modulation Distortion:<5%

Frequency Stability: 5ppm

Max Fr. Deviation: ≤±5KHz

Current: ≤1200mA

Audio Response(30-3000Hz):+6.5~-14dB

Adjacent Channel Power: ≥65dB

Modulation Sensitivity: 10±2mv

Receiver

Frequency Range: 400-470MHz

Receiving Sensitivity: ≤0.2uV.

Occupied Bandwidth: ≤16KHz

Adjacent Ch. Selectivity: ≥ 65dB

Inter-modulation: ≥55dB

Audio Output Power: 1W

Audio Distortion: ≤ 5%

Frequency Stability: 5ppm

Transmission Current: 150mAh

Receiving Current: 55mAh

Standby Current: 55mAh

Audio Response(300-3000Hz): +7~-12.5dB

Reference Frequency: 26.000MHz

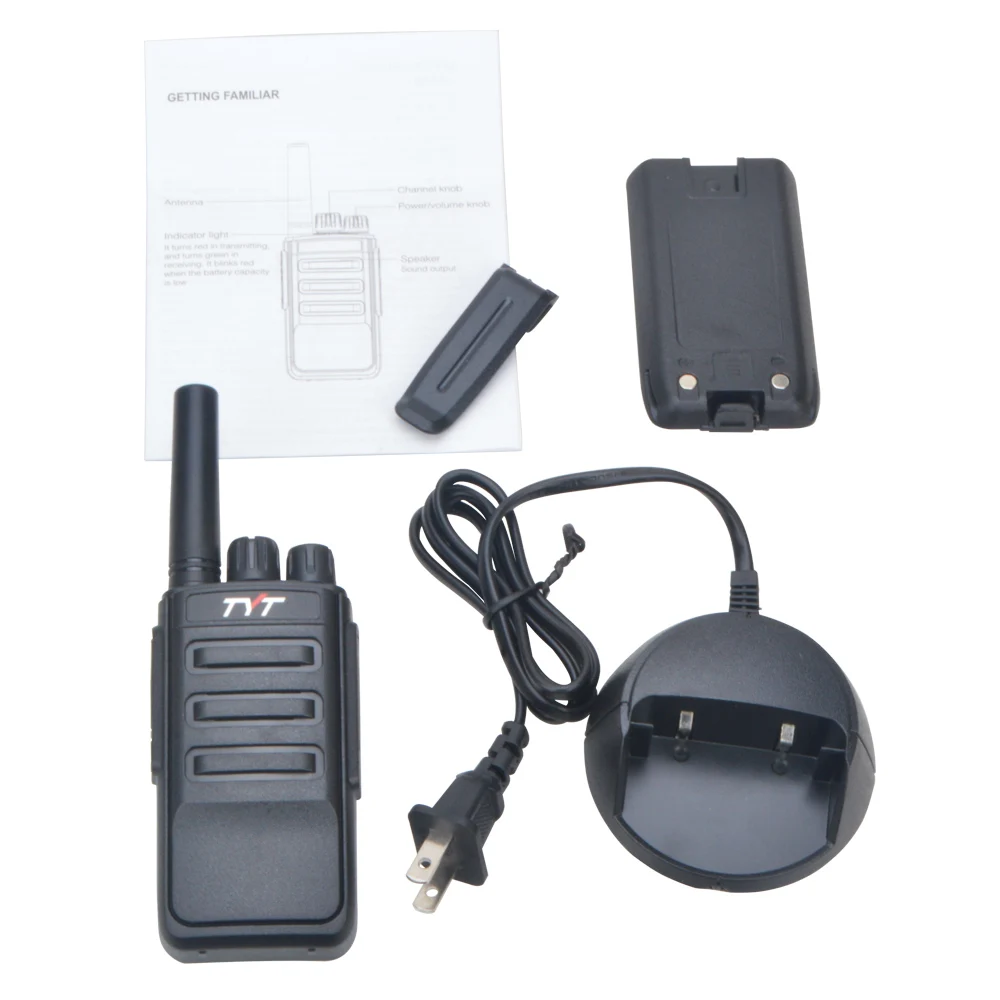

Package Contain:

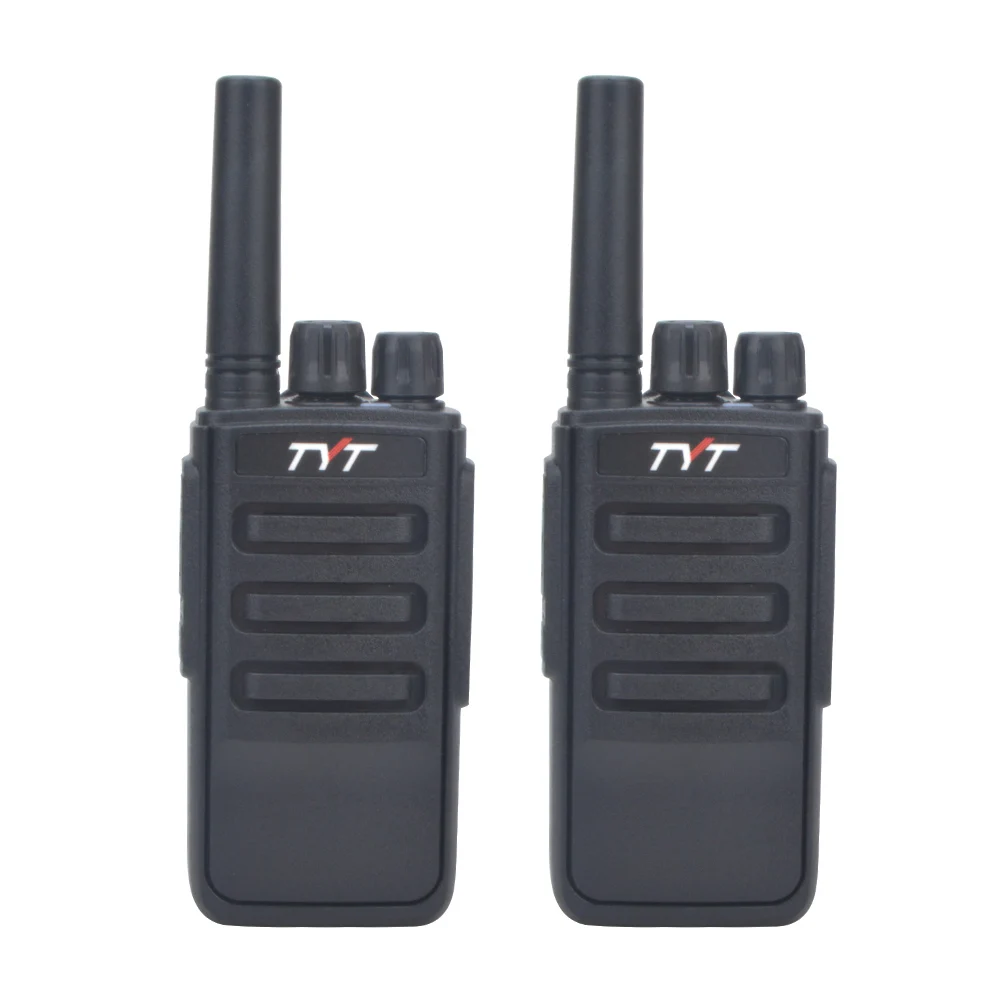

2× TYT-77S UHF:400-470MHz Radio

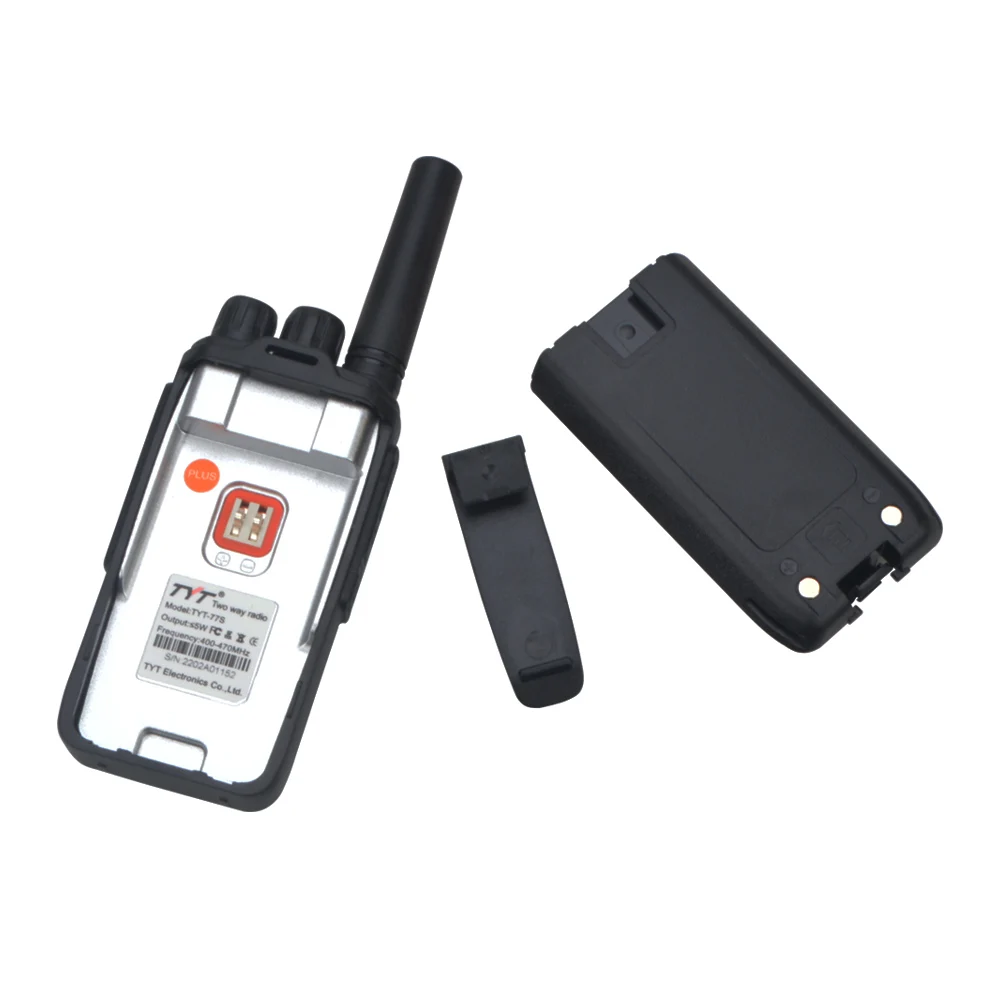

2× 3.7V 1200mAh Li-ion Battery Pack

2× Belt Clip

2× ENG Manual

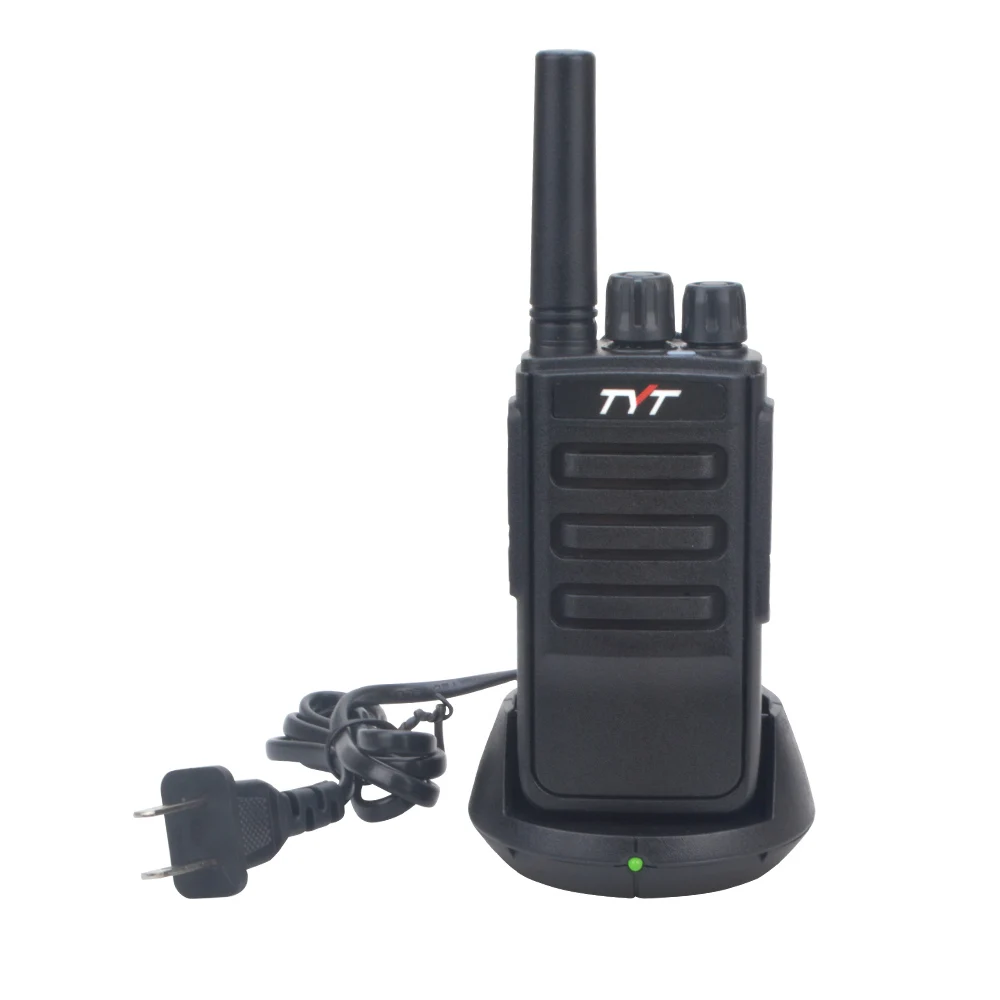

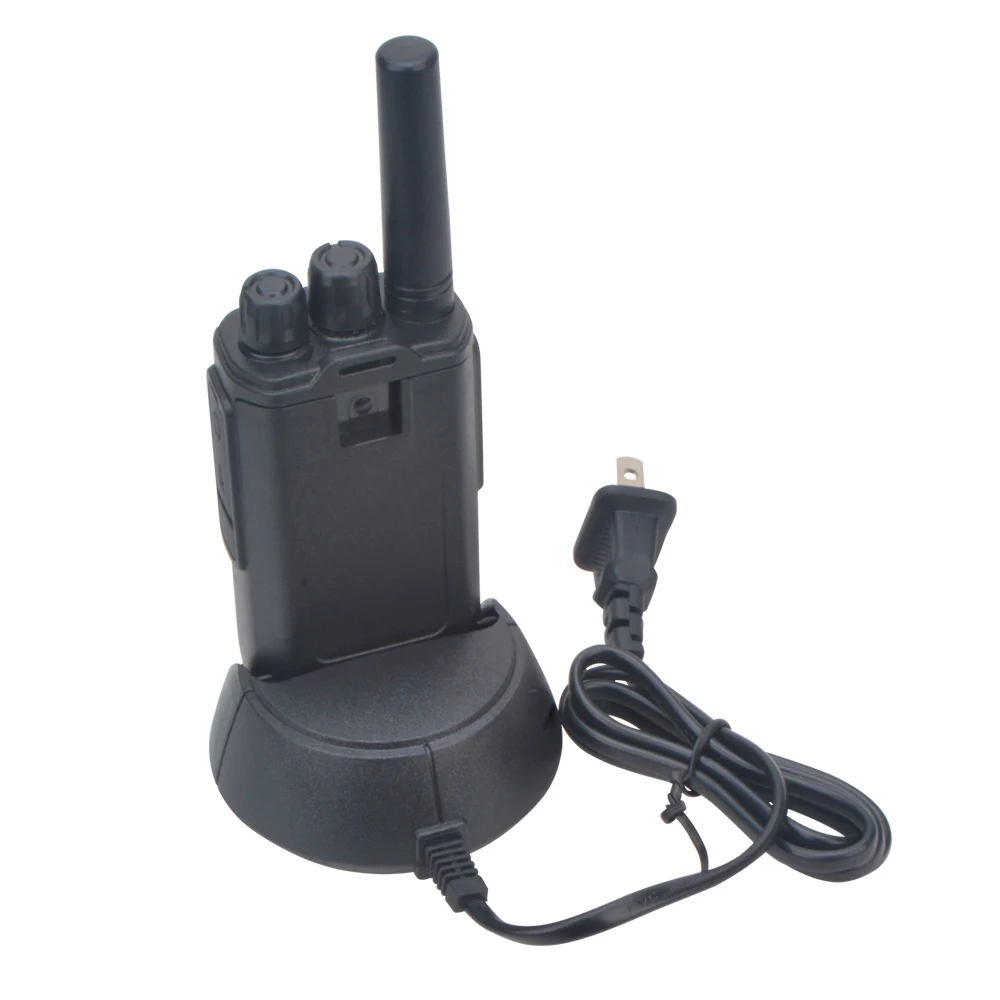

2× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country

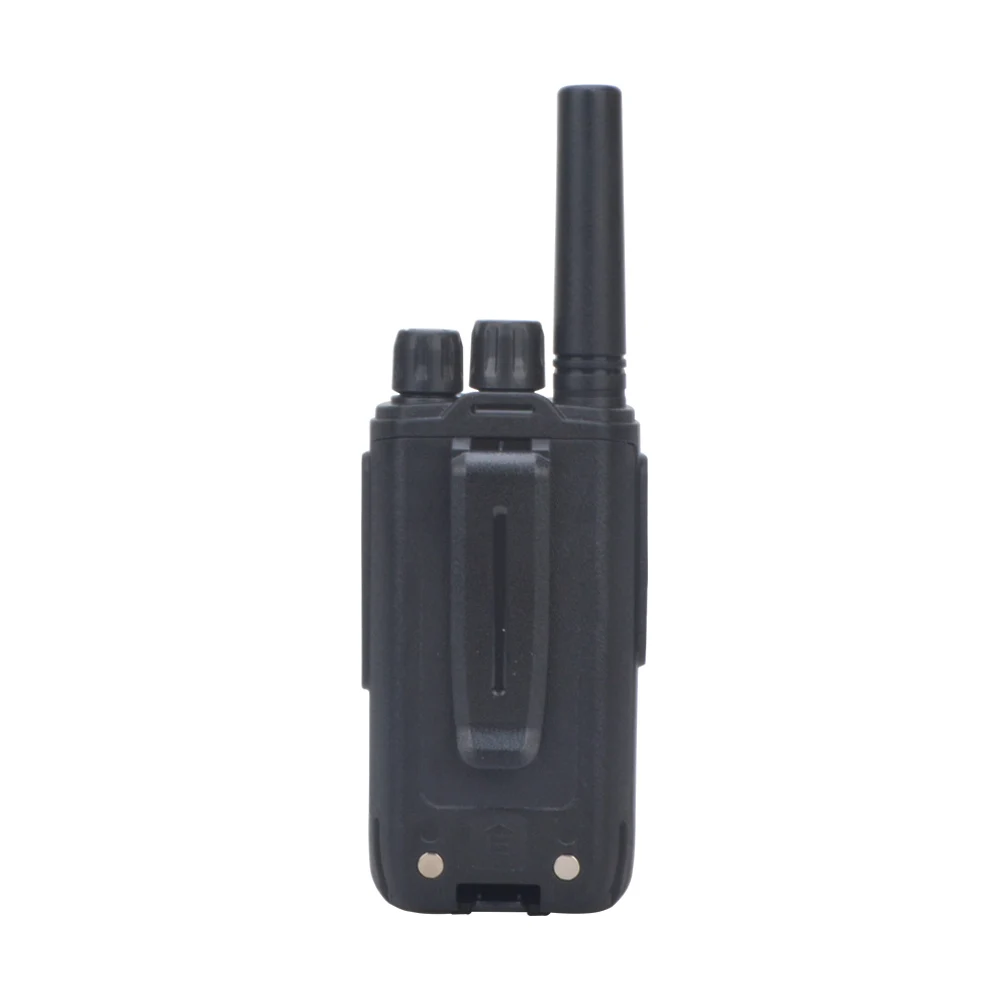

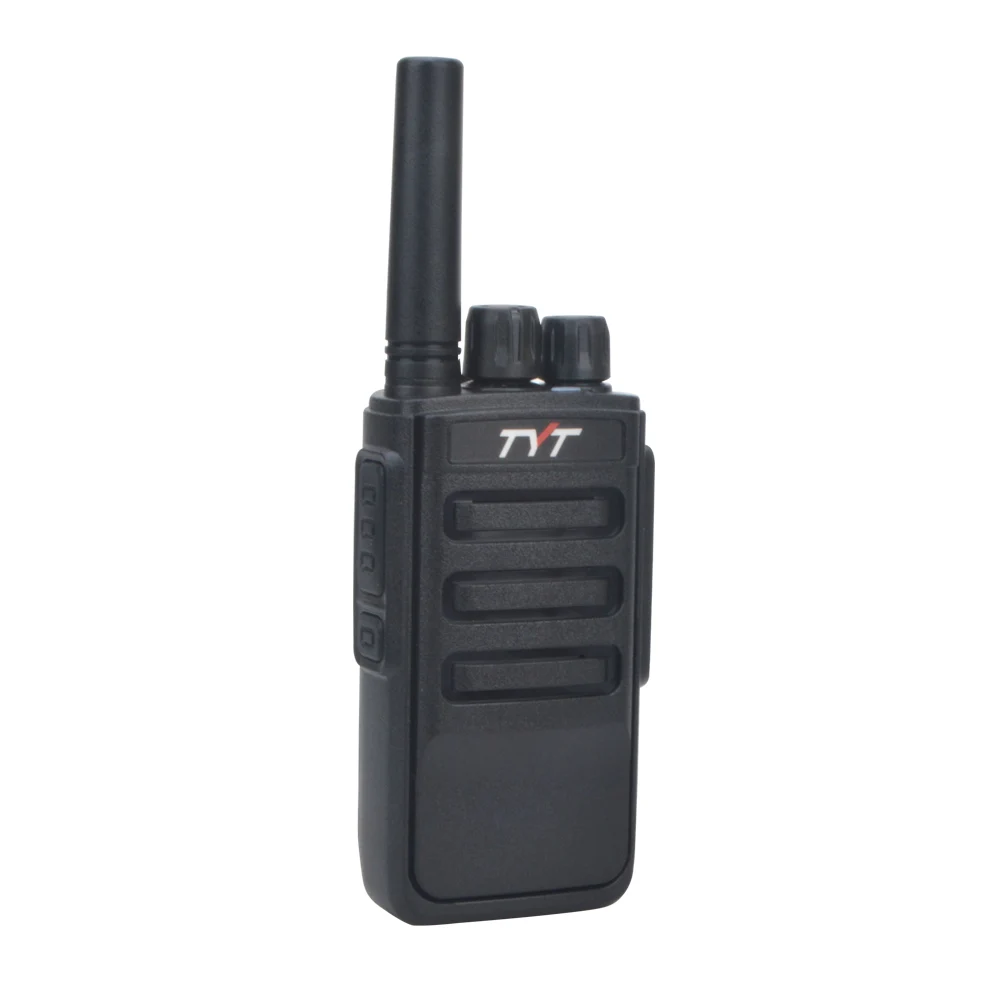

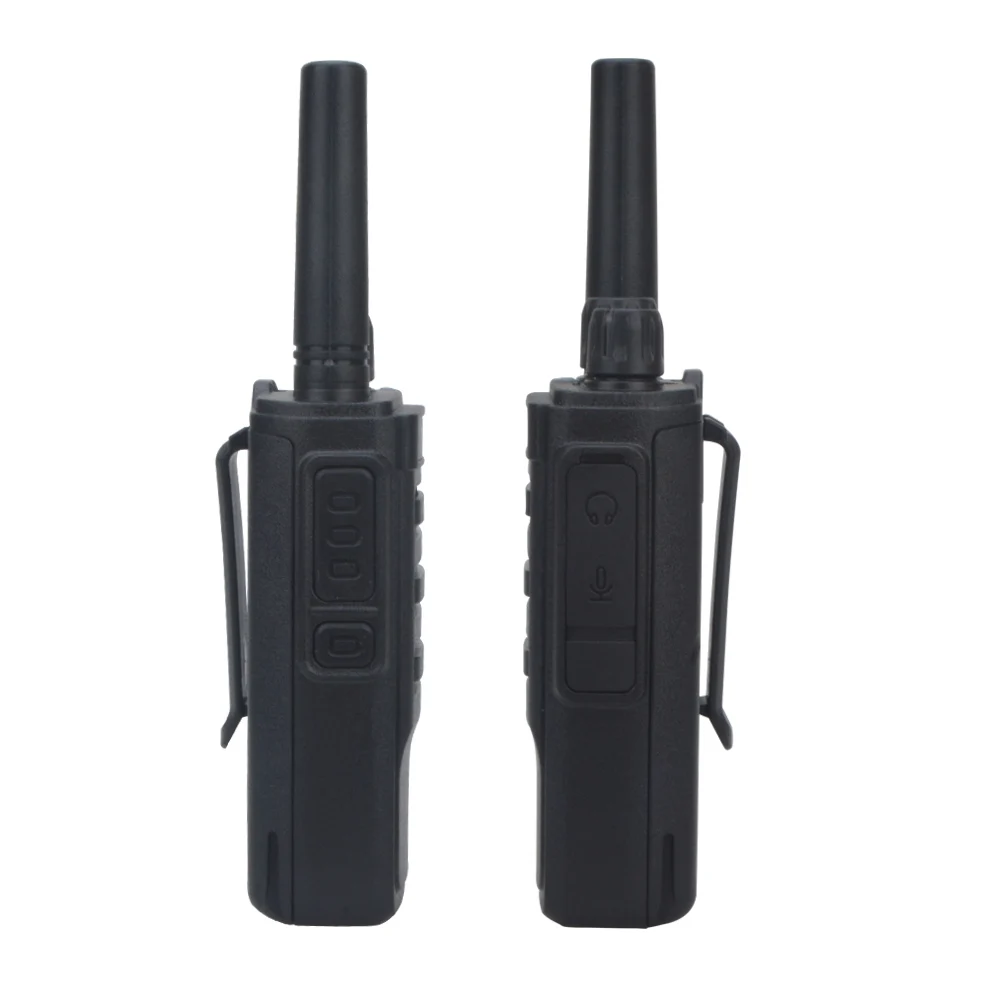

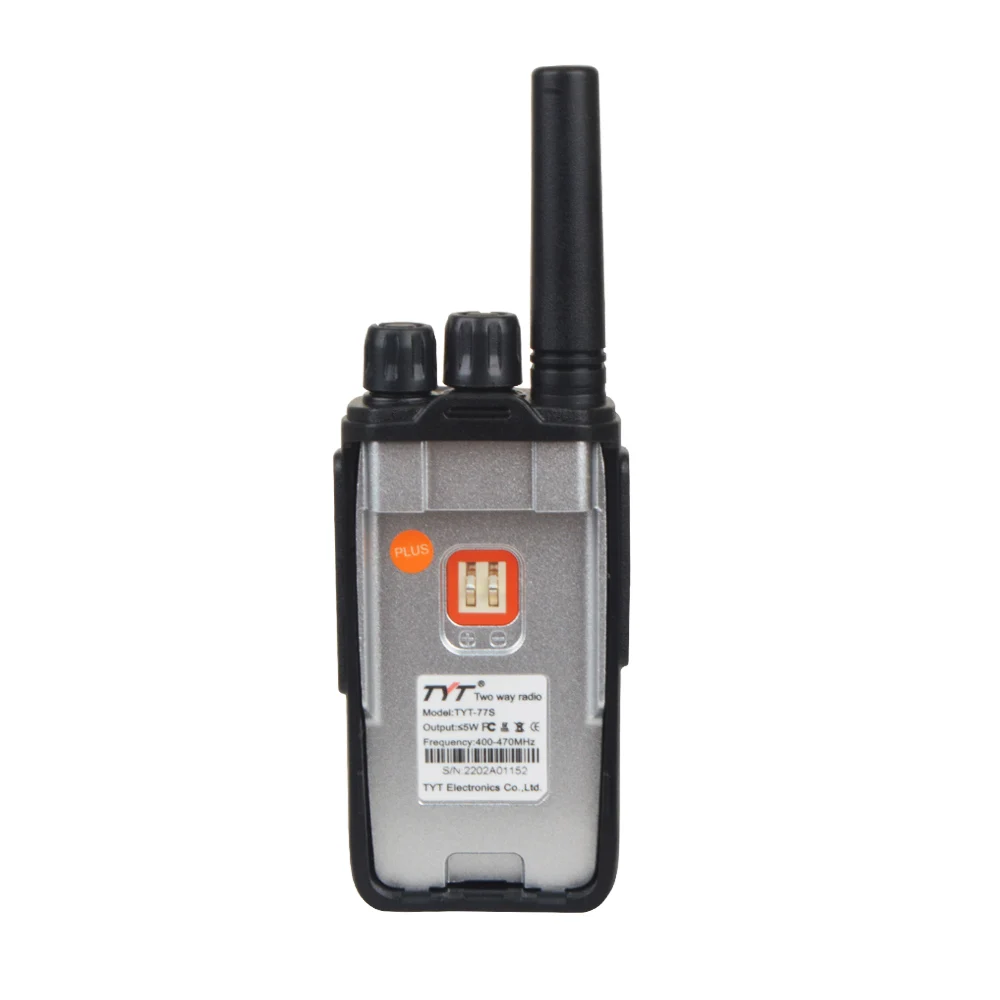

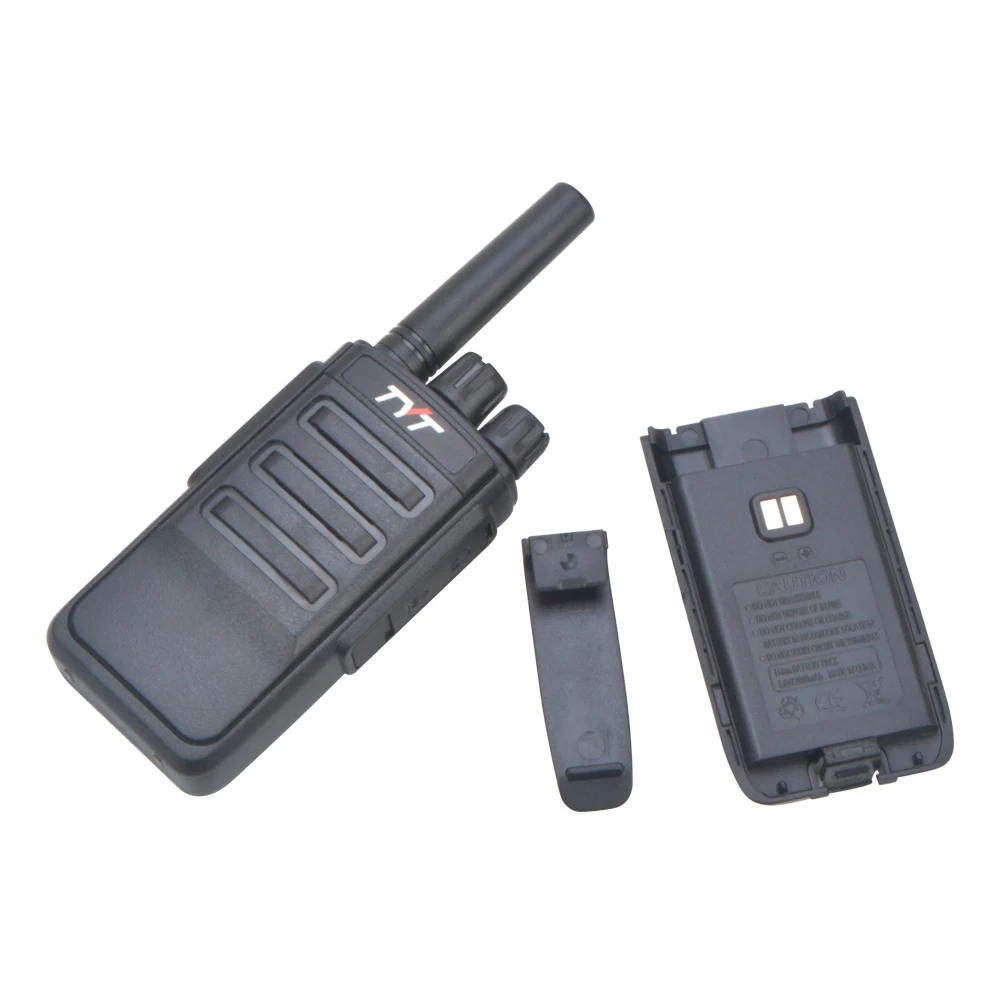

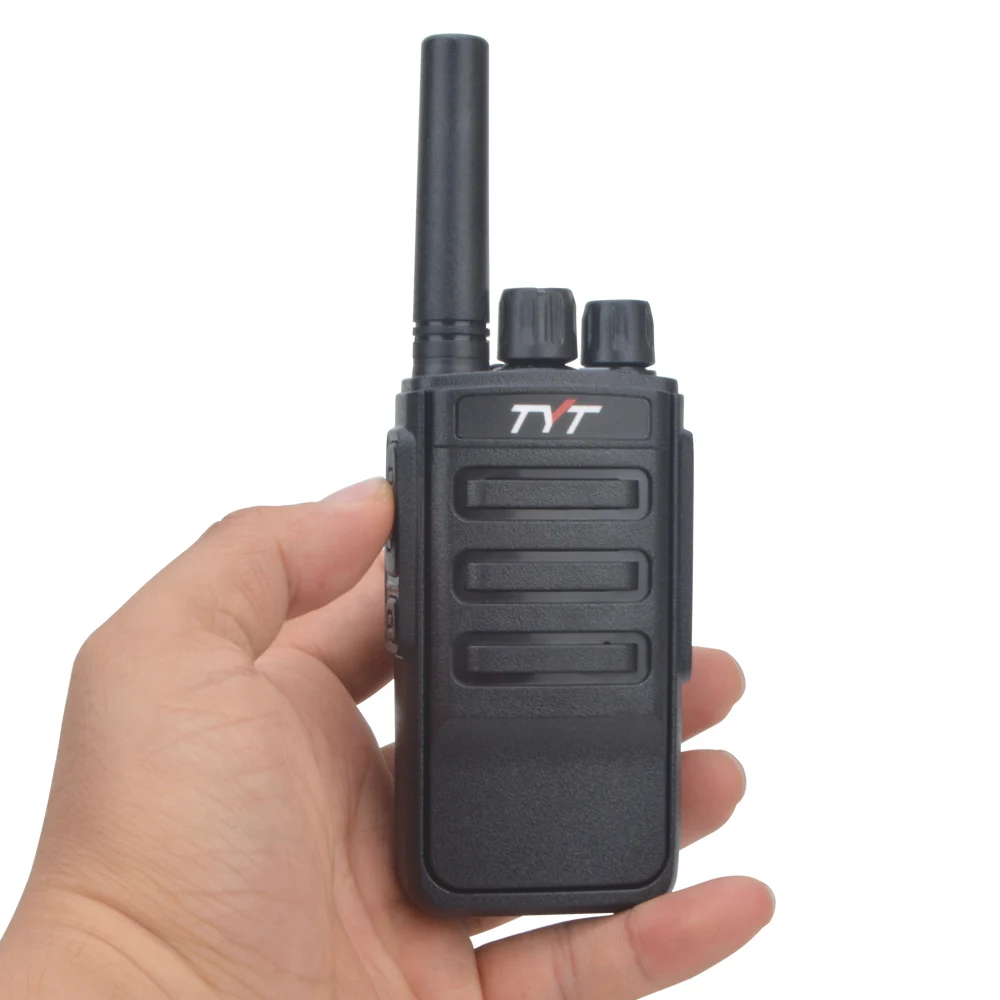

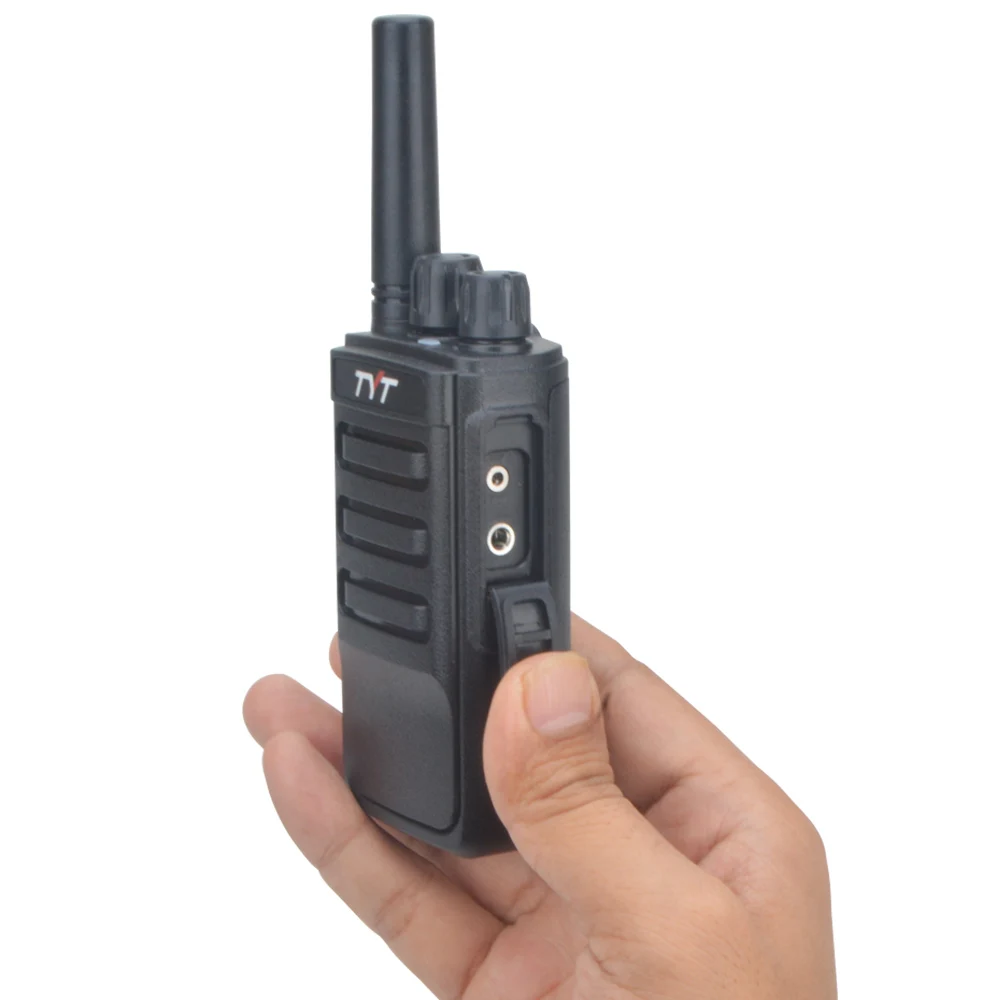

Photos:
