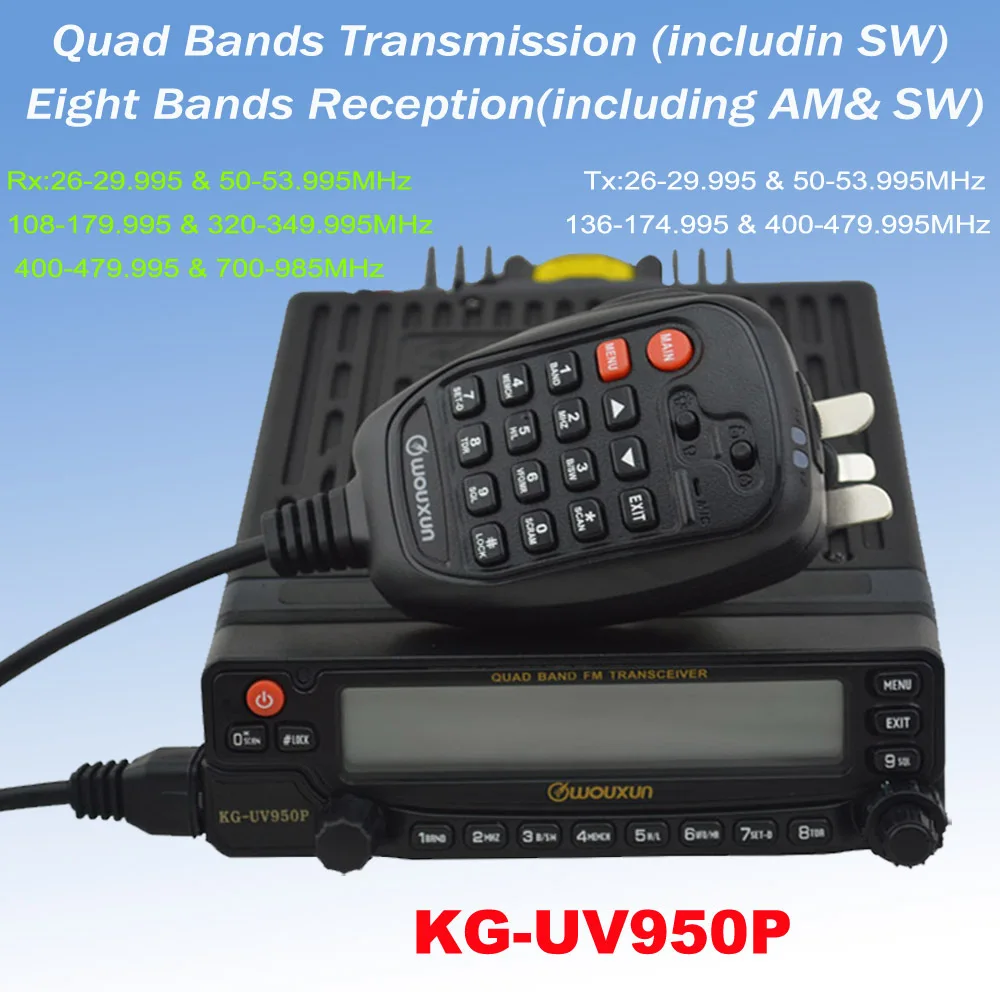

Wouxun KG-UV950P Quad Bands Transmission(including SW) & Eight Bands Reception(including AM & SW) Mobile Transceiver (Max. Output Power 50W)
FM:Tx 26-29.995MHz/50-53.995MHz/136-174.995MHz/400-480.995MHz
FM:Rx 26-29.995MHz/50-53.995MHz/65-108.000MHz/108-180.995MHz/320-349.995MHz/400-480.995MHz/700-987.995MHz
AM:Rx 108-135.995MHz
Features:
-
Twin Band/Same Band Simultaneous Reception
-
Dual Display (Large Screen with Dual Display & Independent Operating)
-
999 Memory Channels(Grouping Channels,Group Channel Name Programming)
-

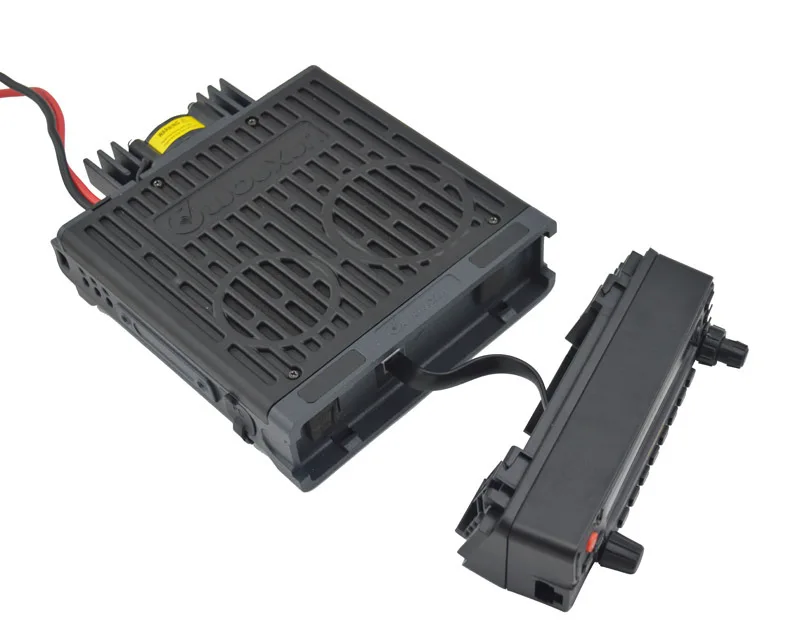

Front Panel and Radio body Flexiable for Separation
-
Duplex Mode(Cross-Band Simultaneous TX&RX)
-
Duplex Cross-Band Repeat(Standard Configuration)
-
QT/DQT Encoding/Decoding (QT/DQT Scanning,Non-standard CTCSS/DCS Setting Freely)
-
Same-Band Repeat on Two Combined Radios
-
High Power Output(VHF:50W,UHF:40W)
-
Dual Track and Multi-way Loudspeakers
-
Hand Microphone DTMF with Loudspeaker,Receiving Indicator and Volume Adjuster
-
Caller ID Display
-
DTMF Encoding and Decoding
-
Groups Calls,All Calls and Selective Calls
-
8 Groups of Scrambler(Standard Configuration)
-
Priority Channel Scanning
-
APO Power Management
-
Wide/Narrow andwidth Selectable(25KHz/12.5KHz)
-
Voice Guide(English)
-
Automatic Temperature Detection
-
Lowest Working Voltage Setting
-
Stun/Kill Function
-
Single Audio Pulse Frequency(2100Hz/1750Hz/1450Hz/1000Hz (able to Activate Repeating)
-
Multiple Backlight Color Selectable
-
Scan Channel Adding/Deleting
-
Grouping Channel Scanning
-
Multiple Scanning Way(SE/CO/TO)
-
Remote Control Setting
-
Multiple Settings for Cooling Fan
Specifications:
|
General |
|
|
Frequency Range |
Frequency Range Suitable for any Region of any Country: Rx:26.000-29.995MHz & 50.000-53.995MHz 108.000-179.995MHz & 320.000-349.995MHz 400.000-479.995MHz & 700-985MHz Tx:26.000-29.995MHz & 50.000-53.995MHz 136.000-174.995MHz & 400.000-479.995MHz |
|
Step Frequency |
5/6.25/10/12.5/20/25/30/50/100KHz |
|
Memory Channel |
999 |
|
Working Mode |
F2D/F3E |
|
Operating Temperature |
-20°C~+40°C |
|
Antenna Impedance |
50 Ohms |
|
Power Requirement |
13.8VDC (Negative Grounded) |
|
Dimensions |
140×44×207mm |
|
Weight |
1437.8g (Microphone included) |
|
Transmitter |
Wide Bandwidth |
Narrow Bandwidth |
|
Type of Modulation |
16K F3E |
11K F3E |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
Spurious |
≥60dB |
≥60dB |
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~2.55KHz) |
|
Max. Frequency Deviation |
±5KHz |
±2.5KHz |
|
Frequency Stability |
±5ppm |
|
|
Audio Distortion |
≤5% |
|
|
Output Power |
50W/20W/10W/5W(VHF) |
|
|
40W/20W/10W/5W(UHF) |
||
|
Receiver |
Wide Bandwidth |
Narrow Bandwidth |
|
Adjacent Channel Selectivity |
≤70dB |
≤60dB |
|
Intermodulation |
≤60dB |
≤60dB |
|
Spurious Response |
≤70dB |
≤70dB |
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3-2.55KHz) |
|
Signal to Noise Ratio |
≥45dB |
≥40dB |
|
Audio Power |
Transceiver≤3W Hand Microphone≤1W |
|
|
Sensitivity |
400.000-479.995MHz:0.25μv(13dB SINASD) 136.000-174.995MHz:0.25μv(13dB SINASD) 50.000-53.995MHz:0.25μv(13dB SINASD) 26.000-29..995MHz:0.25μv(13dB SINASD) 320.000-349.995MHz:0.25μv(13dB SINASD) 700.000-985.995MHz:-97.0dBm(13dB SINASD) |
|
Package Contents:
- 1 x Wouxun KG-UV950P Mobile Transceiver
- 1 x Microphone
- 1 x Mobile Mounting Bracket
- 1 x DC Power Cord with Fuse
- 2 x Spare Fuse 15 A
- 1 χ Microphone Clip
- 1× Flat Switchboard Panel
- 1× Screw Sets
- 1× Remote Front Panel Bracket
- 1 x English Operating Manual
- 1 x Warranty Card
