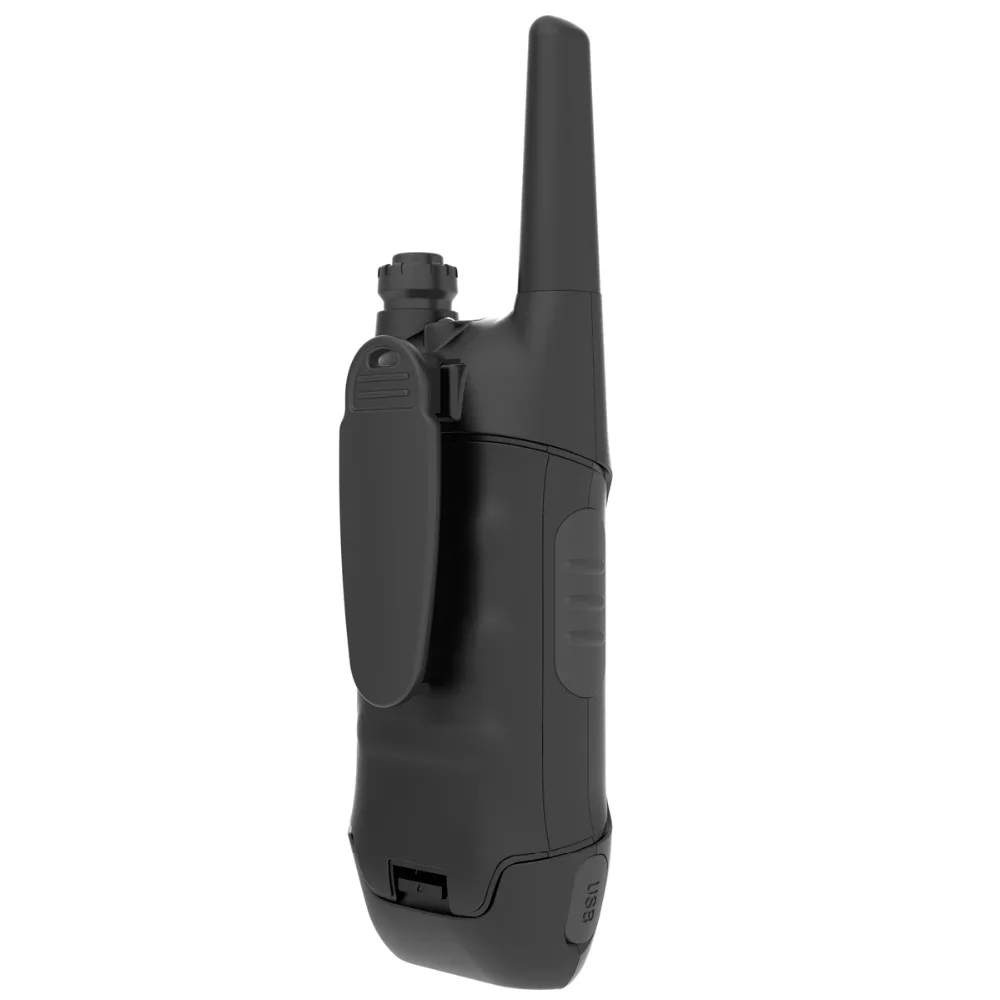

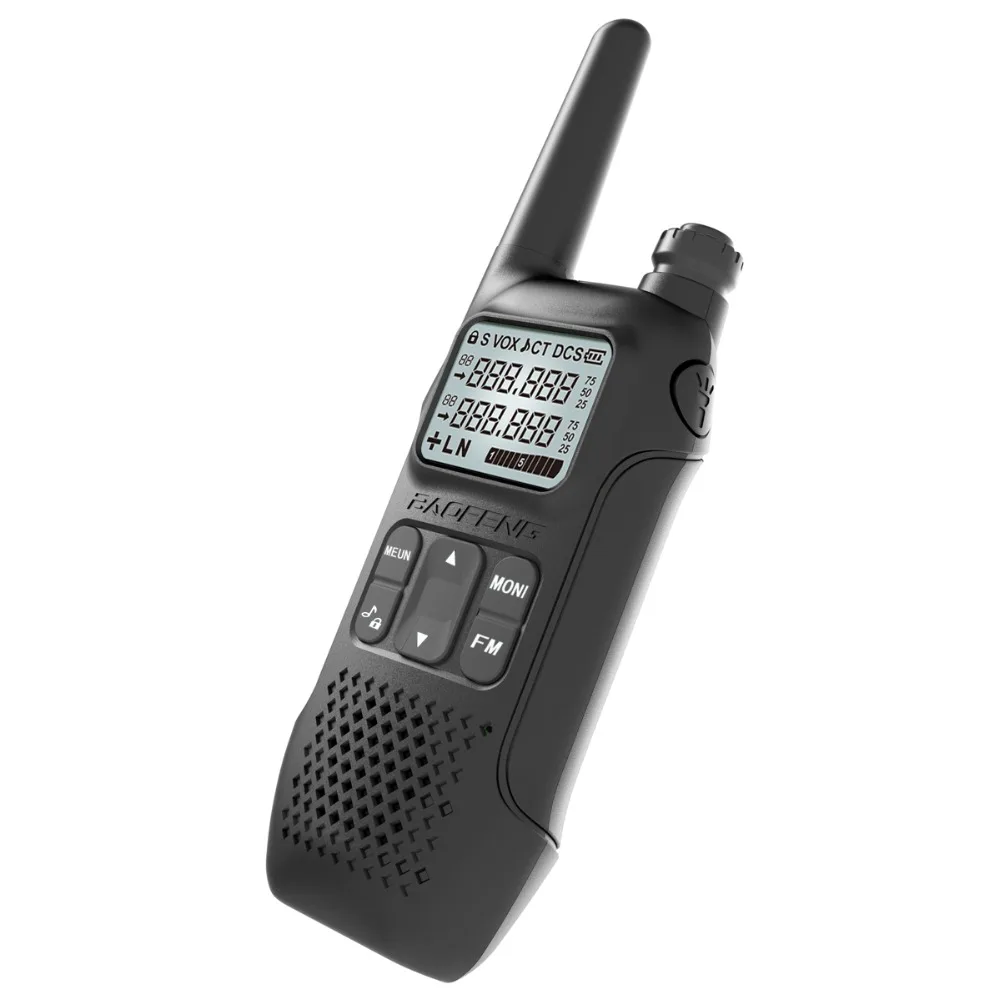

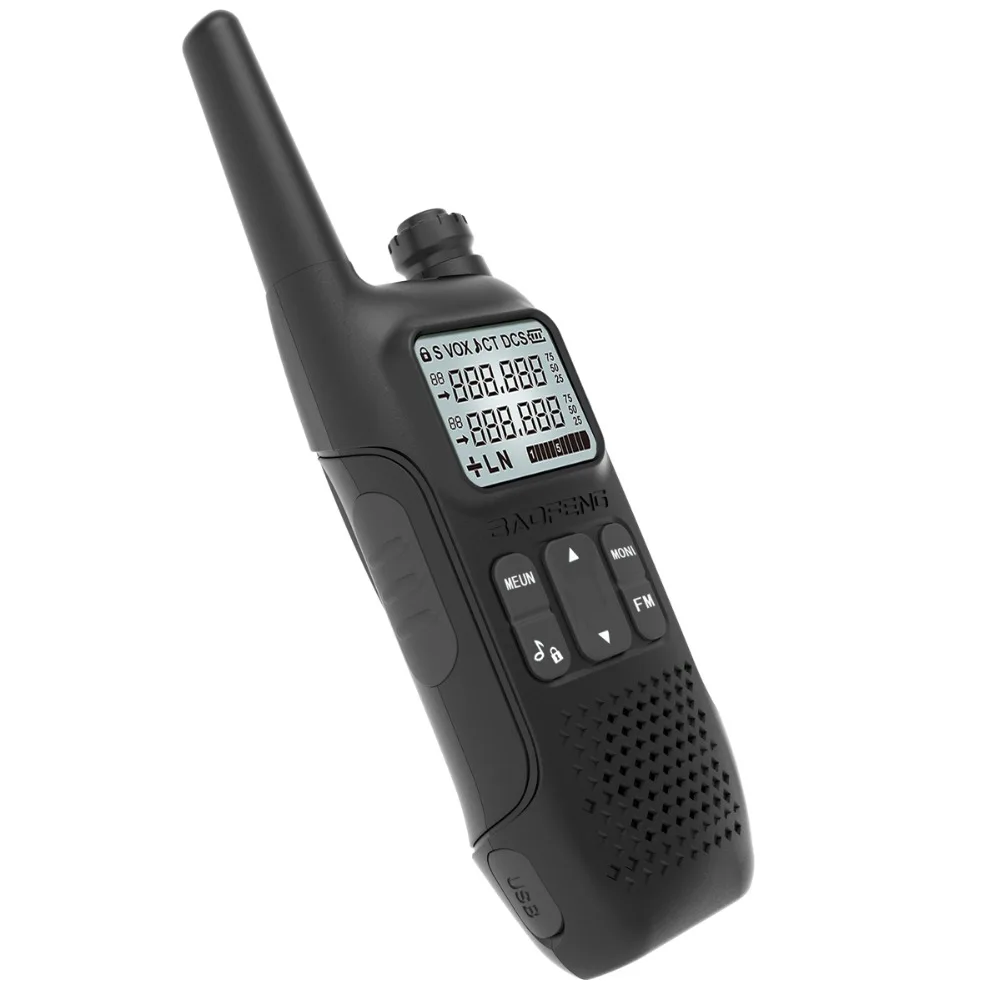

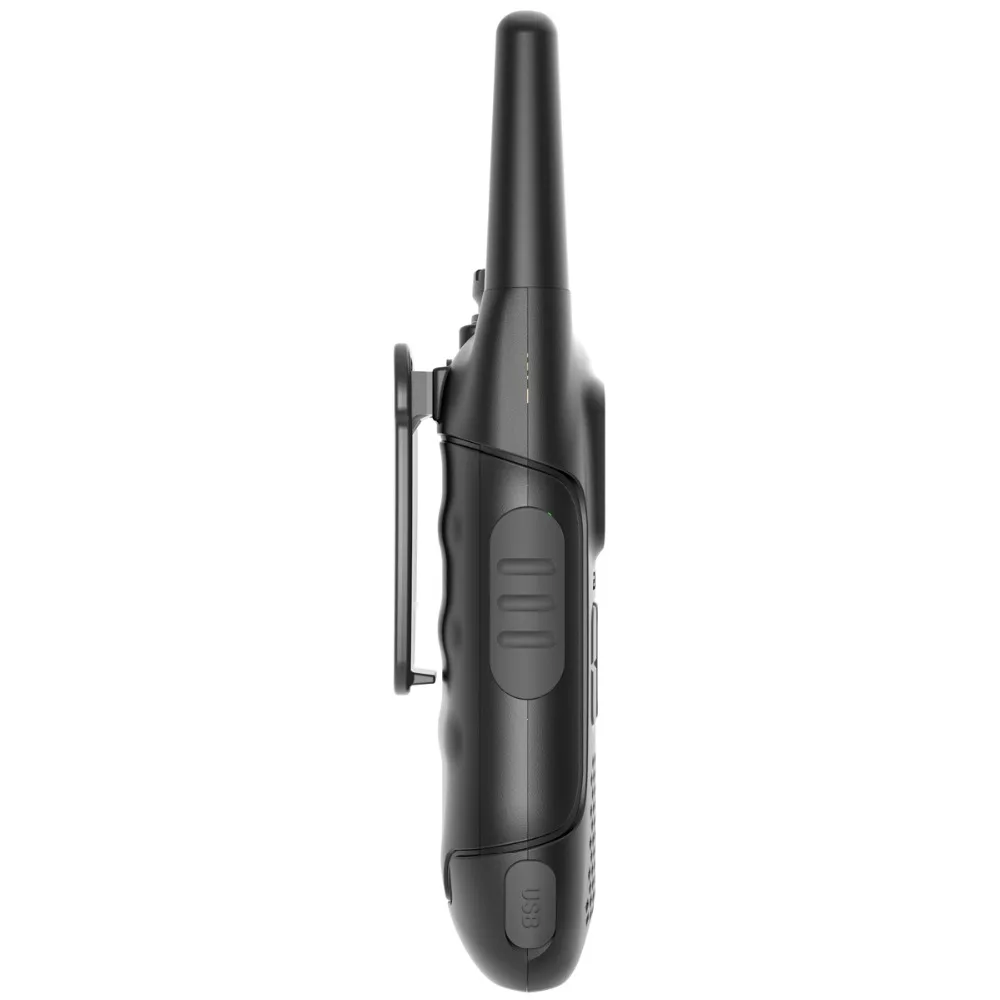

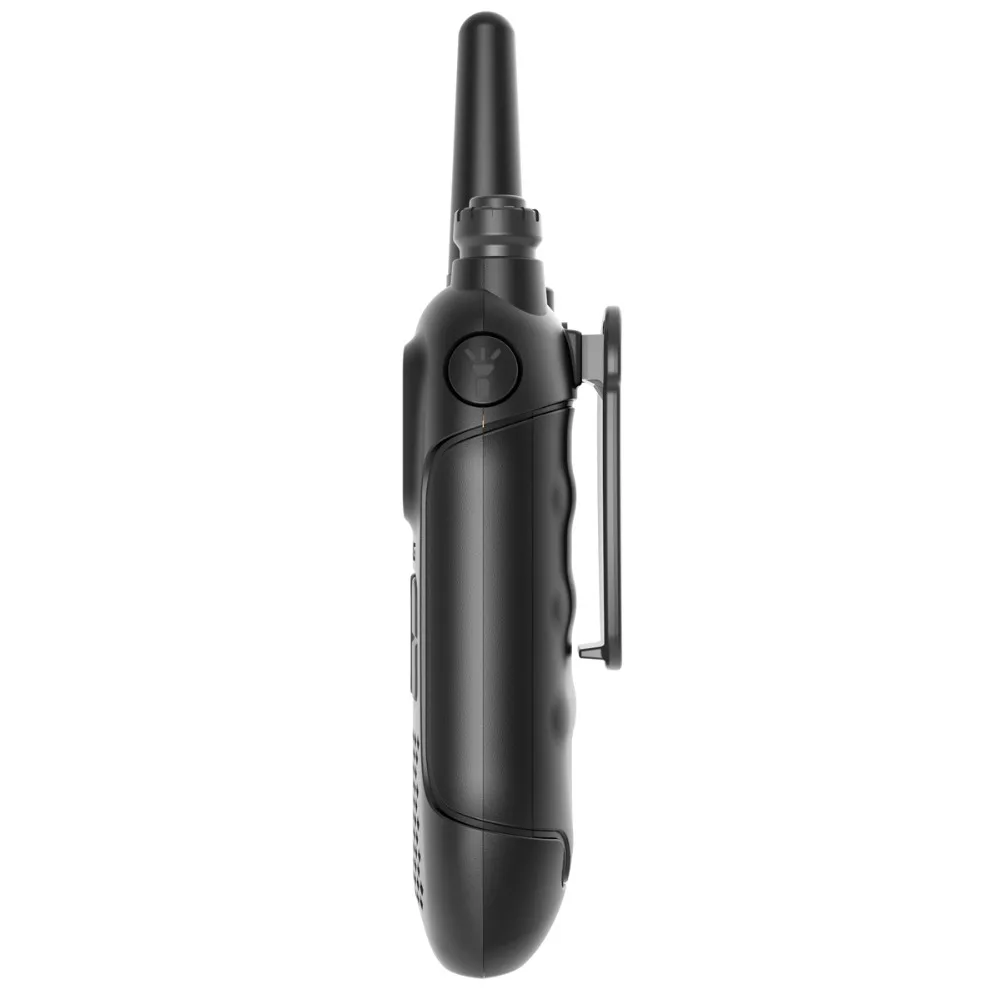

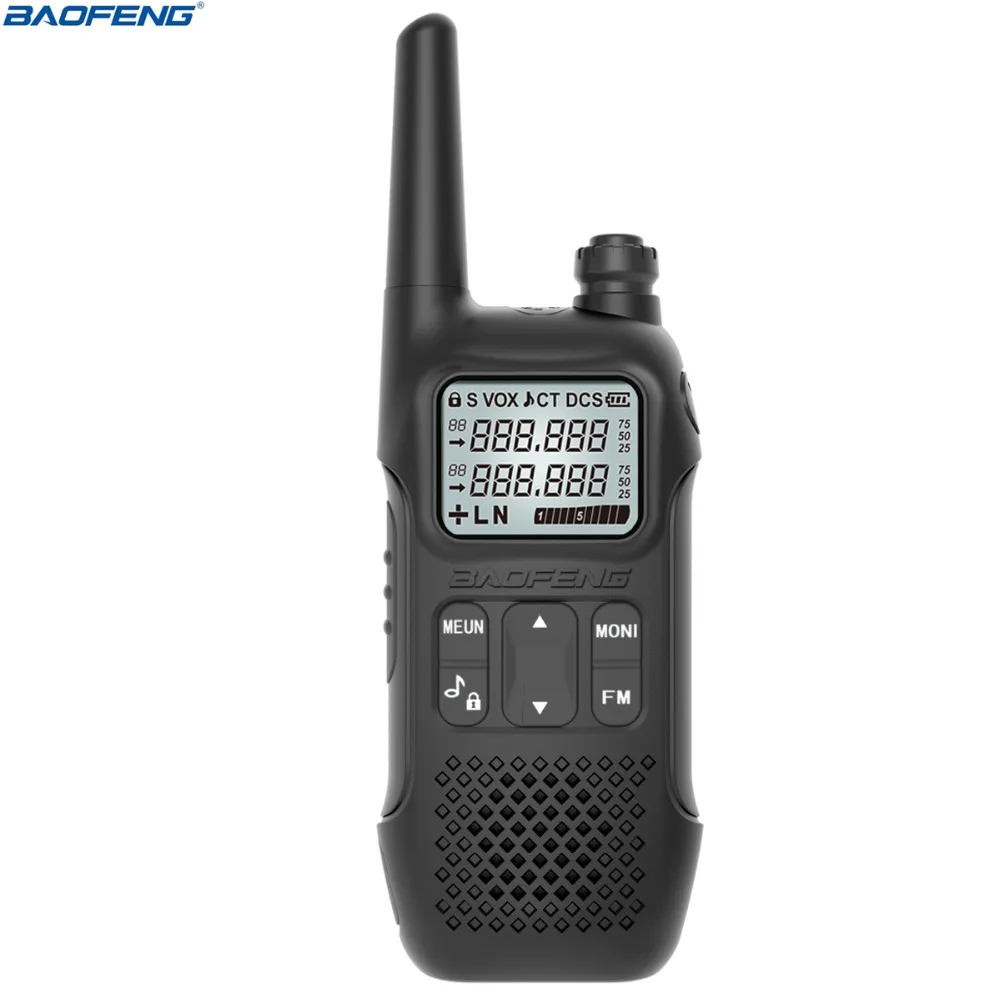

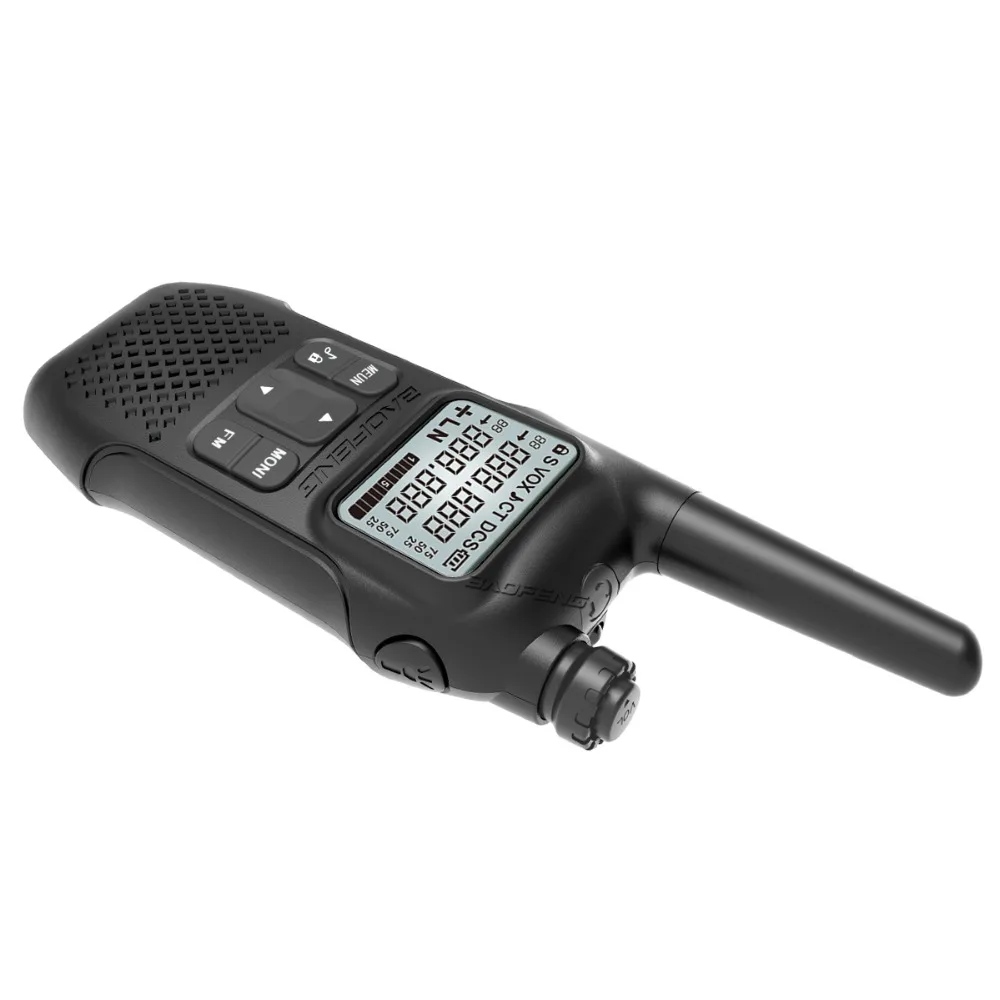

2PCS BAOFENG BF-U9 MINI UHF 400-470MHz FM Ham Walkie Talkie USB HF Transceiver Portable Radio
Features:
· LED Flashlight
LCD display monitor
· Voice Activated Transmit (VOX)
· Squelch
· Button Lock
· Monitor function
· Busy channel lockout
· Keystroke Tones
· 121 Privacy Codes
· Battery / Power Saver
· Battery level Indicator
· Ten different Call Tones
· Dual channel monitoring
· USB charging function
· TOT function
· FM radio(87-108MHz)
Technical parameters
| TECHNICAL PARAMETERS | |
| Product number | BF-U9 |
| Frequency range | 400-470MHZ |
| Channel number | 16 |
| Channel spacing | 12.5KHz |
| Working voltage | 3.7V |
| Frequency stability | ±2.5ppm |
| Operating temperature range | -10℃~50℃ |
| The antenna impedance | 50Ω |
| Battery Type | Li-ion Battery |
| Overall dimensions | 168*56*28mm (Include Antenna) |
| Weight | 126g |
|
TRANSMITER |
|
| RF power | ≤8W |
| Spurious emission | ≤-60dB |
| Transmission current | ≤1000mA |
| Preemphasis character | 6dB |
| Maximum deviation | ≤±5KHz |
|
RECEIVER |
|
| The sensitivity | ≤0.16uV |
| Intermediation | ≥65dB |
| Audio power | ≥380mW |
| Audio distortion | ≤10% |
| Squelch sensitivity | ＜0.2uv |
| Receiver current | ≤380mA |
Standard Accessories:
· 2 x BF-U9 Radio
· 2 x Battery
· 2 x Belt Clip
· 2 x Sling
· 2 x Charger
· 2 x User Manual
· 2 x Headset
