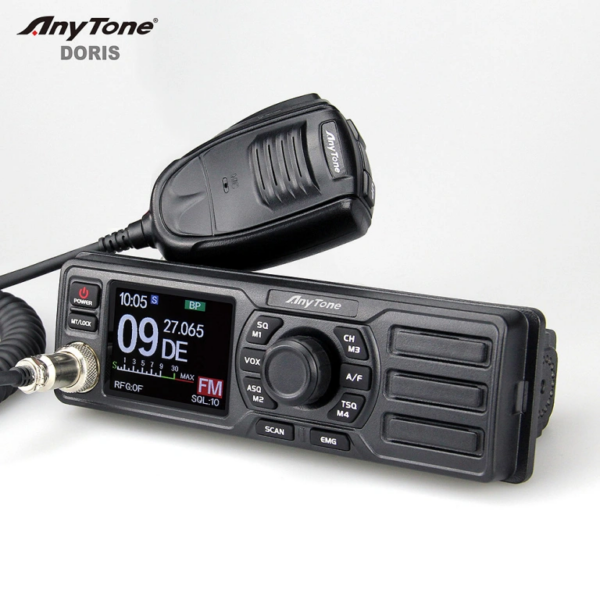

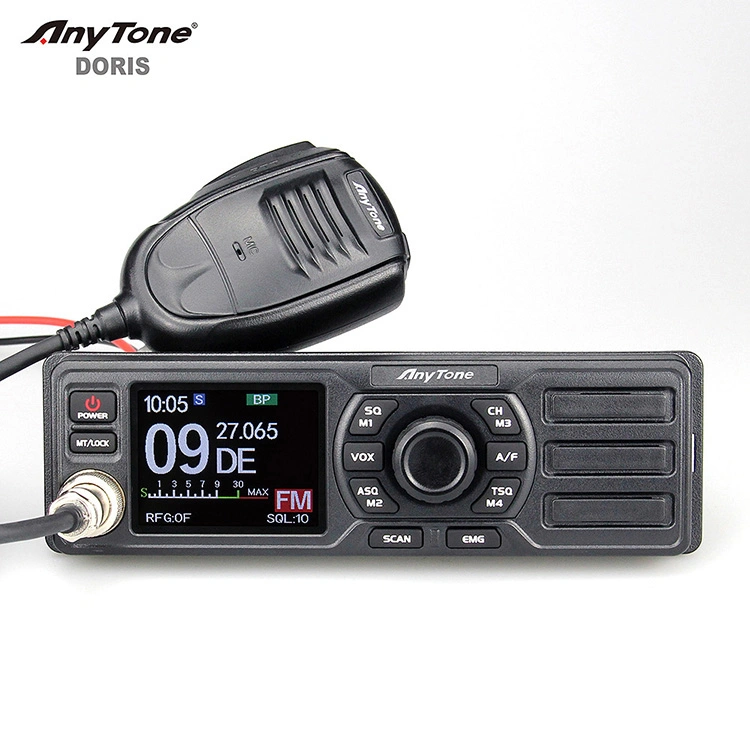

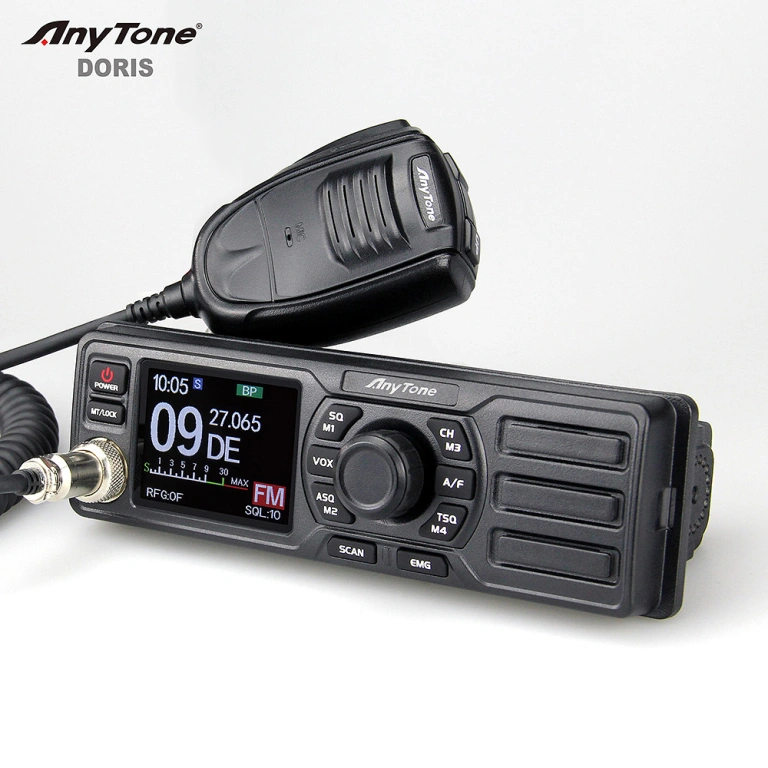

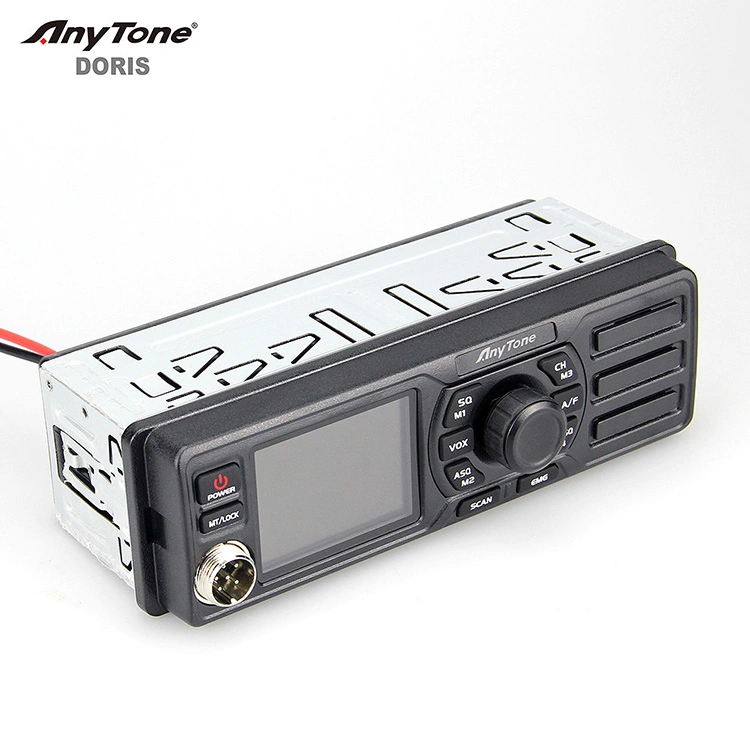

ANYTONE DORIS 27Mhz CB Radio with High power 30W Long Range Walkie Talkie AM FM 14 Band 600 Channels
Product sellpoints
- High Power Output:Boasting a robust 30W power output, the ANYTONE DORIS ensures long-range communication for reliable service.
- Multi-Band Capability:With 14 bands and 600 channels, this CB radio offers versatile communication options for various scenarios.
- Durable Construction:Crafted for practicality, the ANYTONE DORIS is designed to withstand the rigors of daily use.
- AM/FM Radio:Enjoy additional entertainment with the built-in AM/FM radio, making this walkie talkie a practical choice.
- Qualitative Serviceability:This tool part is engineered for serviceability, ensuring that it remains efficient and reliable over time.
Frequency: HF：24.715-30.105MHz
HAM：28.000-29.695MHz CB : 26.565-27.99125MHz
High power output version 12V AM: 4W/12W FM: 4W/12W/30W
Functions:

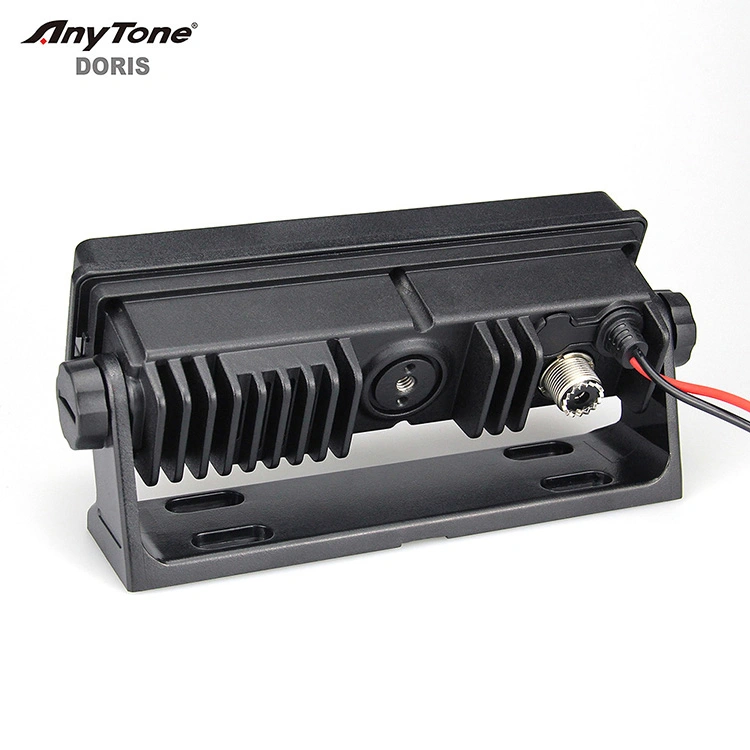

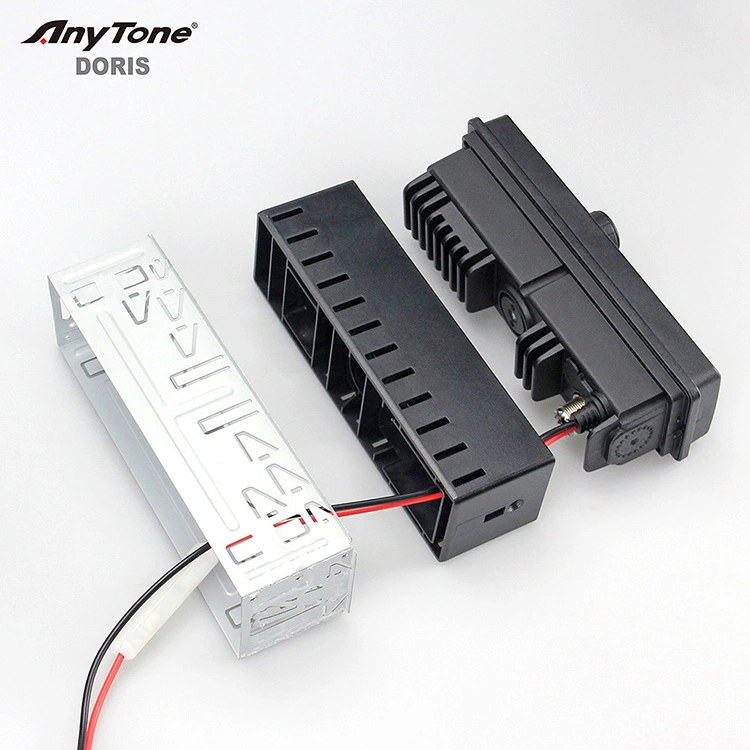

●A versatile CB radio, suitable to mount on any surface or in a DIN compartment
●12/24 V power supply capability
●With all the accessories included in the package, you can hang it on the windscreen or place it on the dashboard
●Multi-band, both FM/AM, therefore suitable to communicate beyond national borders, adapting to European frequencies
●Large TFT colour display with easy to read messages
●Packed with functions PA,
●12/24 V power supply capability
●With all the accessories included in the package, you can hang it on the windscreen or place it on the dashboard
●Multi-band, both FM/AM, therefore suitable to communicate beyond national borders, adapting to European frequencies
●Large TFT colour display with easy to read messages
●Packed with functions PA,
●Dual Watch (to constantly monitor 2 channels)
●Roger Beep
●CTCSS/DCS funtion
●5K setting
●Scan range setting,
●Noise reduction function
●Noise reduction function
●Time out timer setting
●VOX function
…………
|
GENERAL
|
||||
|
Frequency Range
|
26.565-27.99125MHz
|
|||
|
Frequency Tolerance
|
±5.0ppm
|
|||
|
Input Voltage
|
12/24V
|
|||
|
Ferquency Control
|
PLL Synthesizer
|
|||
|
Operating Temperature Range
|
-20℃ TO + 55℃
|
|||
|
Current Drain
|
Transmit
|
3A MAX
|
||
|
Receive
|
Squelched 0.3A
|
|||
|
VOL Max
|
0.8A
|
|||
|
TRANSMITTER
|
||||
|
Power Output
|
4 Watts FM/AM
|
|||
|
Transmission interference
|
inferior to 4nW(-54dBm)
|
|||
|
Frequency Response
|
300-3000Hz
|
|||
|
Modulated signal distortion
|
inferior to 5%
|
|||
|
Output Impedance
|
50 ohms
|
|||
|
RECEIVER
|
||||
|
Sensitivity
|
Less than 1uV for 10dB(S+N)/N
|
|||
|
Image Rejection
|
70dB
|
|||
|
Adjacent Channel Rejection
|
60dB
|
|||
|
IF Frequencies
|
1st 10.695MHz
|
|||
|
2nd 455KHz
|
||||
|
Automatic Gain Control(AGC)
|
Less than 10dB change in audio
|
|||
|
Output for inputs from 10 to 50000uV
|
||||
|
Squelch
|
less than 1uV
|
|||
|
Audio Output Power
|
1Watts
|
|||
|
Frequency Response
|
300-3000Hz
|
|||
|
****Note: Specifications are subject to change without notice due to technical improvements.
|
||||
