Sale!
, ,

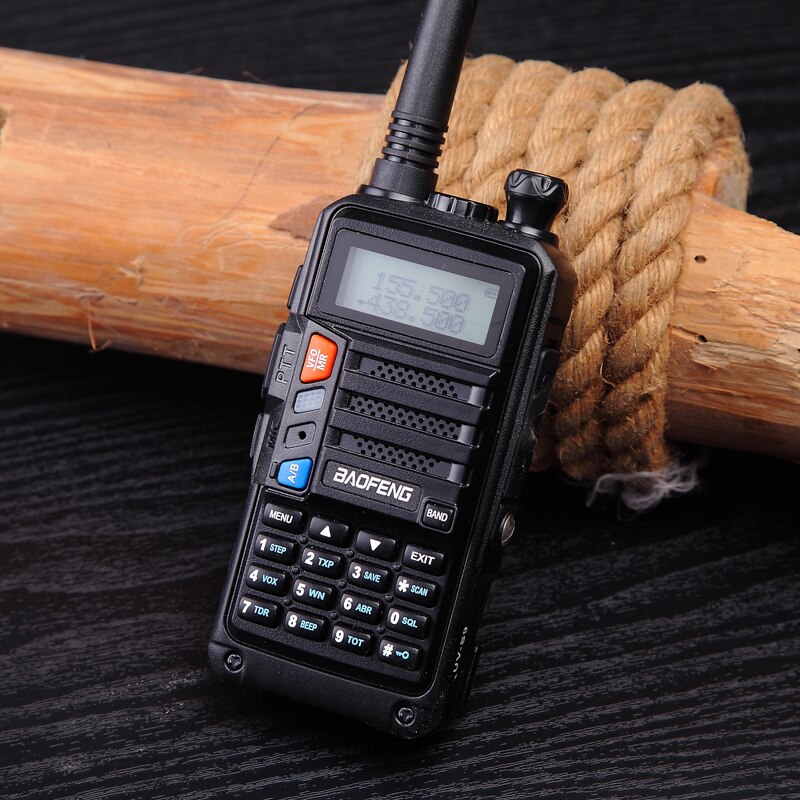

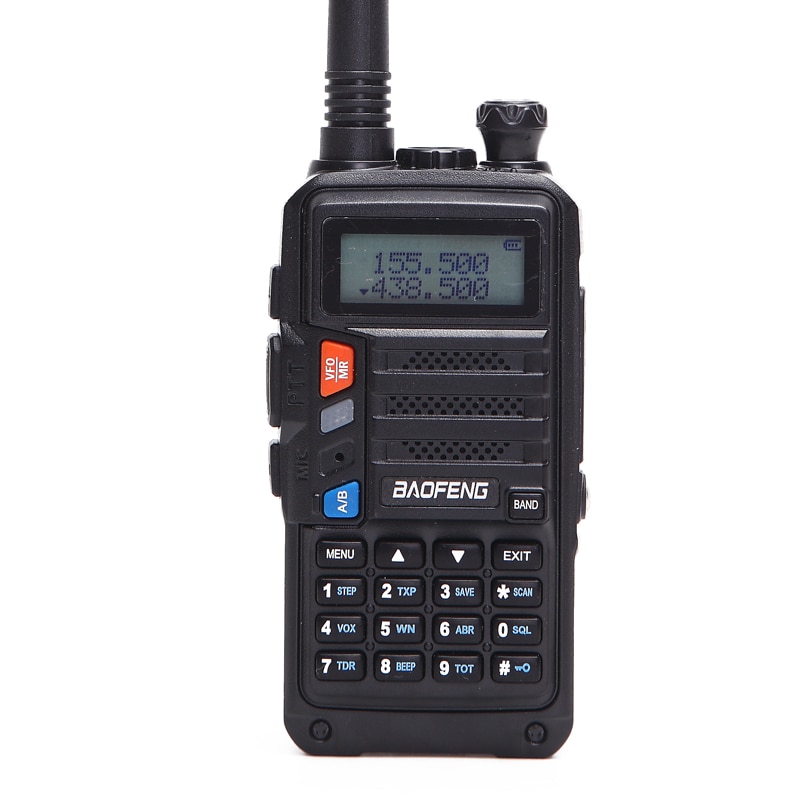

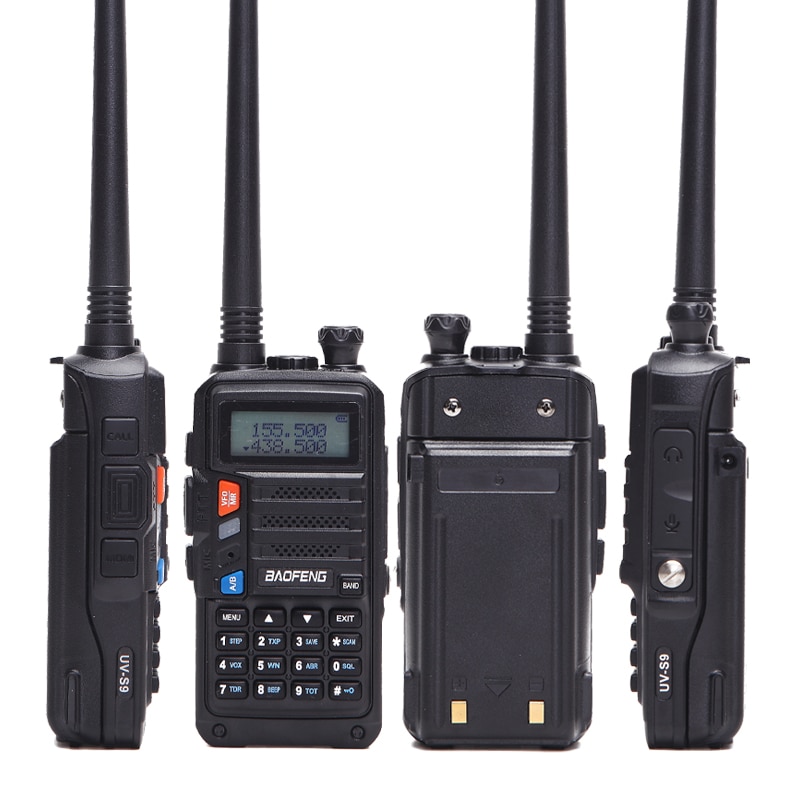

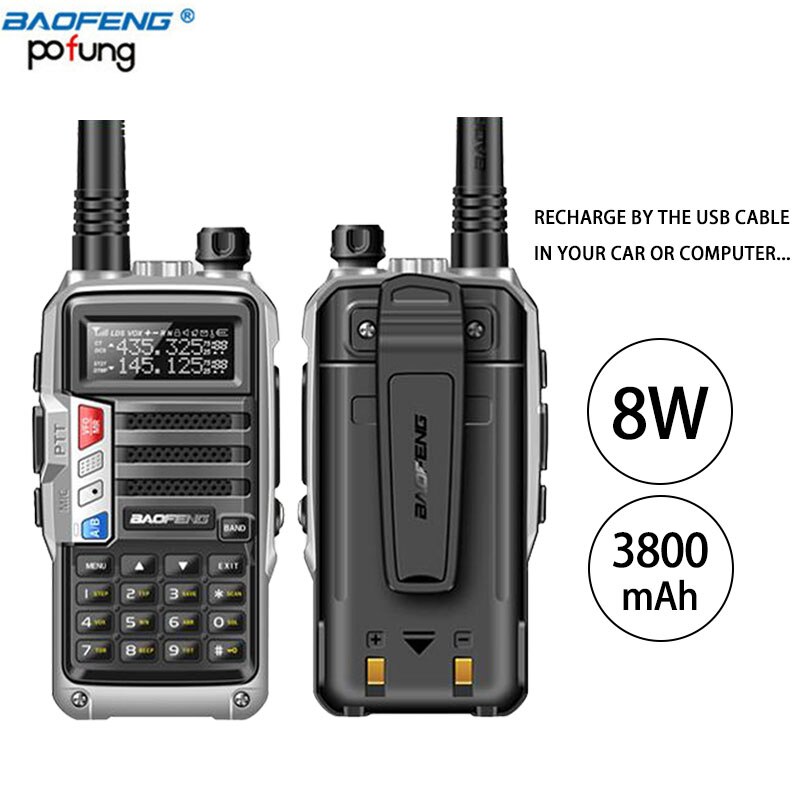

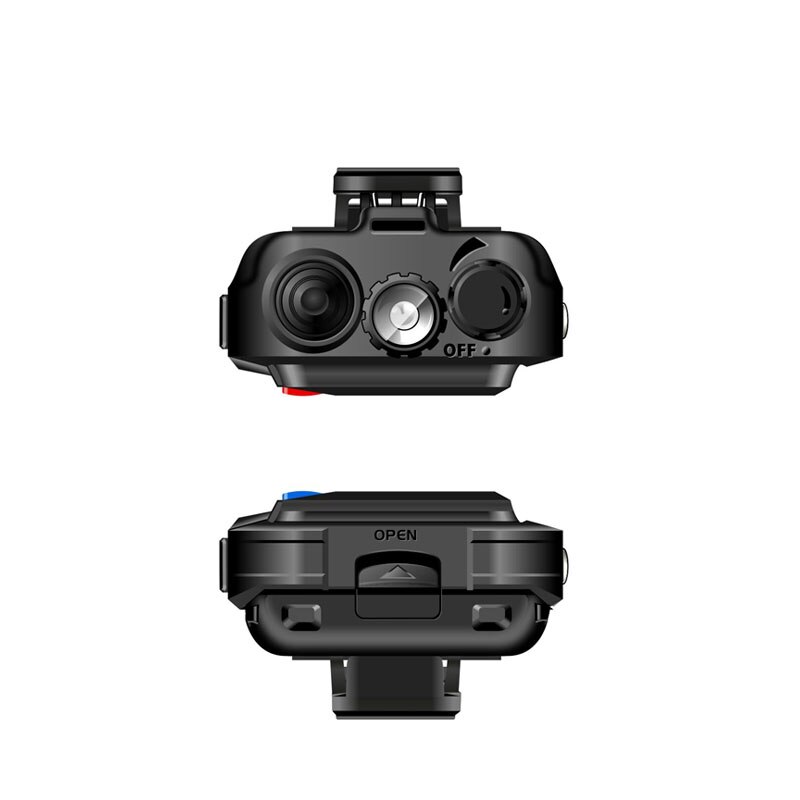

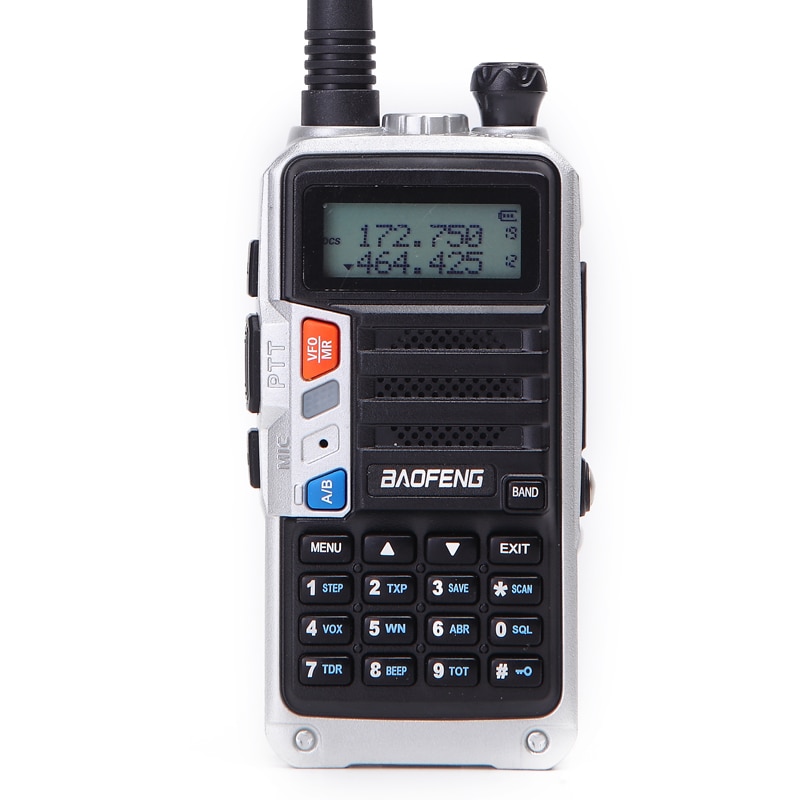

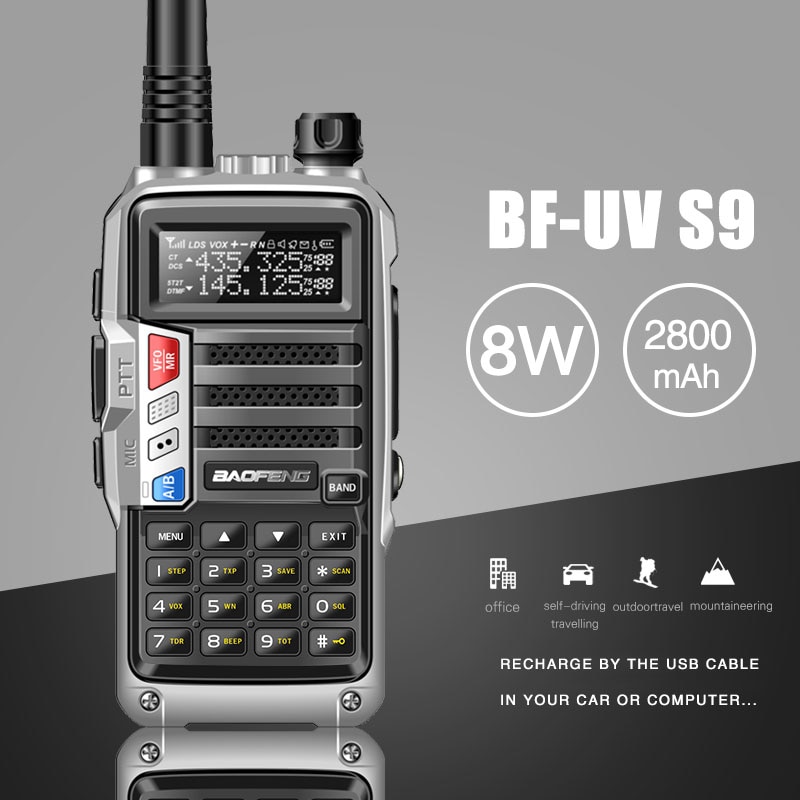

BAOFENG UV-S9 8W Powerful VHF UHF Dual Band Handheld Walkie Talkie CB Radio

$35.81$42.96

& Free Shipping
Guaranteed Safe Checkout

BAOFENG UV-S9 8W Powerful VHF/UHF136-174Mhz & 400-520Mhz Dual Band 10KM Thicken battery Walkie Talkie CB Radio NA-701

Feature:

1.   100% Brand New & Never Used

2.   Dual-band handheld transceiver with display function menu on the display “LCD”

3.   DTMF encoded

4.   Lithium-ion battery with high capacity

5.   Commercial FM radio receiver (65MHz~108MHz)

6.   Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable

7.   Function “VOX”(voice operated transmission)

8.   Alarm function

9.   Up to 128 memory channels

10.   Broadband (Wide)/Narrowband (Narrow), selectable

11.   High/low power selectable

12.   Display illumination and programmable keyboard

13.   Function “beep” on the keyboard

14.   Dual Watch/dual reception

15.   Selectable Frequency Step

16.   Function “OFFSET” (frequency offset for repeater access)

17.   Battery saving function

18.   Timer transmission “TOT” programmable

19.   Selecting the Scan Mode

20.   Busy Channel Lock

21.   Built-in RX CTCSS/DCS scan

22.   Built-in LED flashlight

23.   Programmable by PC

24.   Level Threshold “Squelch” adjustable from 0 to 9

25.   Cross band reception

26.   Tone end of transmission

27.   Built-in key lock



Specification:

                                             General

Frequency range

VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception)

Memory channels

Up to 128 channels

Frequency stability

2.5ppm

Frequency step

2.5/5/6.25/10/12.5/25KHz

Antenna impedance

50 OHM

Operating temperature

-20°C-60°C

Supply voltage

Rechargeable Lithium-Ion 7.4V

Battery Capacity

2800mAh

Consumption in standby

<=75mA

Consumption in reception

380mA

Consumption in transmission

<=1.4A

Mode of operation

Simplex or semi-duplex

Dimensions

110x58x32mm

Weight

130g(approximate)

                                           Transmitter

RF power

8W/1W

Modulation type

FM

Emission class

16K  øF3E/11KøF3E(W/N)



Maximum deviation

<=±5KHz/<=±2.5KHz(W/N)



Spurious emission

<-60dB



                                           Receiver



Receiver sensitivity

0.2µV (at 12 dB SINAD)



Inter modulation

60dB



Audio output

1000mW



Adjacent channel selectivity

65/60dB

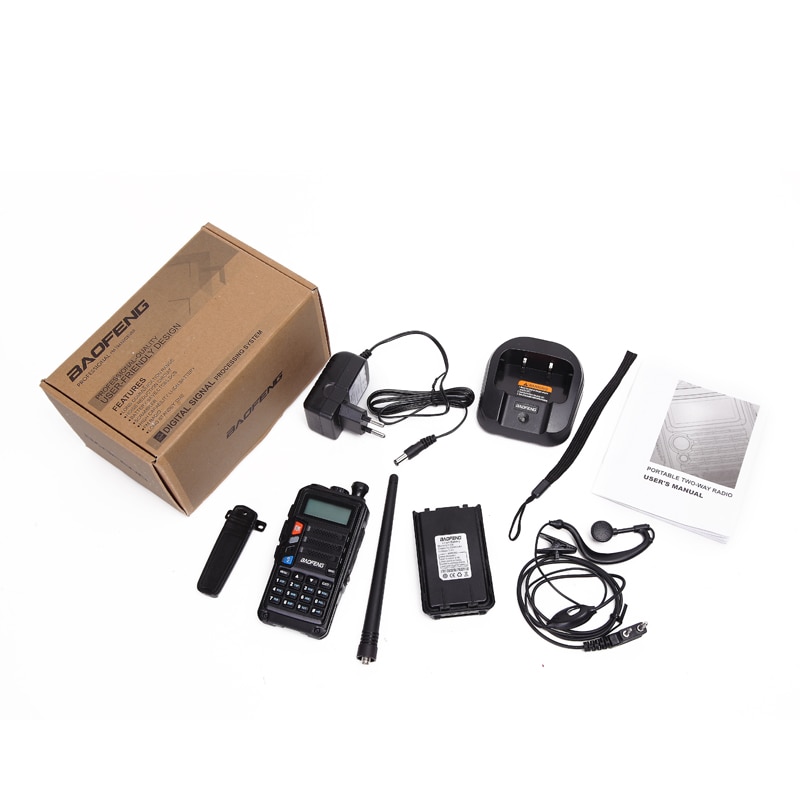

Package include:

·        1 X Portable radio

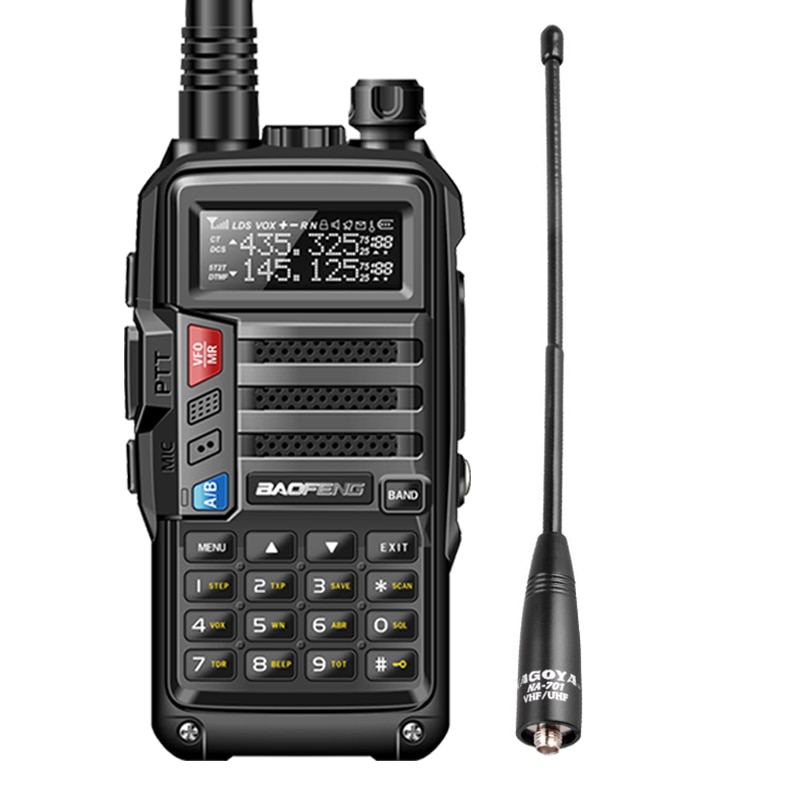

·        1 X Inductively loaded antenna

·        1 X 2800mAh Li-ion battery pack

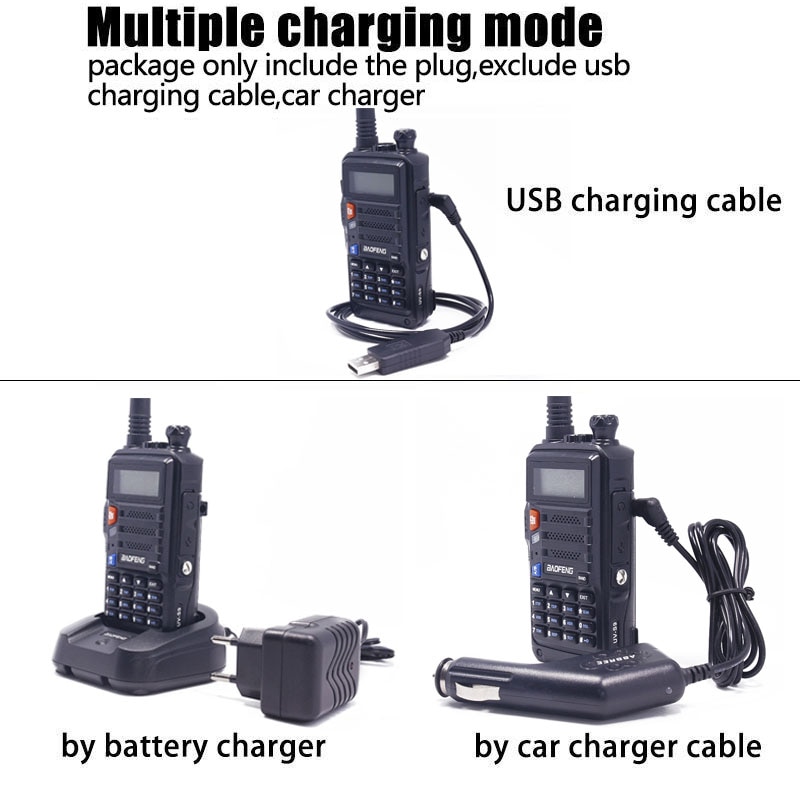

·        1 X LI-ion charger

·        1 X Belt clip

·        1 X The Sling

·        1 X User’s manual



UV-S9UV-S901-1 10115354379464445

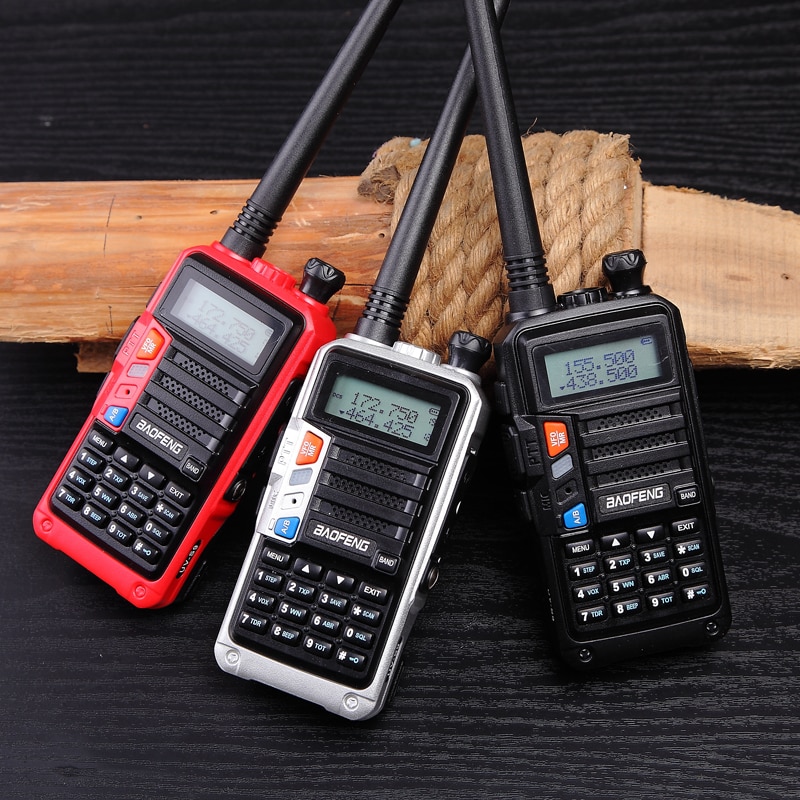

Color

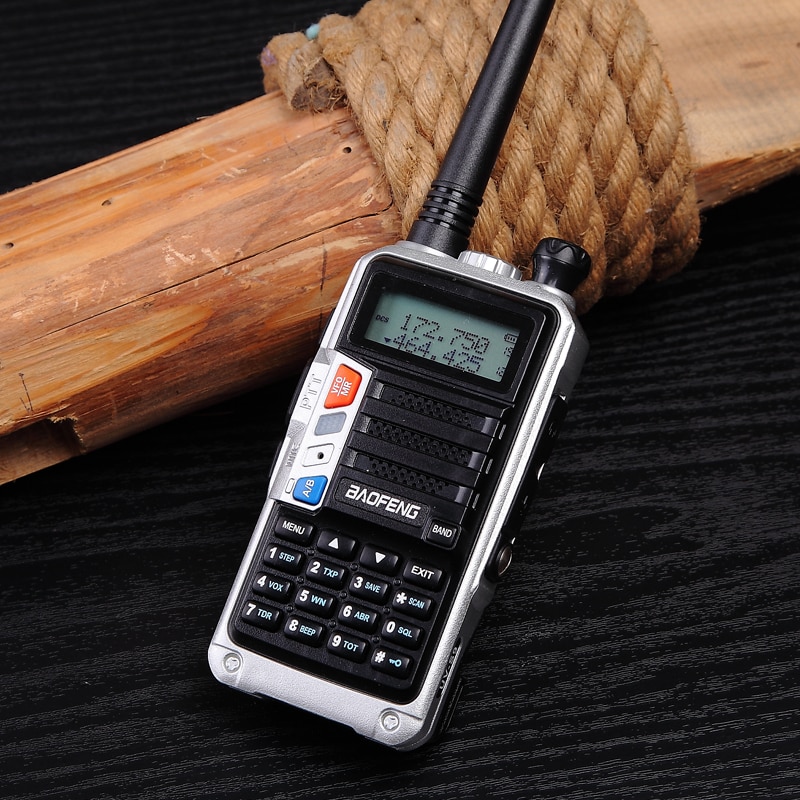

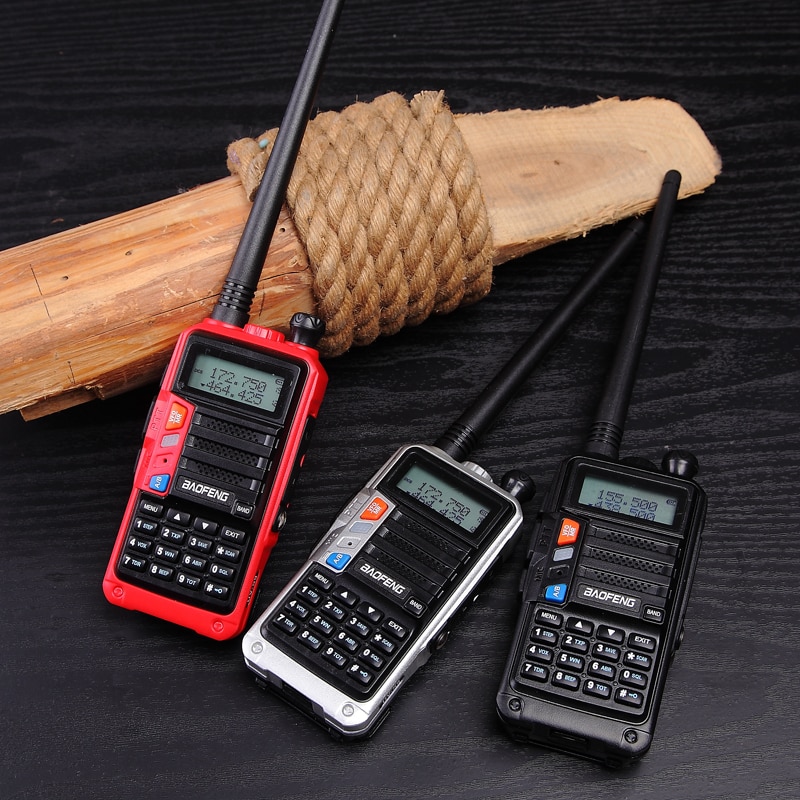

black add antenna, black add carcharger, black add speaker, black add usb cable, black radio, sliver add antenna, sliver add speaker, sliver add usb cable, sliver addcarcharger, sliver radio

Plug standard

American, Australia Standard, BRITISH, EURO
