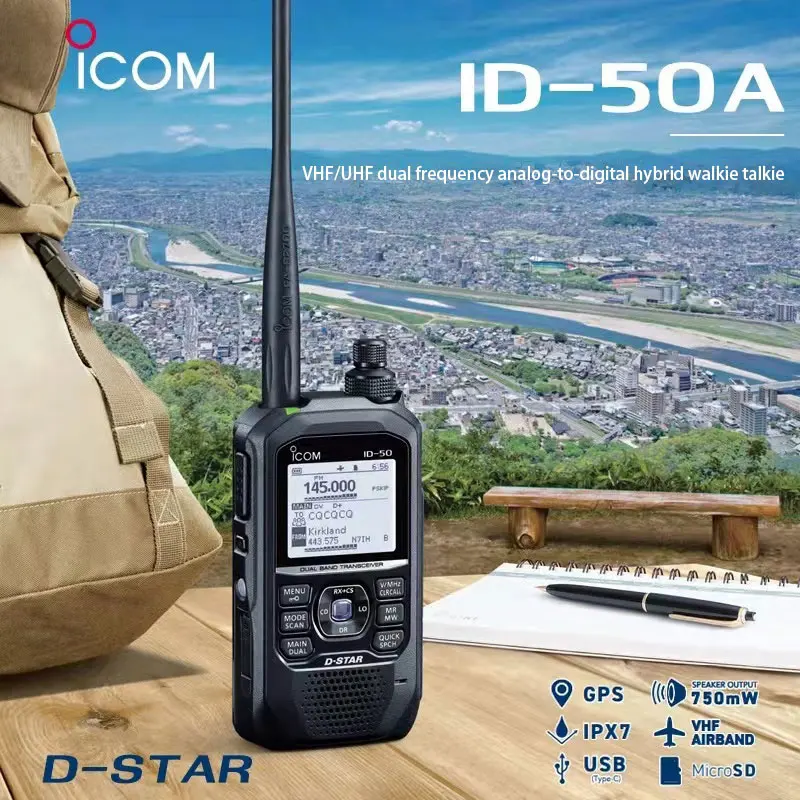

ICOM ID-50A D-STAR Digital Outdoor IPX7 Waterproof Walkie Talkie GPS VHF AIR BAND Micro SD

Parameters:

Brand: ICOM

Model: ID-50A

Equipment type: Handheld walkie talkie

Battery: 1880mAh

Communication modes: DV, FM, FM-N,
WEM,AM,AM-N

Emission types: F2D, F3E, F7W

Transmission frequency: 144~148430~450

Receiving frequency:
(A) 108~174,375~479*
(B)137~174,375~479*
88.0~108.0 broadcast, capable of receiving aviation

Memory channels: 500 memory channels
4 call channels
25 scanning edges
100 skip channels
500 radio stations
List of 2500 repeaters
300 call signs and 300 GPS memory

Frequency step: 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, and 200 kHz

Working temperature range: -20 ° C to+60 ° C
Frequency stability: ± 2.5ppm (based on 20 ° C)
-60°C~+25°C)

Antenna impedance: 50 Ω (SMA)

Power supply requirements:
1. Battery pack: 7.4V DC (using BP-271/BP-272)
2. Alkaline battery: 5.5V DC (including BP-273)
3. External DC: 10-16V DC

Current consumption (at 7.4V DC)
Emission: less than 2.5 A
Reception: Less than 400mA
(FM, FM wide) (8 Ω), less than 450mAh (DV) (8 Ω)

Output power: 5W, 2.5W, 1W, 0.5W, 0.1W (high, medium, low 2, low 1, S-low)

Sensitivity: Frequency modulation with DV less than 0.2 μ V (at 1% BER), frequency modulation – N less than 0.18 μ V (at 12 dB SINAD)

Equipment size:
58.0x1110x27.9mm host
58.0 x 111.0 x33.0mm
Including BP-272 battery

Weight approximately: 300g (including BP-272 battery and antenna)

Description:

IPX7 is waterproof and can be soaked for 30 minutes at a depth of 1 meter underwater. Even in harsh environments, you can use it to participate in outdoor activities

Share image function to expand the fun of QSO. You can share pictures with each other in DV mode. Photos on Android devices can be edited and shared on the image software ST-ID50A. Windows PC can also be used with ST-ID50W via a microSD card or USB cable. Before sending photos to others, you can view your photos on the ID-50A display screen.
*The shared image function requires an optional image utility software ST-ID50A (on Google Play) ™ Above) or ST-ID50W (downloaded from the lcom website) and the USB Type-C to USB Type-C cable provided by the user.

Build your own Internet gateway. Even in areas without D-STAR repeaters, you can also establish your own Internet gateway (using terminal mode and access point mode *) to access the D-STAR network almost anywhere. It is easy to build access points by connecting ID-50A to PC or Android connected to the Internet ™ Device, you will be able to enable another D-STAR radio user to communicate over the air through the D-STAR network.
*The access point mode requires RS-MS3W optional software (downloaded from the Icom website) and a USBType-C to USB Type-C cable provided by the user.
Terminal mode requires RS-MS3A optional application software (on Google Play) ™ (Download) and the USB Type-C to USB Type-C cable provided by the user.
