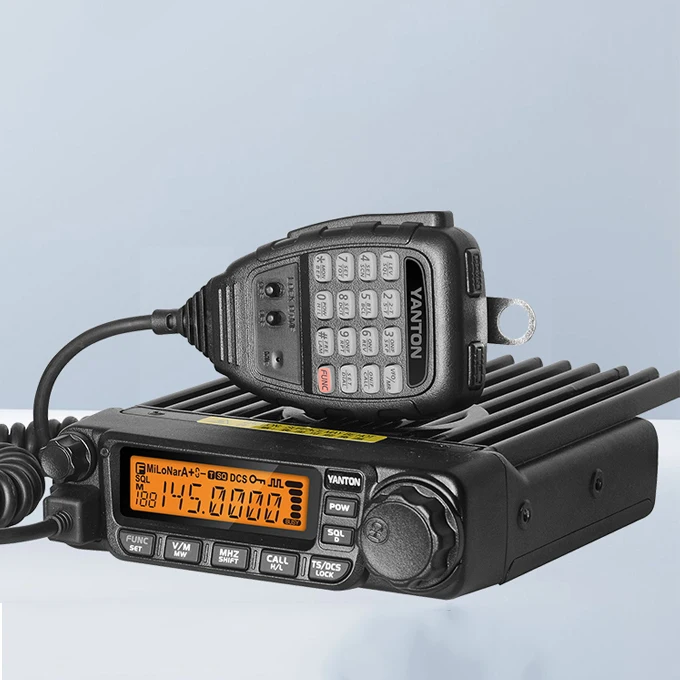

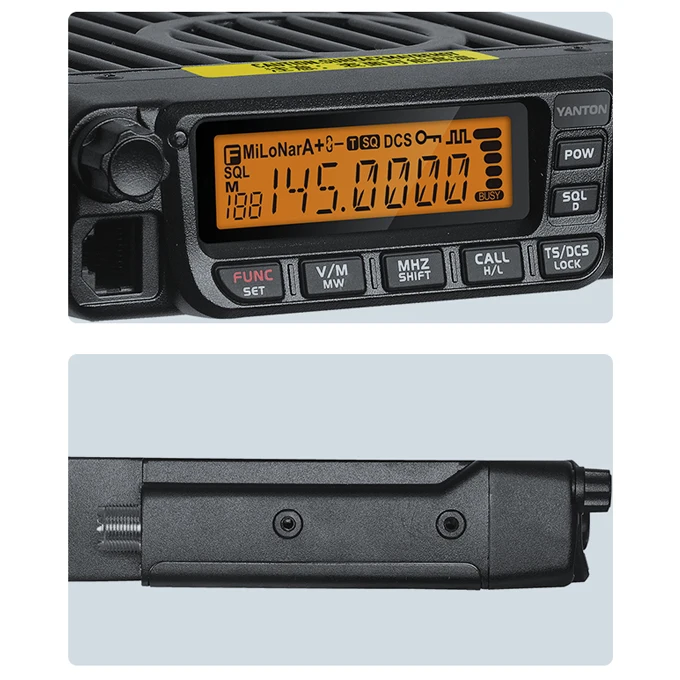

Free Shipping Yanton TM-8600 FM walkie talkie VHF 60W UHF 45W UHF400-480MHz mobile radio talkie-walkie 25KM
1.CTCSS/DCS setting & scanning
2. 1750Hz Tone
3.High/Mid/Low power selectable
4.Voice compander
5.ANI ID
6.DTMF/2 tone/5 tone
7. Remote kill/ stun/ activate/ revive
8.Emergenvy alarm
9.Wide/Narrow band setting
GENERAL
|
|||
Frequency Range
|
136-174/245-246/400-490MHz
|
||
Operating Temperature
|
2.5ppm
|
||
Operating Temperature
|
-20℃~+60℃
|
||
Operating Voltage
|
13.8VDC±15%
|
||
Memory Channel
|
199channel
|
||

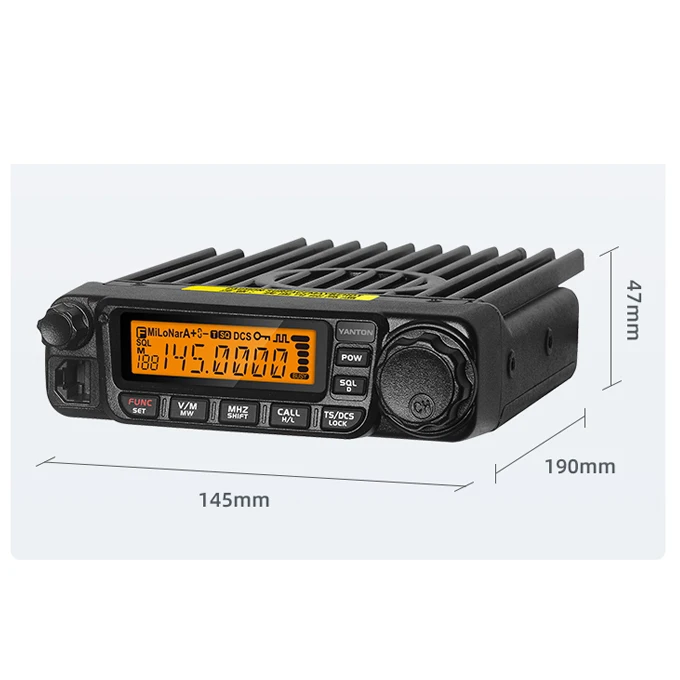

Dimension(HxWxD)
|
145mmX190mmX47mm
|
||
Weight(with bracket)
|
1200g
|
||
TRANSMIT PART
|
|||
RF power
|
45W/25W/10W(UHF)
60W/25W/10W(VHF) |
||
Frequency modulation
|
11kΦF3E/16kΦ F3E
|
||
Modulation distortion
|
<5%
|
||
FM noise
|
≥36dB@KHz
≥40KHz@25KHz |
||
Adjacent Channel Power Audio Distortion |
≥60dB 12.5KHz ≥70KHZ 25KHz |
||
RECEIVER PART
|
|||
Adjacent channel selectivity
|
0.25v/0.35v
|
||
Inter-modulation Rejection
|
≥60dB/≥65dB
|
||
Spurious Response Rejection
|
≥70dB
|
||
Rated Audio Response
Rated audio distortion |
+1-+3dB <5%
|
||
FM Hum &Noise
|
≥40d25KHz
≥45KHz12.5KHz |
||
FM Hum &Noise
|
≥40dB 25KHz
≥45KHz 12.5KHz |
