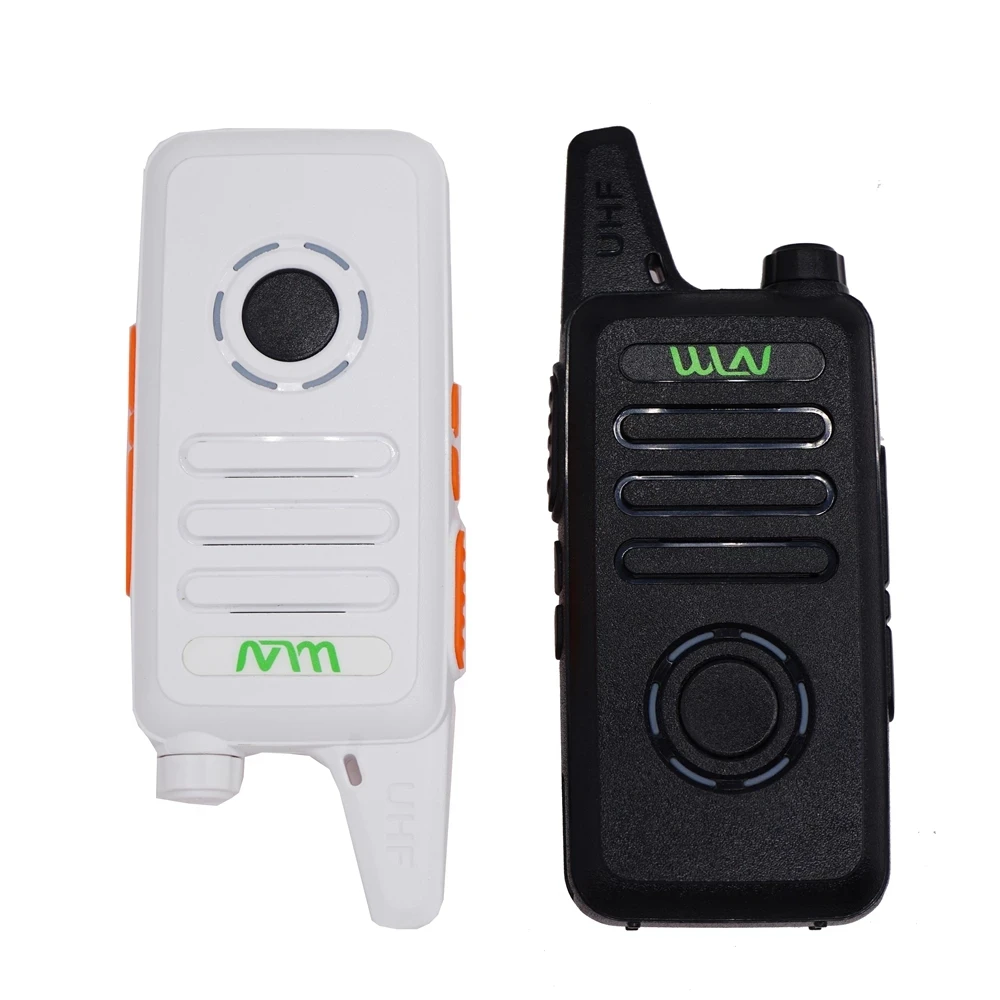

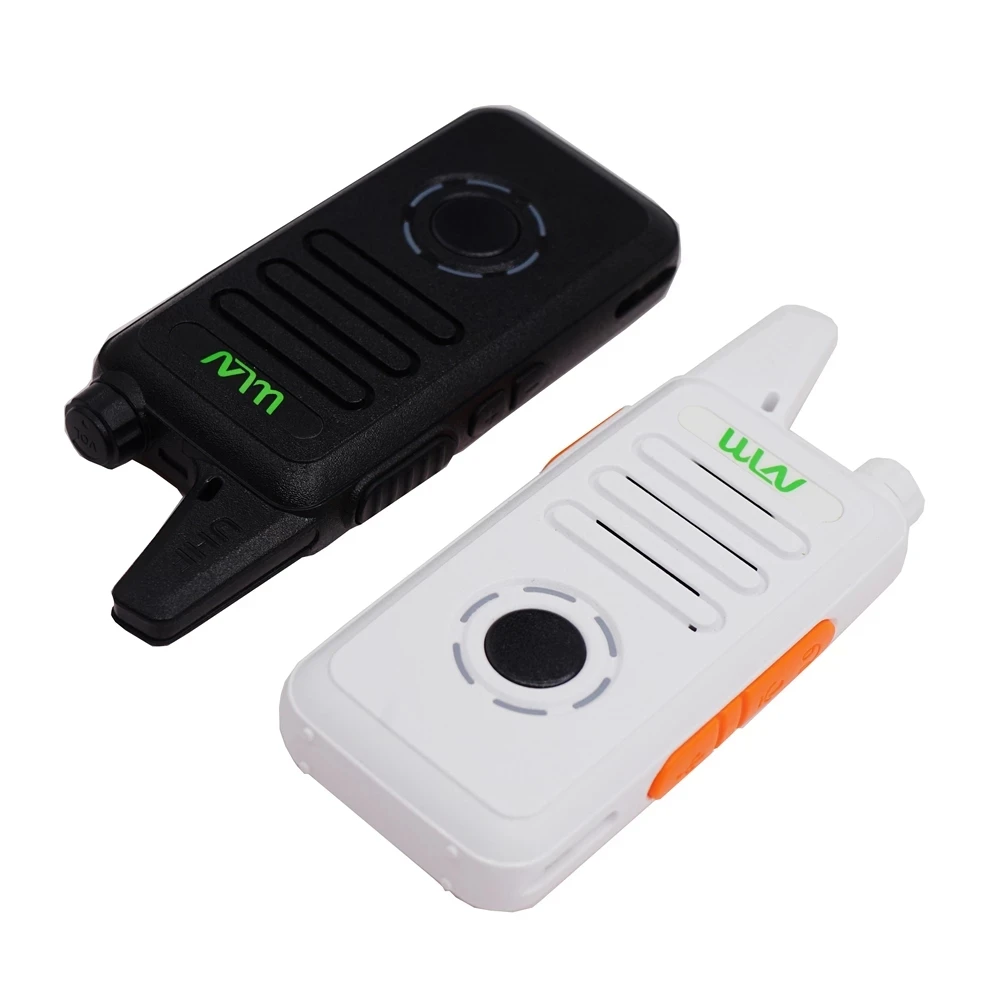

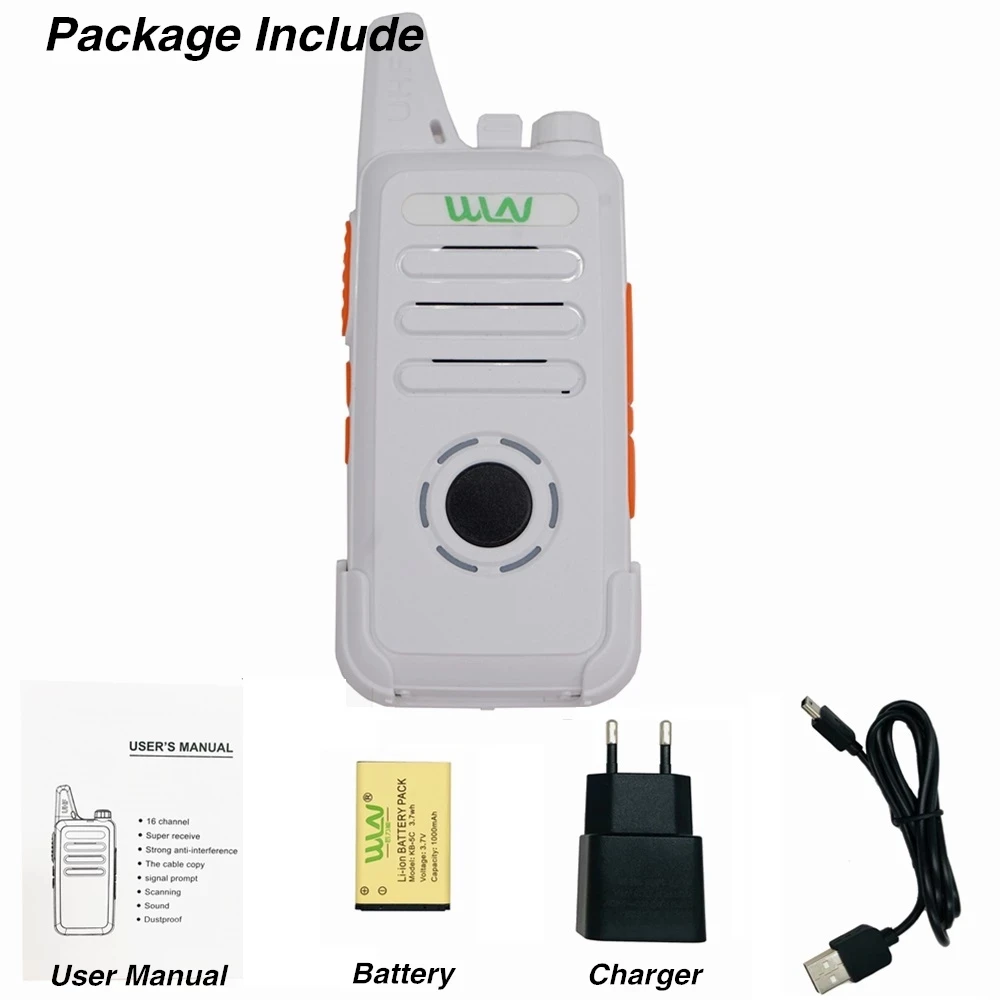

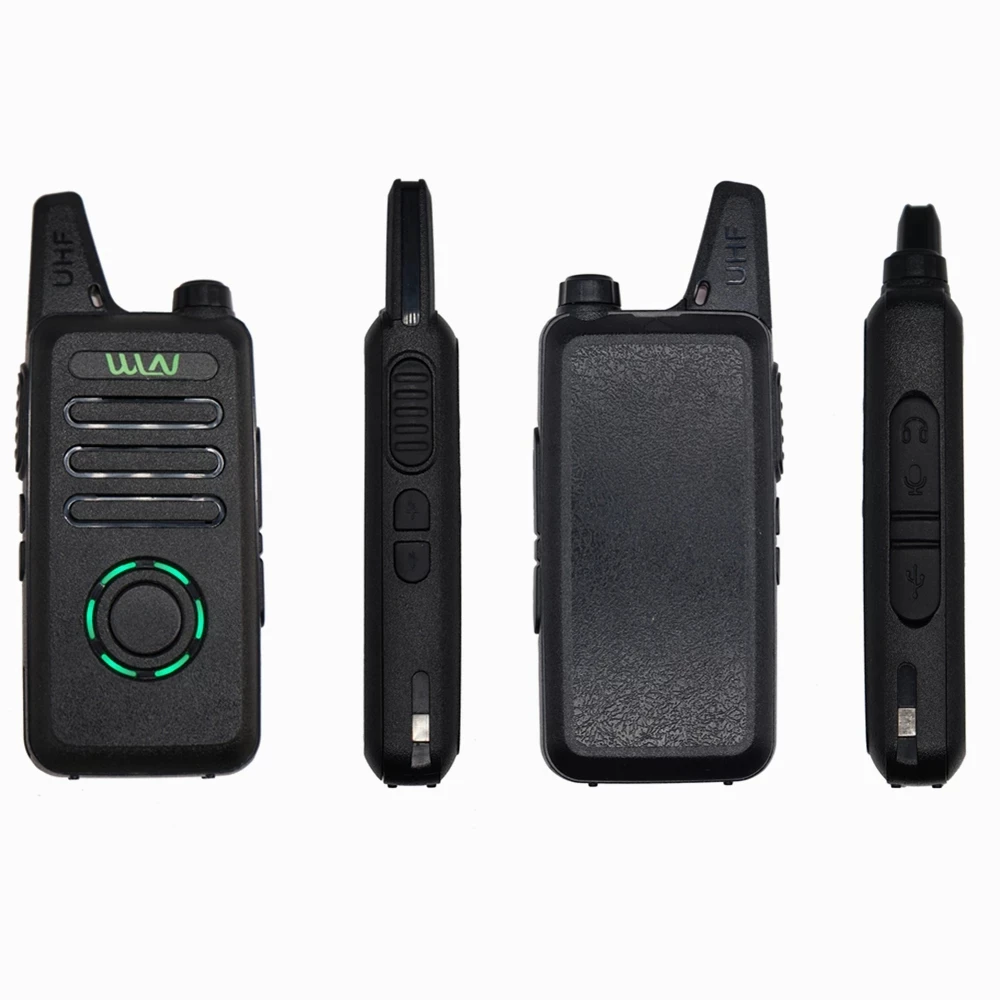

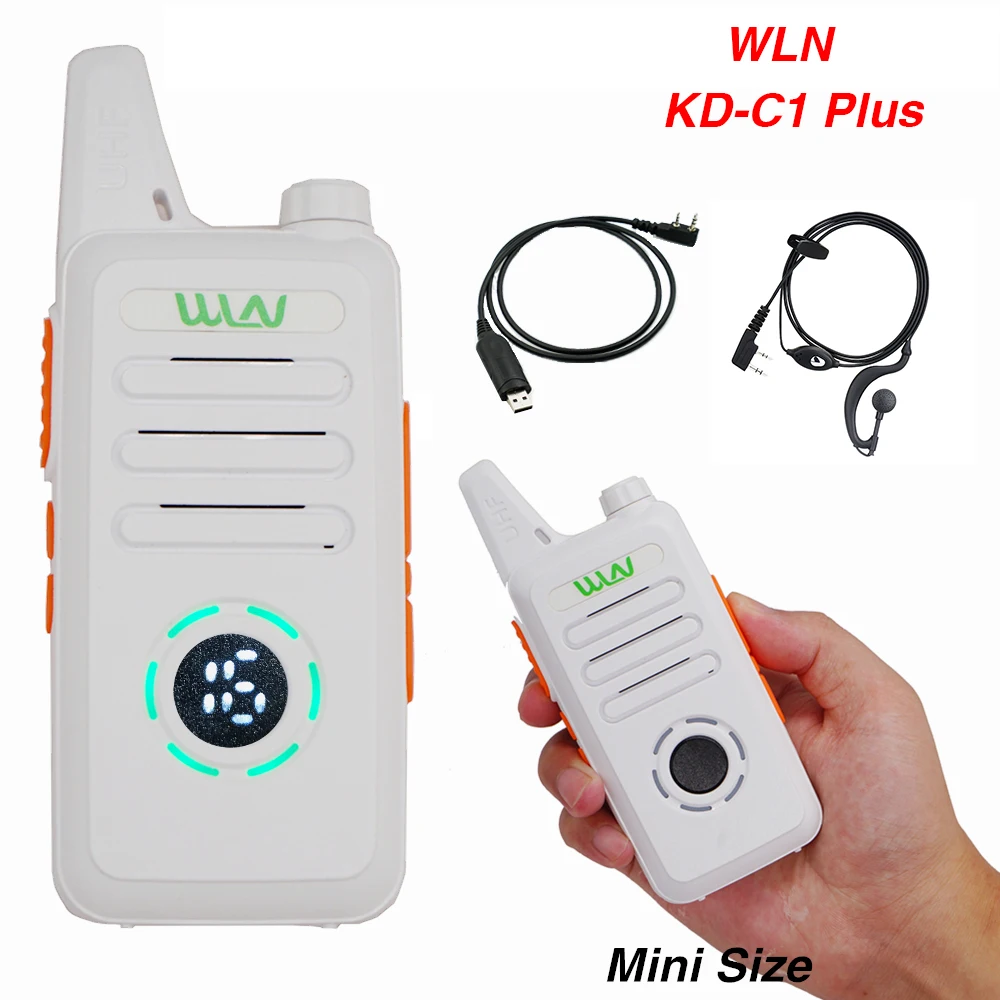

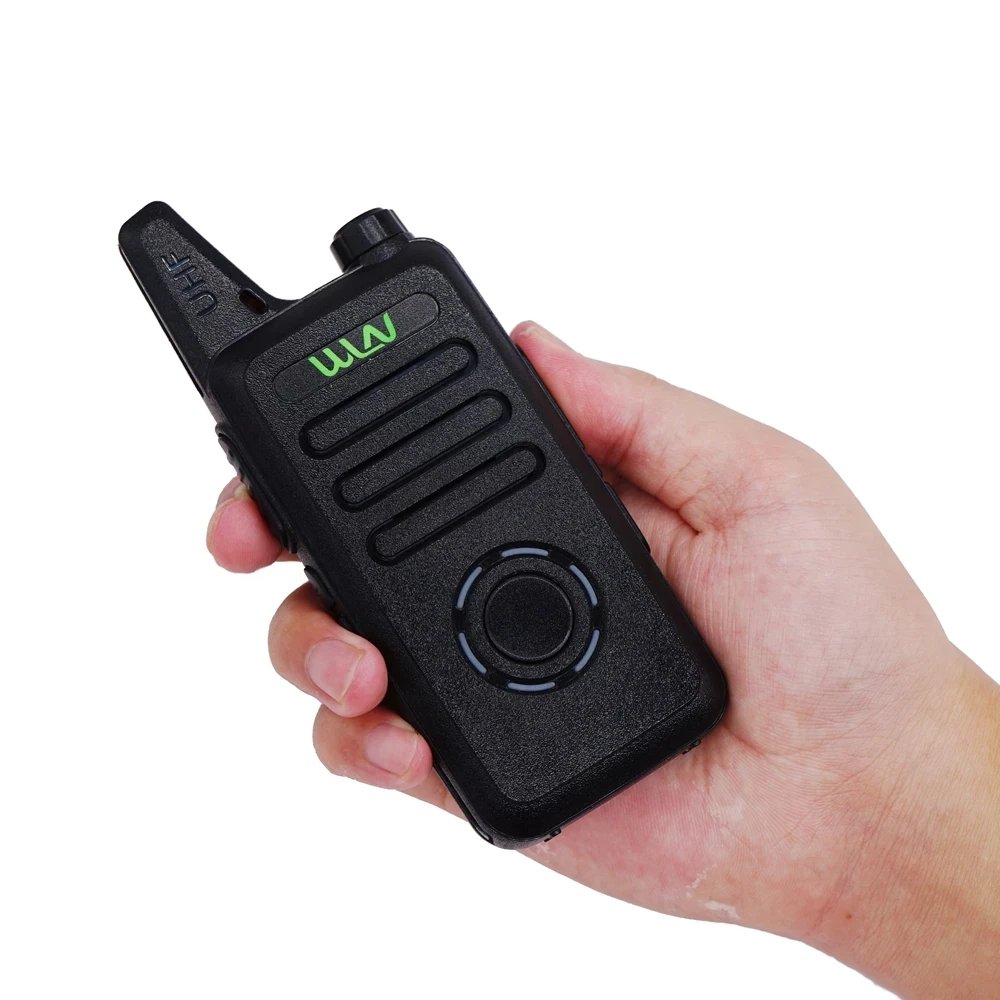

2pcs WLN KD-C1 Plus Mini Handheld Transceiver KD C1 Two Way Radio Ham Communicator Radio Station 16 Channel Mini Walkie Talkie
Main feaures:
Channel Display
Remote Alarm
Scanning
Monitoring
VOX
TOT
Keyboard Lockout
Busy Channel Lockout
High Low Power Selection
Cycle indicator Fashion Design
Chinese/English Voice Prompt
Power Saving Mode
Low Battery Warning
Voice Companding
Scrambling Function
Programming Encryption Function
Special Signaling
50 CTCSS / 208DCS
Specification:
General Specifications
Frequency Range :UHF 400-470MHz
Channel Capacity :16
Channel Spacing :25KHz
Operated Voltage :3.7 V
Battery :1500MAh Li-ion
Battery Life(5-5-90 duty cycle) : About 8 hours
Frequency Stability :±2.5ppm
Operated Temperature : -30°c-+60°c
Antenna Impedance : 50Ω
Dimensions (L×W×H) (with battery,without antenna) :110×50×32 mm
Weight (with battery/antenna) :125g
Communication Range : about 6km
Transmitter
RF Power Output : <5W
Modulation : F3E
Spurious Emission : ≤65dB
FM Noise : ≤-45dB(W) ≤-40dB (N)
Audio Distortion : ≤5%
Transmitting Current : ≤1.3A
Receiver
Sensitivity (12dB SINAD) : ≤0.20 uV
Selectivity : 55dB/50dB
Intermodulation : ≥65dB
Adjacent Channel Selectivity: ≥60dB
Spurious Response : ≥60dB
FM Noise : 45dB/40dB
Audio Power Output : 1000mW
Audio Distortion : ≤5%
Standby Current : ≈15mA (with battery save on)
