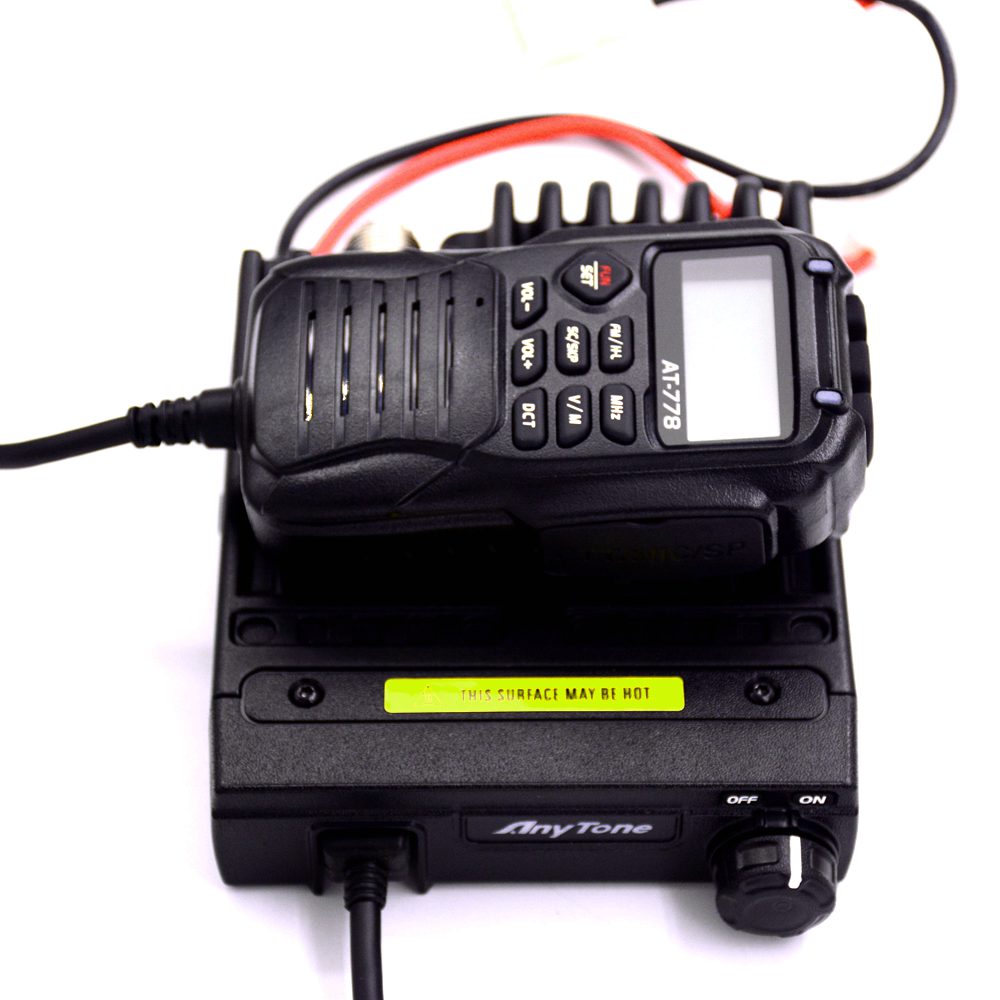

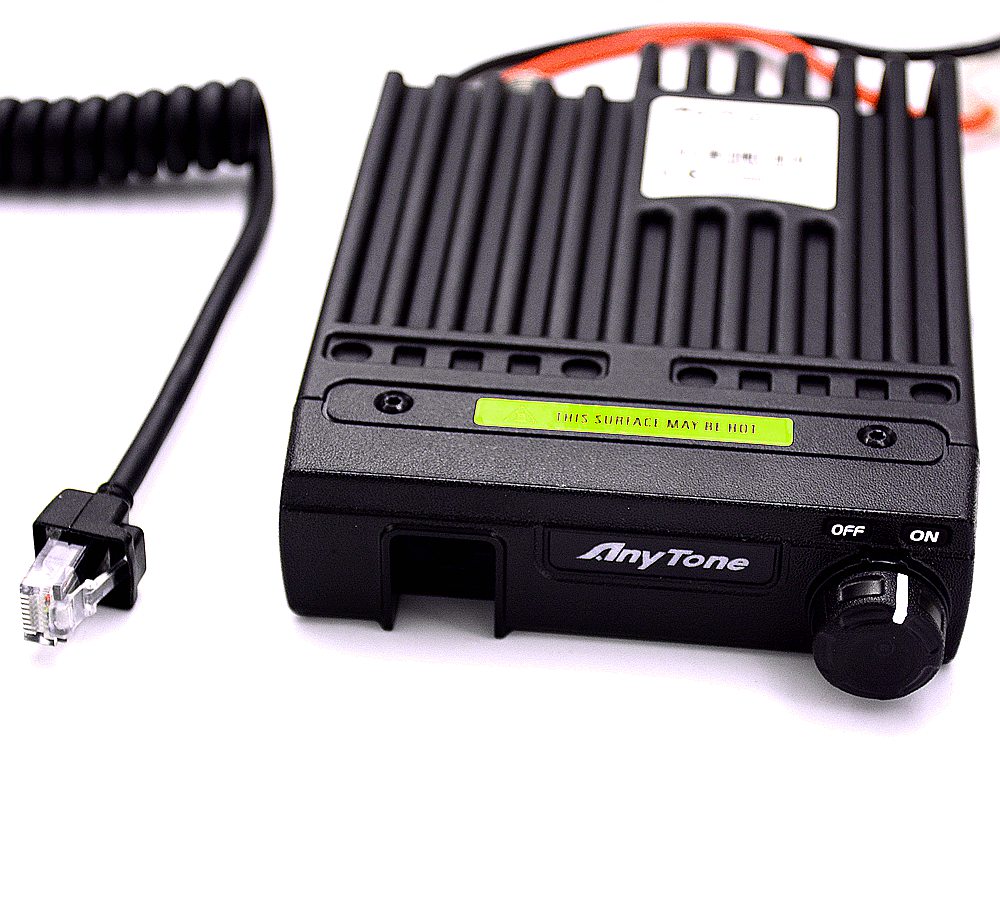

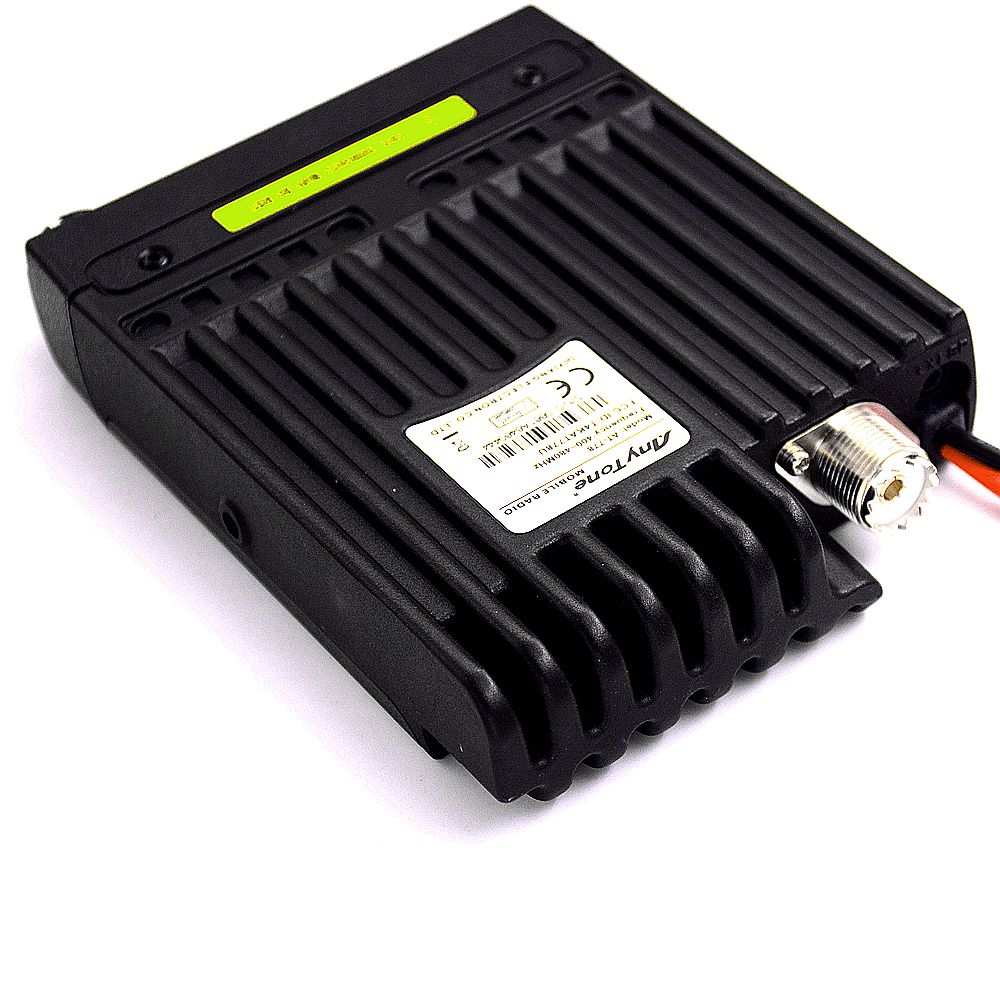

Anytone AT-778 Mobile Radio 512CH Wide Band 400-490MHz 25W Transmit Power Amateur/Professional Mode Anytone Car Intercom Radio

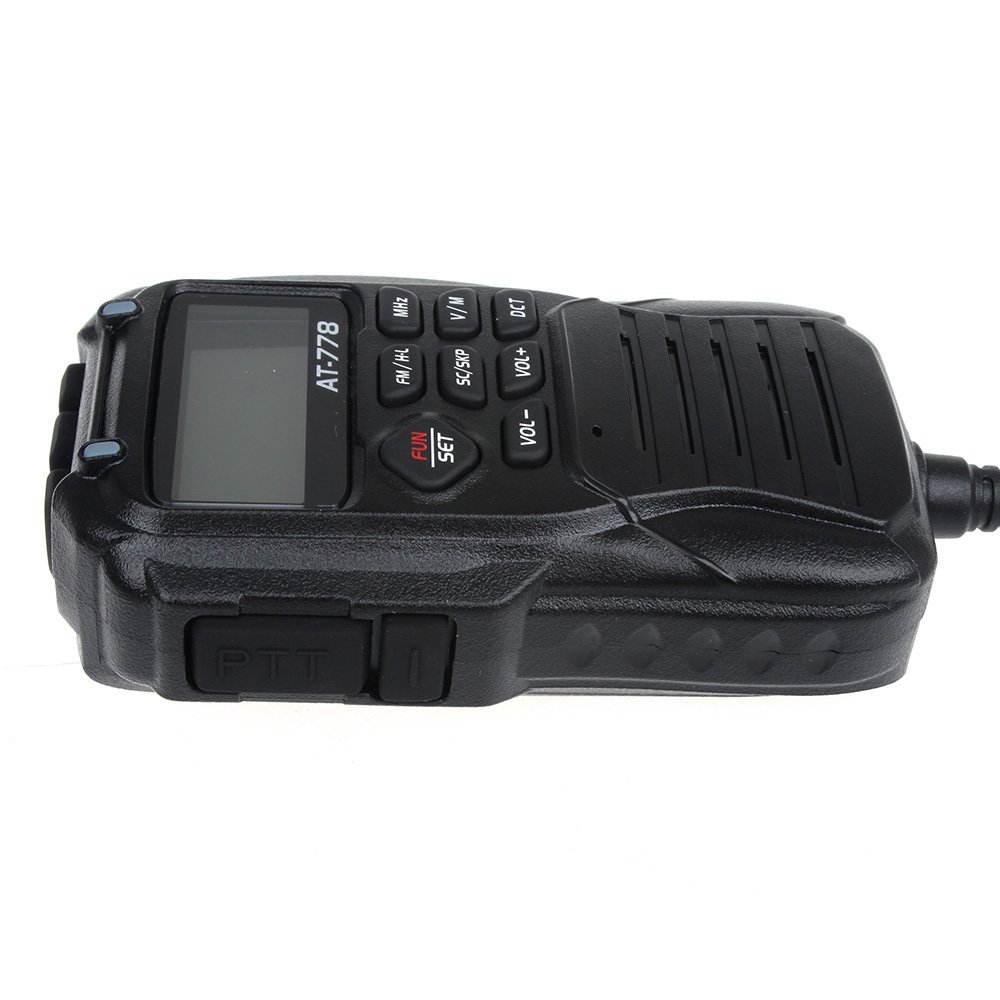

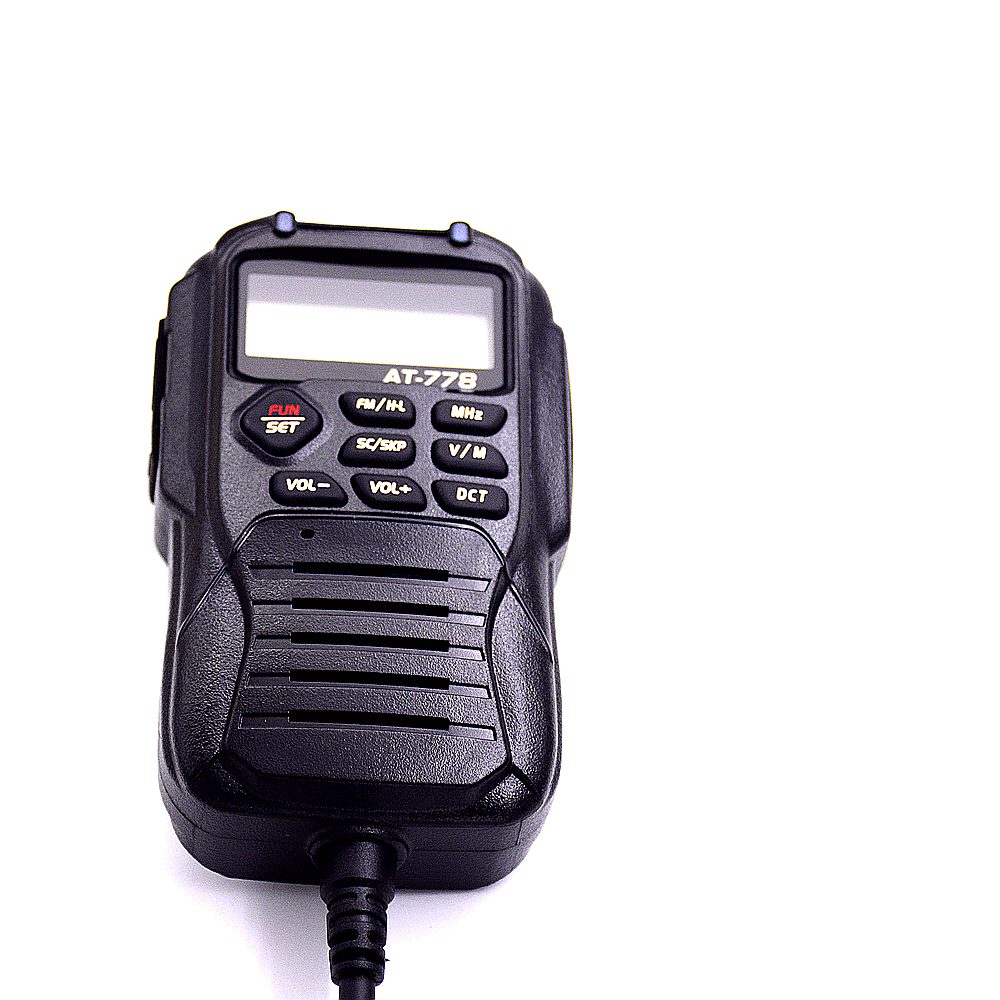

- ALL Control and display by Microphone

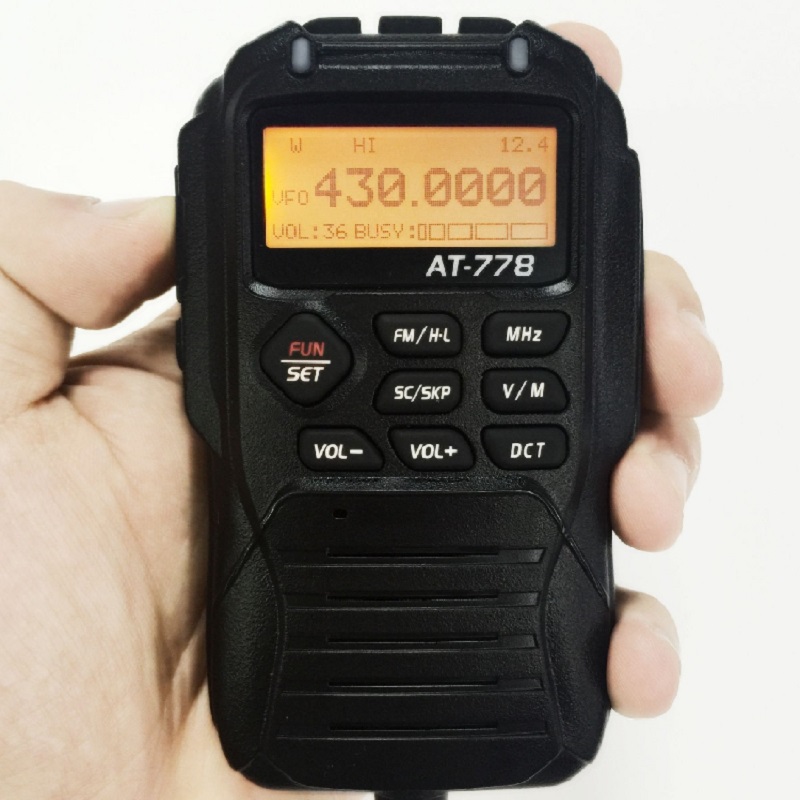

- Display on microphone LCD with adjustable brightness,convenient for nighttime use
- 512ch,identiied by editing name
- Distribute buttons reasonably,convenient for operation,Adopt superior quality material,better technology and high quality radiator to ensure stable and durable operation
- Sperate CTCSS,DCS setting for each single channel,rejecting extra calling from other radios,Various scan function indluding CTCSS/DCS Scan function, Seperate band width setting for each single channel
- AT778 Mobile radio has nice housing,stoutness and stability,advanced and reliable functions.This amateur mobile radio especially design for drivers and it pursues company philosophy of innovation and practicality.
Â
More functions as follows:

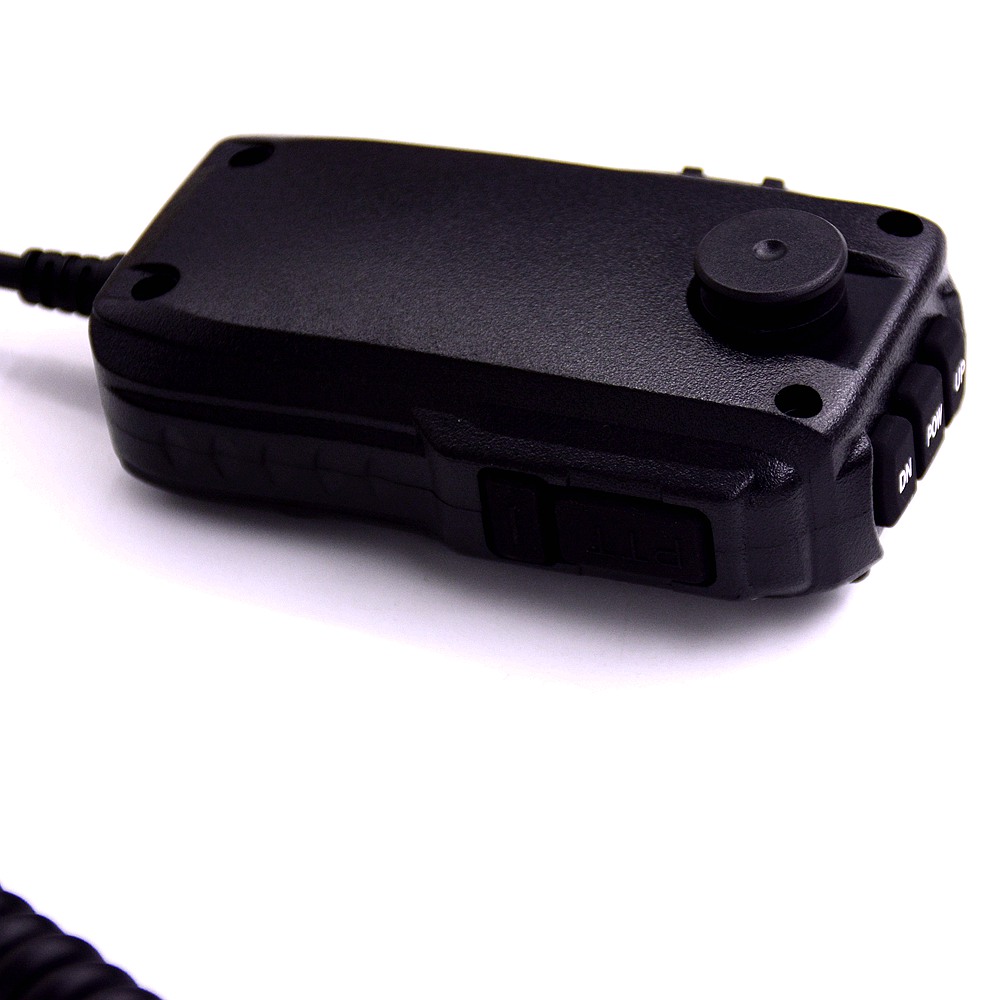

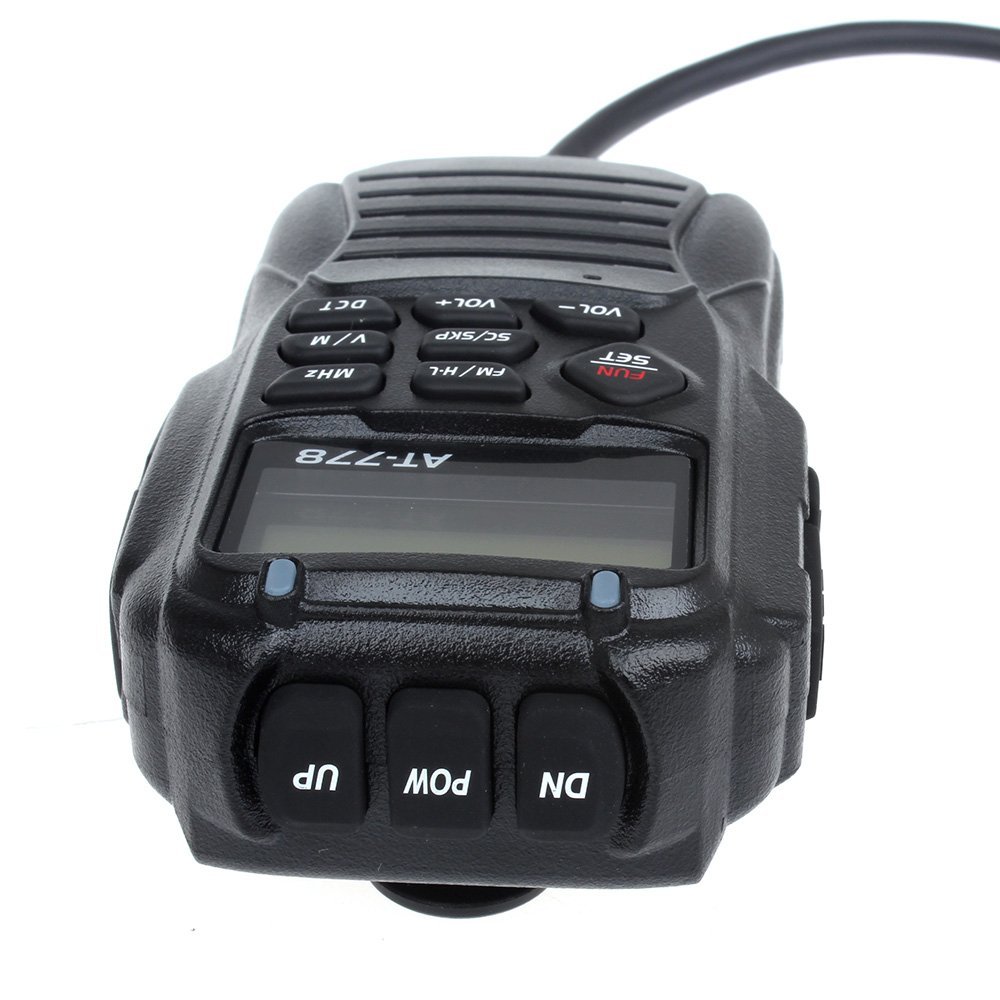

- ALL Control and display by Microphone
- Display on a large LCD with adjustable brightness,convenient for nighttime use
- Distribute buttons reasonably,convenient for operation
- Adopt superior quality material,better technology and high quality radiator to ensure stable and durable operation
- 512ch,identiied by editing name
- Sperate CTCSS,DCS setting for each single channel,rejecting extra calling from other radios
- Various scan function indluding CTCSS/DCS Scan function
- Seperate band width setting for each single channel
- Programming RB/CALL Function
- 3 backlight color lcd
- SQ/VOL/Voltage level display
- FM Radio receiver
Feature:
- VFO frequency mode and Channel mode switch
- Frequency scan function
- Channel scan function
- Transmitting audio signal
- Channel delete
- Squelch off momentary
- CTCSS/DCS encode and decode setup
- DCS Scan
- FM Radio and two way radio mode switch
- Power level control
- offset direction and offset frequency setup
- Keypad lockout
- Signaling combination setup
- High/middle/low power selection
- Band-width selection
- Busy channel lock-out (BCL)
- Rogger beep
- Audio signaling call setup
- Edit channel name
- TX OFF/ON
- Reverse TX/RX
- Talk around
- Frequency Step Selectable 5/6.25/8.33/10/12.5/20/25/30/50KHz
- Squelch level setup
- Display mode setup
- APO Setup
- Pilot frequency
- Time-out timer (TOT)
- Scan dwell time setup
- Mic gain setup
- LCD Contrast ratio setup
- Backlight brightness/color setup
- Voice prompt setup
- Automatic power on(AOP)
- PC software programmable,usb cable is not includes in package
- Reset factory default
- CE RoHS Certificate
Specification:
(This is the module for 400-480MHz  wide band module,Not narrow band 136-174MHz ,and please click here if you need wide band version.)
Â
                                      All of our item are brand News
Brand                                  protech
Model                                 AT778
Frequency Range                         UHF:400-480MHz/
Output power                            25W/15W/5W
Channel capacity                          512
Channel Spacing                          25/20/12.5KHz
Frequency Spacing                        5/6.25/8.33/10/12.5/20/25/30/50KHz
Operating Voltage                         13.8V DC±15%
Squelch way                             CTCSS/DCS/carrier
Frequency stability                         ±5ppm
Working Temperature                       -20°C—+60°C
Color                                   Black
Dimension(Exclude antenna) Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 112(W)x30(H)x14.2(D)mm
Weight(Include Battery) Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 498g
                                      Transmitter(ETSI EN 300 086 Standardized.Test)
Parameter                               Broadband                               Narrowband
Sensitivity                                <=0.25µV                                <=0.35µV
Channel choice                            >=70dB                                 >=60dB
Intermodulation                            >=65dB                                 >=60dB
Suprious Rejection                          >=70dB                                 >=70dB
Audio response                            +1~-3dB(0.3~3KHz)                         +1~-3dB(0.3~2.55KHz)
Signal to noise ratio                         >=45dB                                  >=40dB
Audio Distortion                            <=5%
Audio output power                         >=2W
                                       Receiver(ETSI EN 300 086 Standardized.Test)
Parameter                               Broadband                               Narrowband
Modulation Mode                          16KΦF3E                                11KΦF3E
Channel Power                            >=70dB                                  >=60dB
Signal to noise ratio                         >=40dB                                  >=36dB
Parasitic harmonic                          >=60dB                                  >=60dB
Audio response                            +1~-3dB(0.3~3KHz)                         +1~-3dB(0.3~2.55KHz)
Audio distortion                            <=5%
Â

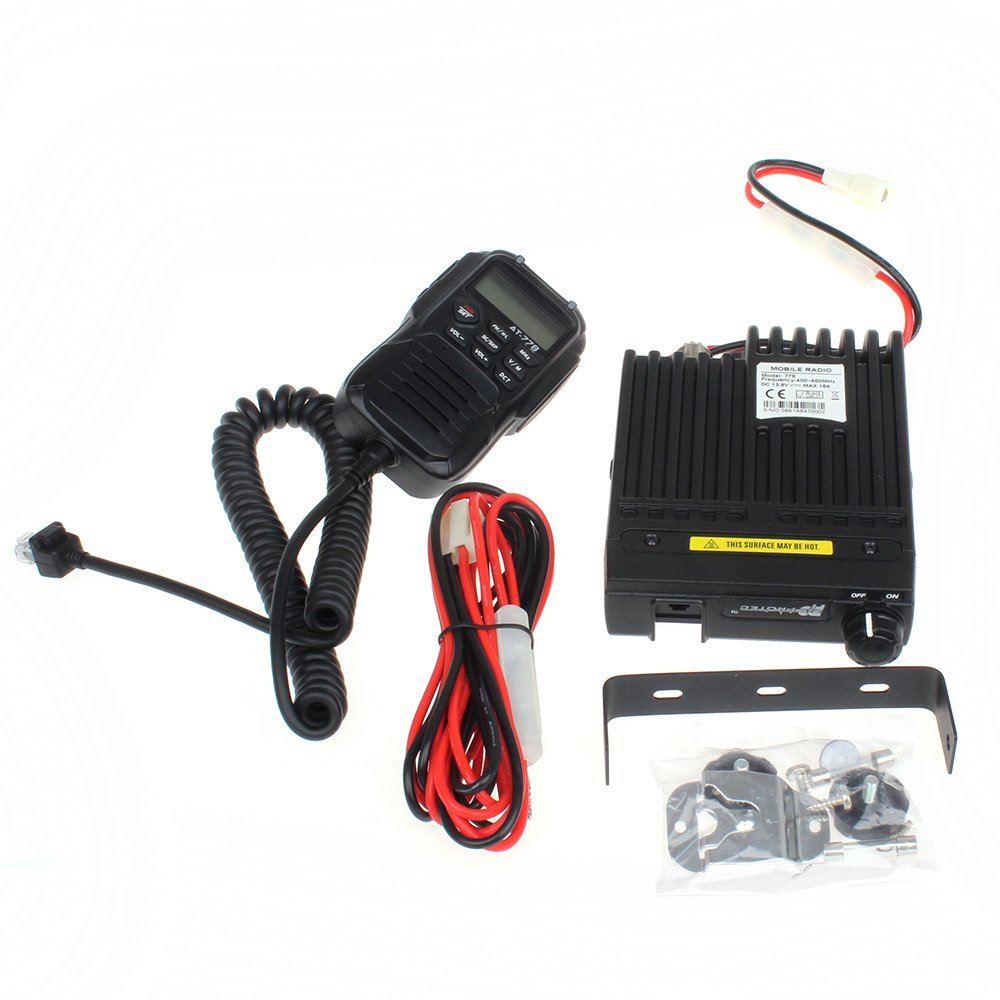

Packing List:
1X AT-778 mobile radio
1X Handheld Microphone
1X Mounting bracket& screw kit
1X Power cable
1X User’s manual
Â
Â
Â
Â
