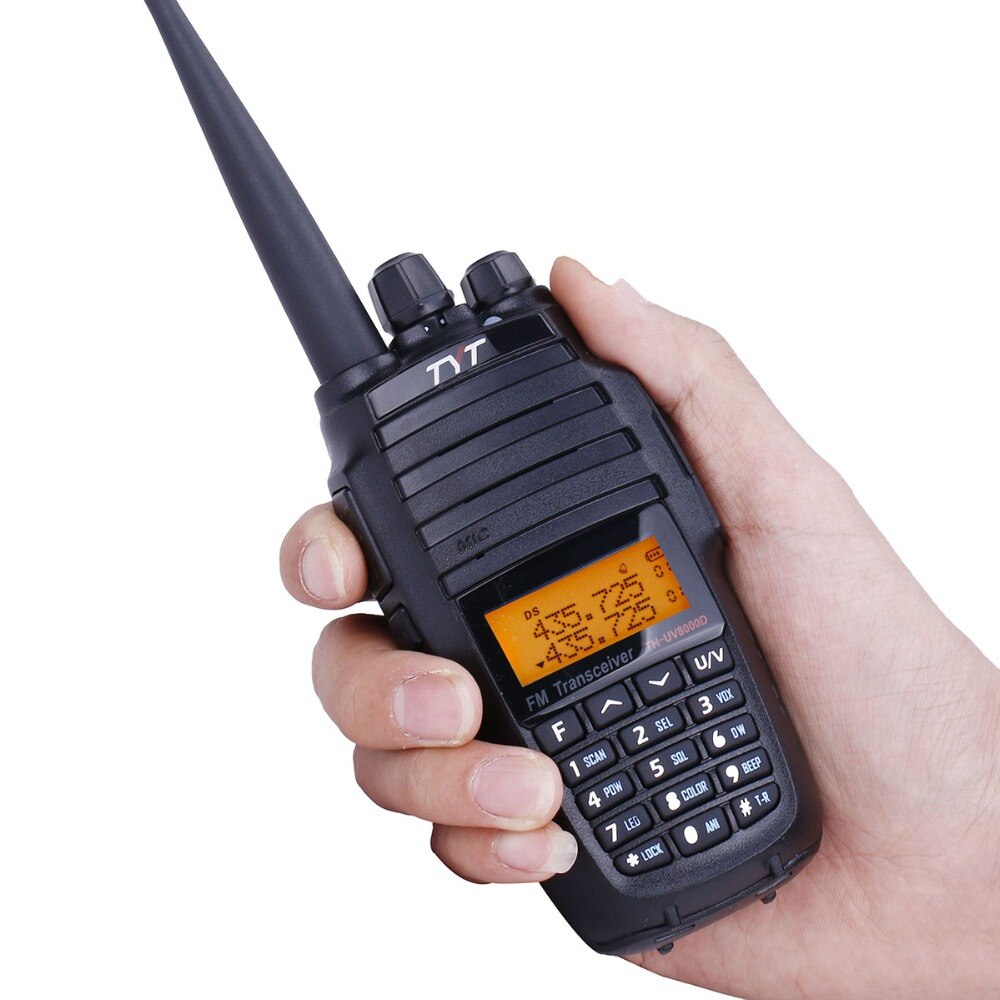

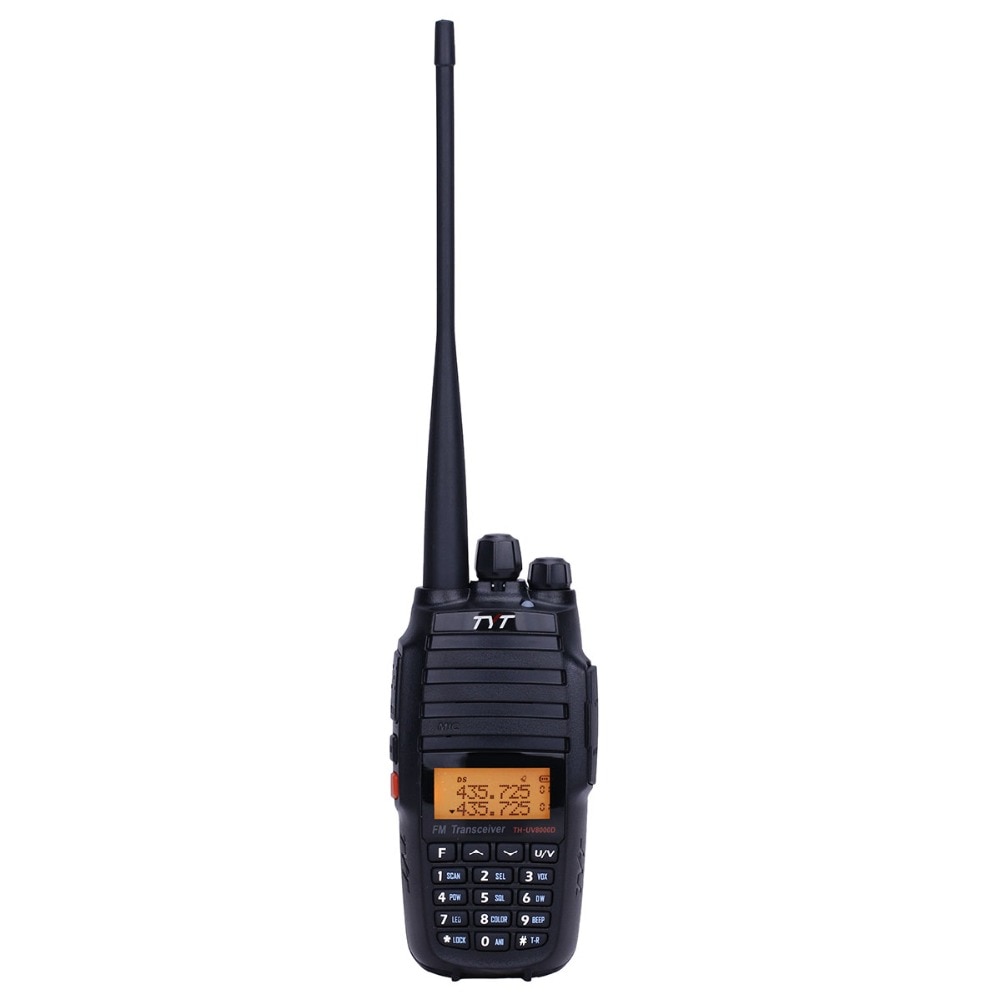

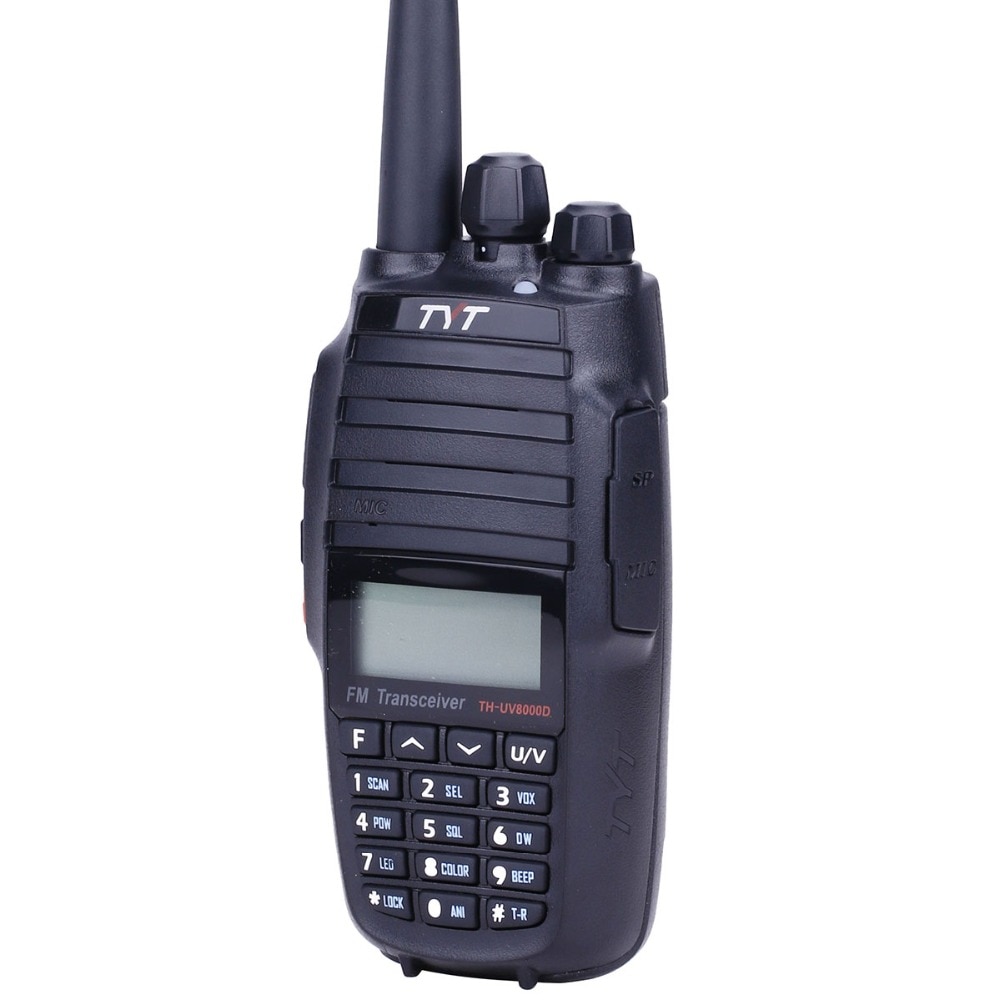

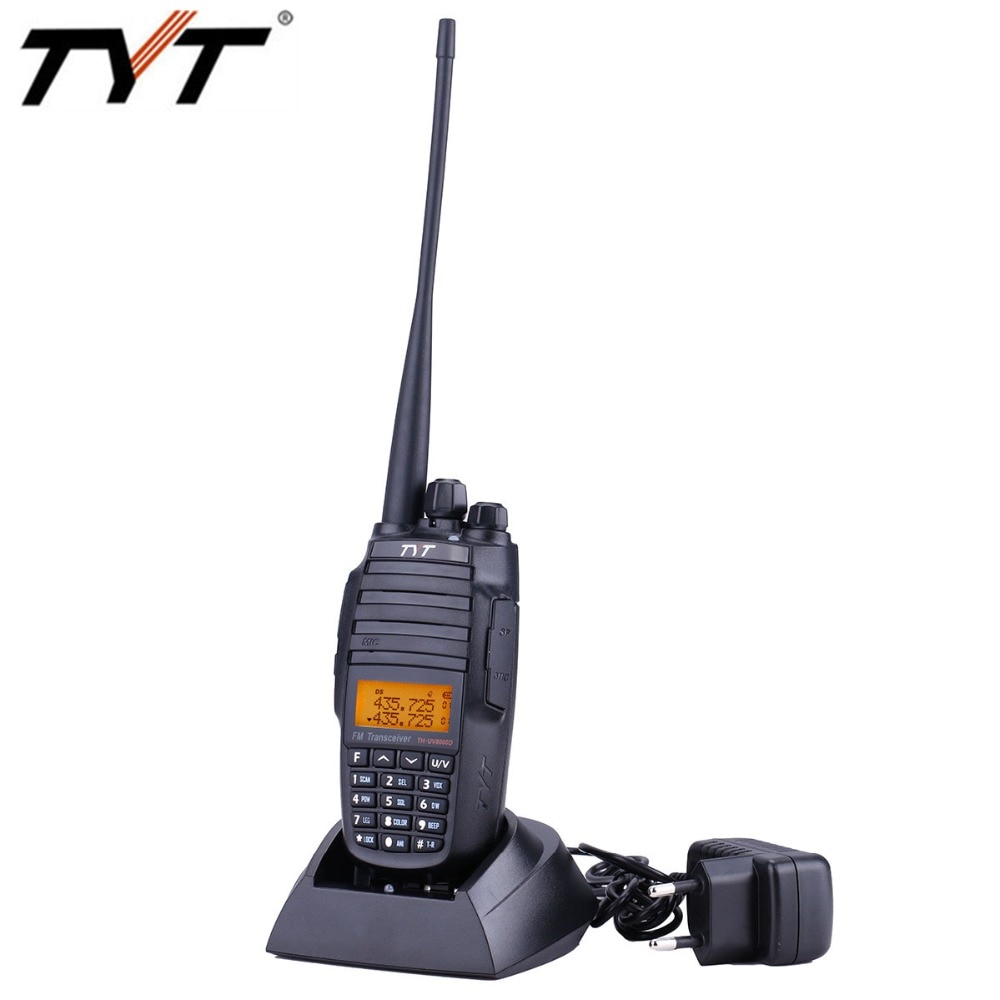

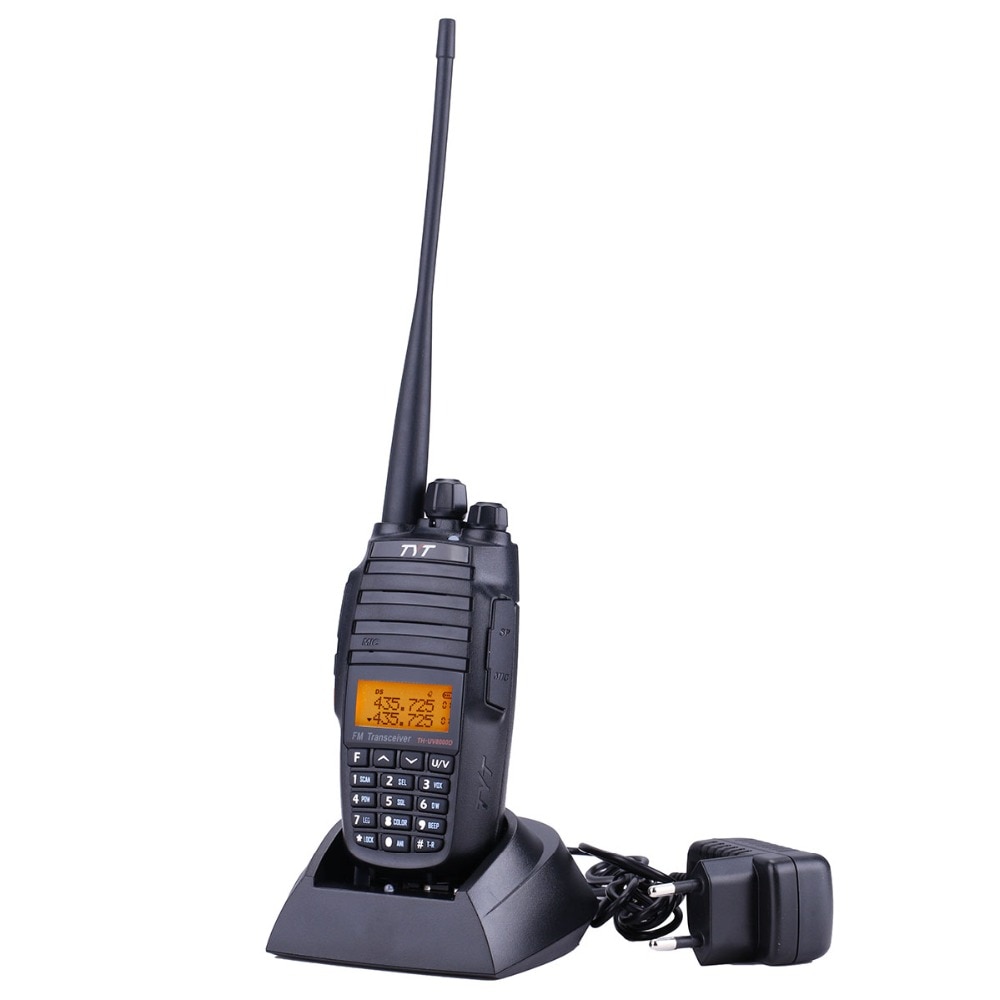

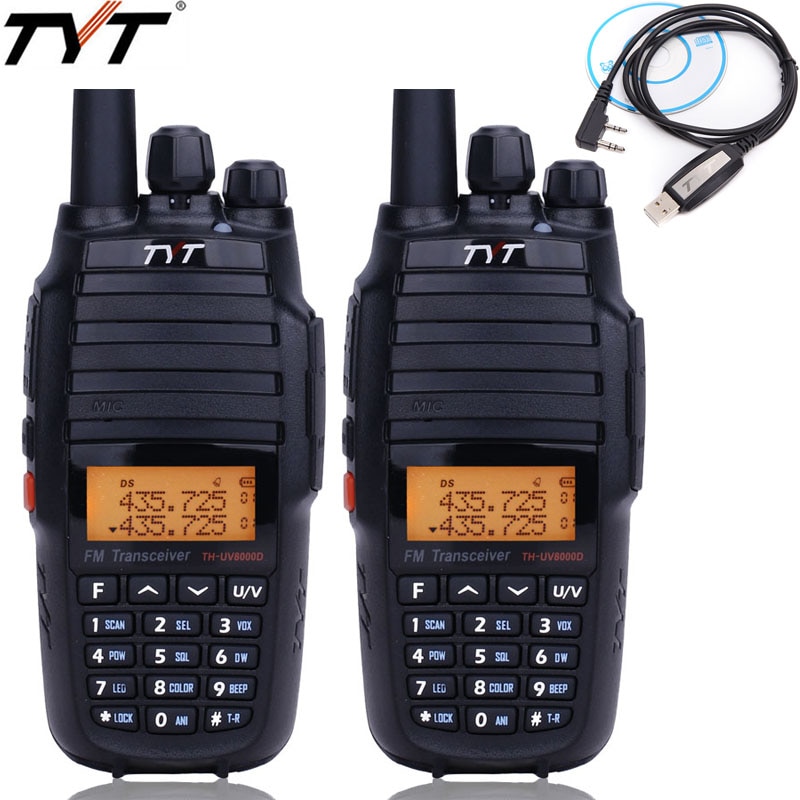

TYT TH-UV8000D Cross Band 10W Powerful Walkie Talkie Reapter 3600mAh Battery Long range Radio
Feature:
1. 100% Brand New & Never Used
2. Dual band, dual display, dual standby
3. 2*128 channels to store
4. FM radio receiver and 25 channels
5. Channel spacing selectable (25/12.5 KHz)
6. Hand free VOX function
7. CTCSS/DCS encoding and decoding
8. Cross band function
9. Low battery alarm
10. Emergency Alarm
11. Shift repeater function
12. ANI function
13. DTMF & Remote kill/stun function
14. Reverse frequency function
15. Tri-color background light selectable
16. Chinese & English prompt
17. MSK
18. 1750 Tone
19. PC software programmable
20. Channel scan function
21. Busy channel lock-out (BCL)
22. Monitor function
23. Time-out timer (TOT)
Specification:
|
General |
|
|
Frequency range |
VHF:136~174MHZ |
|
Frequency Stability |
±2.5PPm |
|
Operating voltage |
DC 7.2V (Rechargeable Li-ion battery) |
|
Channel NO. |
128×2 |
|
Antenna impedance |
50 ohm |
|
Mode of operation |
Simplex or semi-duplex |
|
Battery capacity |
3600mAh |
|
Color |
Black |
|
Dimension(Exclude antenna) |
13x6x3.5cm |
|
Weight |
291g |
|
Receiver |
|
|
RF Sensitivity |
-122dBm(12dB SINAD) |
|
Audio power |
>0.5W |
|
Audio distortion |
<10% |
|
Blocking |
>=85dB |
|
Intermediation |
>=60dB, >=55dB |
|
Selectivity |
>=65dB, >=60dB |
|
Spurious rejection |
>=65dB |
|
Transmitter |
|
|
Output power |
=5W |
|
Modulation mode |
F3E |
|
Maximum deviation |
<5KHz/<2.5KHz |
|
Adjacent Ch. power |
<=-65dB/ <=-60dB |
|
Spurious radiation |
<7µW |
|
Pre-emphasis characteristics |
6dB |
|
Current |
<=2.8A(10W),<=1.8A(5W) |
|
CTCSS/DCS deviation |
0.55KHz±20.15KHz, 0.4KHz±20.1KHz |
|
Intermediation sensitivity |
8~12mV |
|
Intermediation distortion |
<5% |

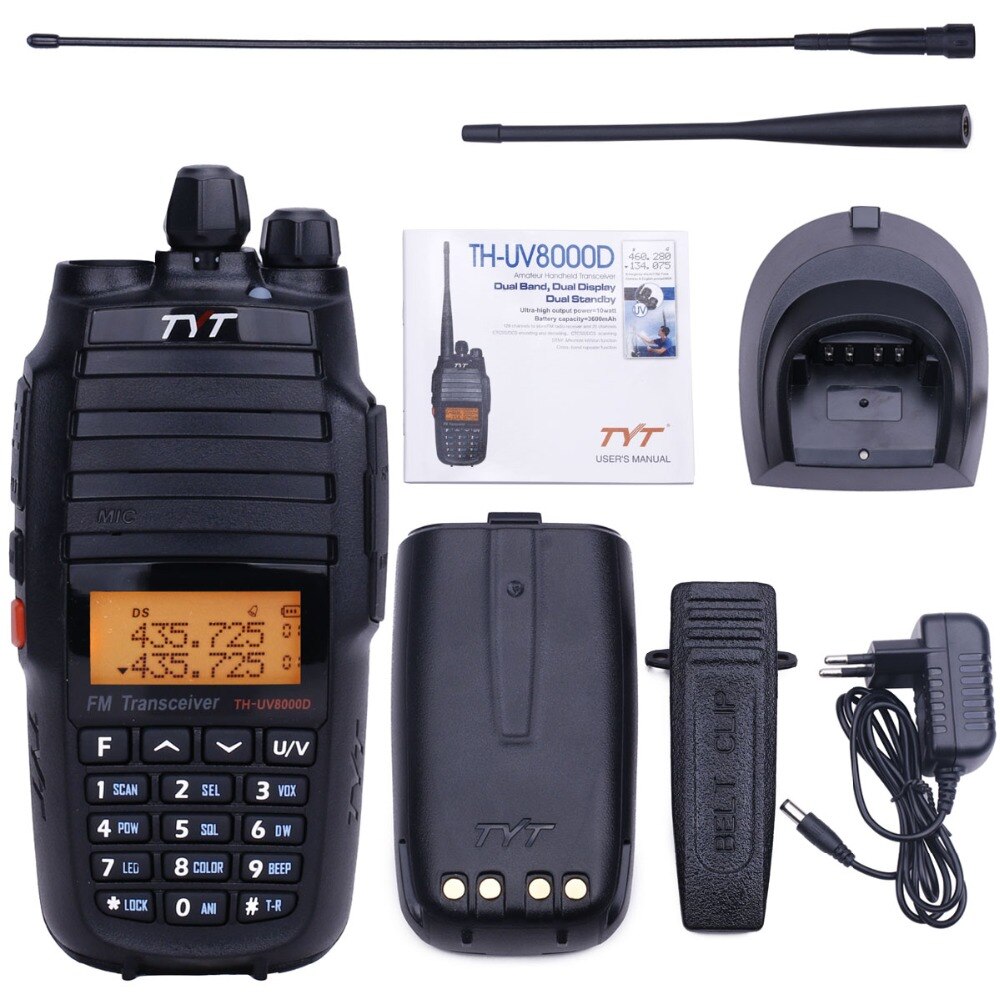

Package includes:
· 2x Portable Radio
· 4 x Antennas

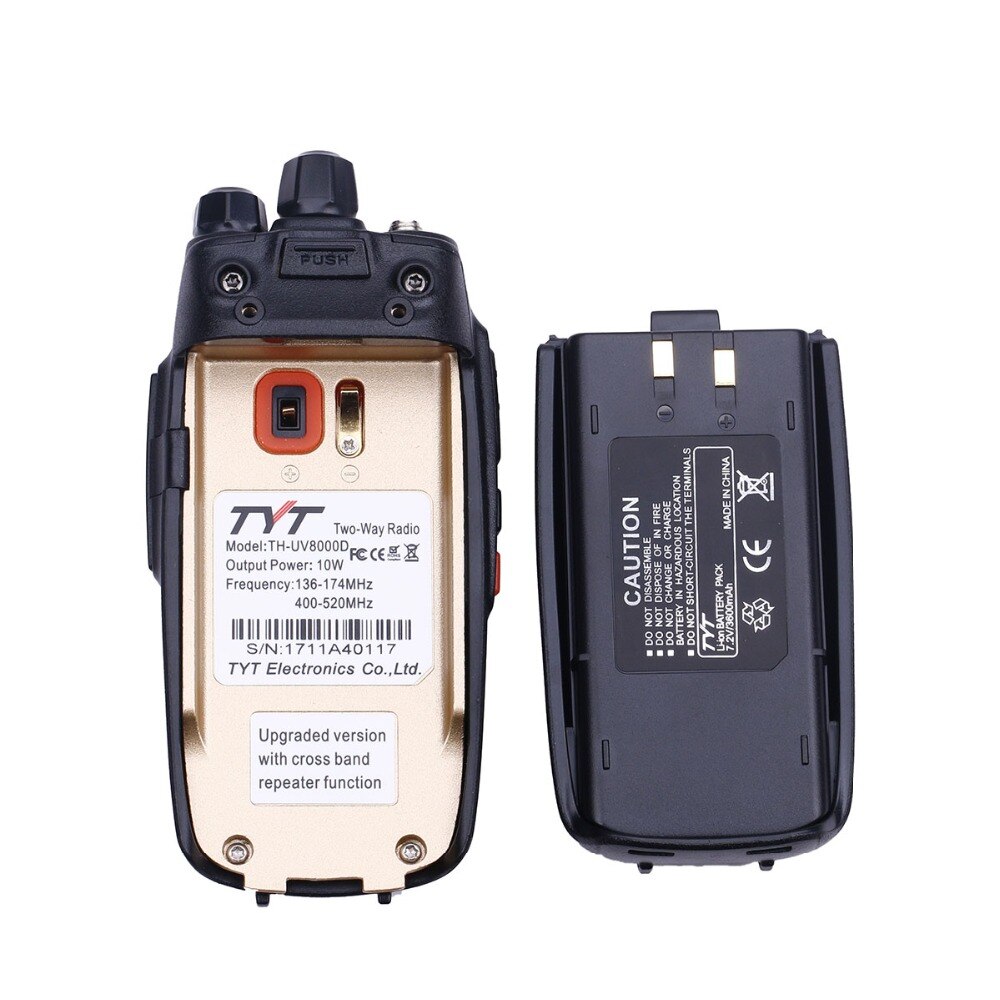

· 2 x Li-ion battery pack

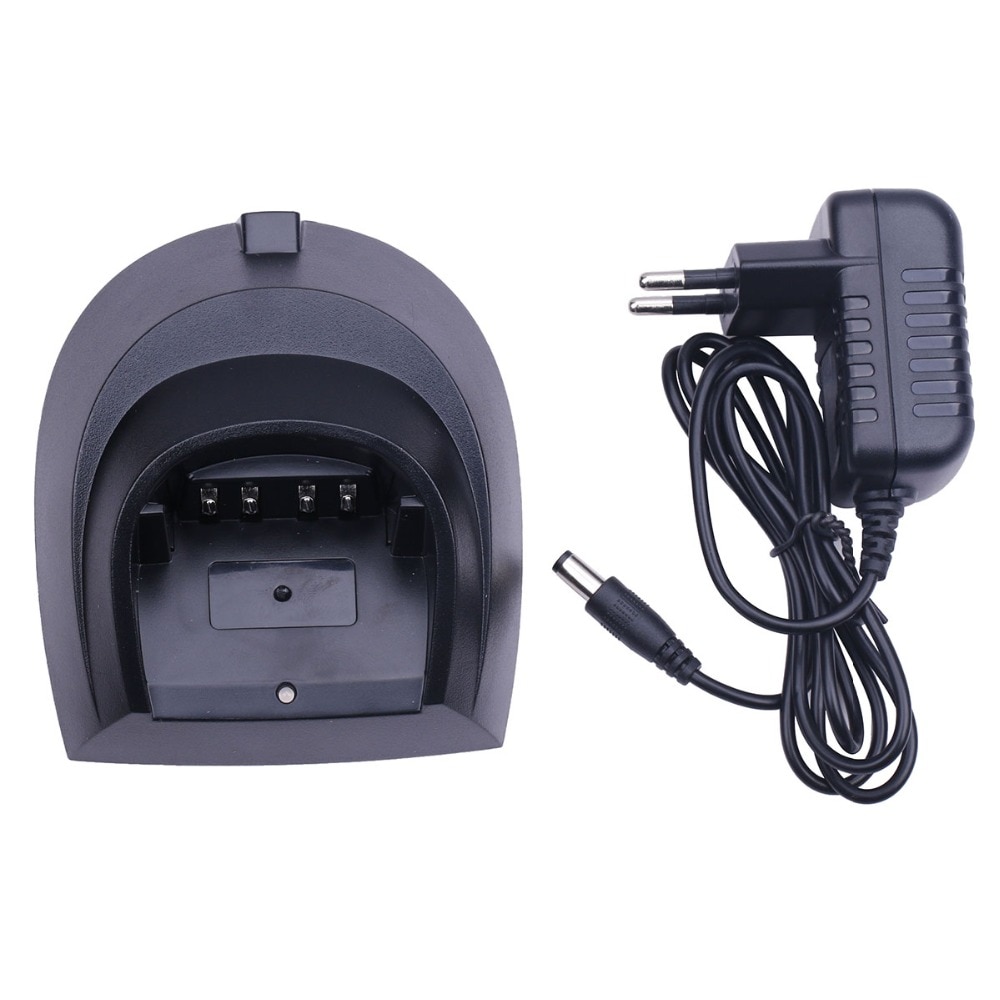

· 2x Charger
· 2 x Belt clip
· 2 x Lanyard
· 2 x User`s manual
