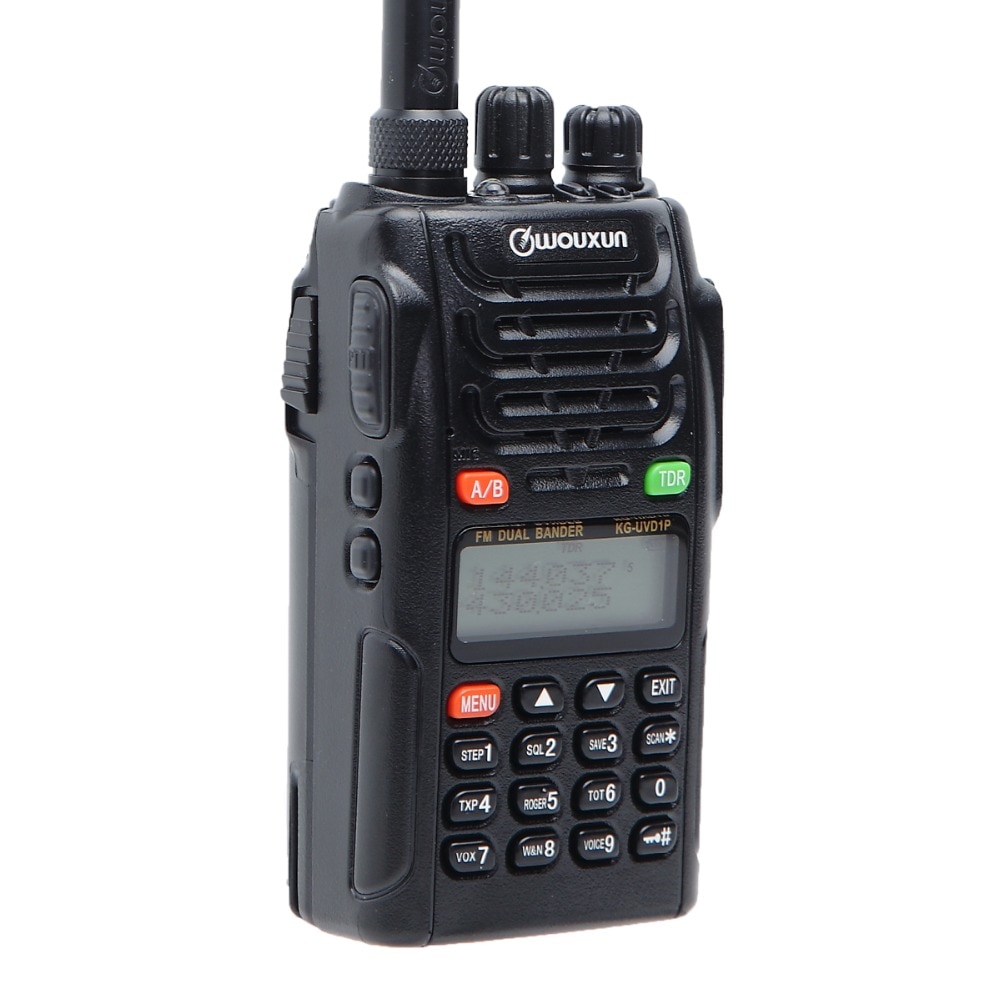

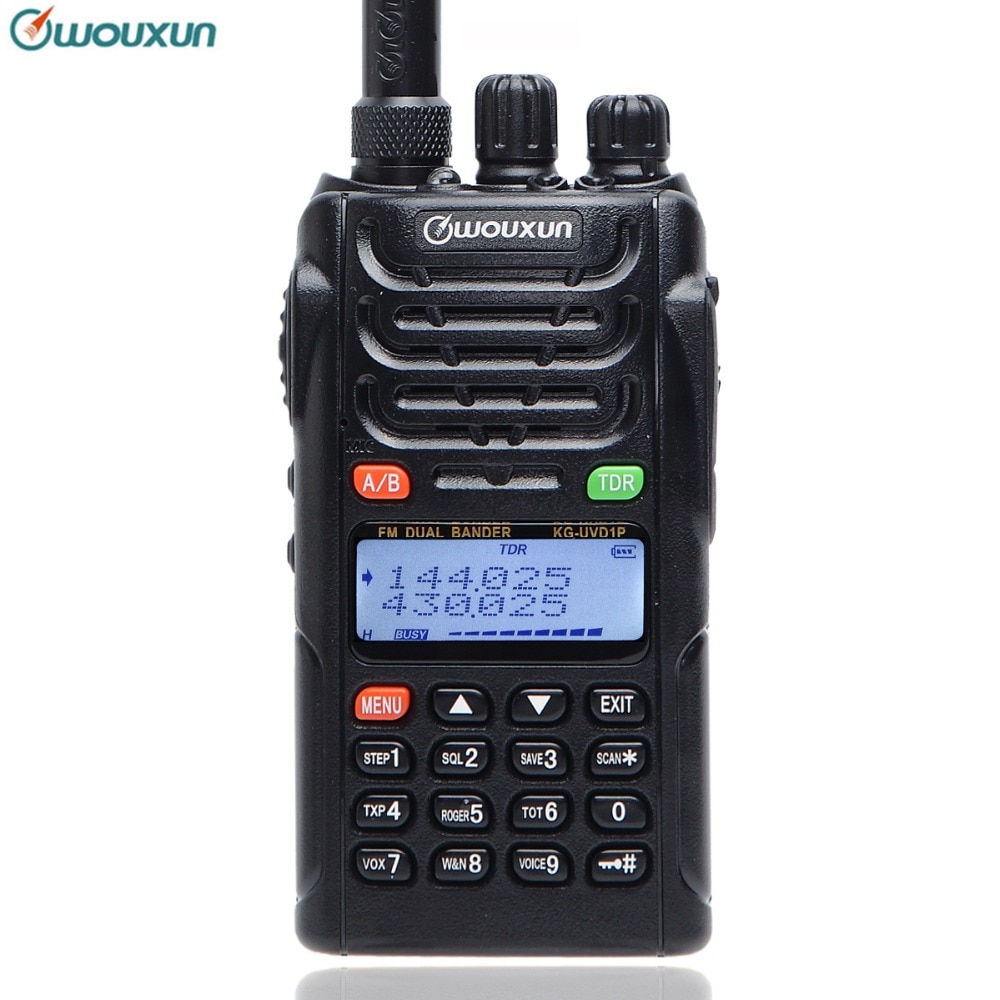

WOUXUN KG-UVD1P Dual Band DTMF 1750Hz CTCSS/DCS VOX SOS IP55 Waterproof Walkie Talkie 1700mAh Battery Protable radio
★【FCC&CE&Genuine】We are a genuine Wouxun authorized Wouxun Radio.We strictly follow the frequency limit requirements and programming guidelines of the FCC CE under the technical specifications.For authenticity, you can check on Wouxun’s official website
|
Wouxun KG-UV1P |
|
|
RX |
TX |
|
76-108MHz(RX) |
136-174MHz(TX) |
|
136-174Mhz (RX) |
406.1-470MHz(TX)
|
|
400-470MHz(RX) |
|
Dual Bands , Dual Display , Classic Two Way Radio KG-UVD1P
MAIN FUNCTIONS:
1750 Hz Burst Tone
DTMF Encoding Function
Working Mode :vhf tx-uhf rx or uhf tx-vhf rx can be set freely
CTCSS/DCS Scan
VOX and SOS Function
Bright Flashlight Illumination
Digital FM Radio
Bandwidth Selection
Priority Scan ,Add Scanning Channel “
High/Low Power Selection
50 Groups CTCSS/105 Groups CCTCSS
IP55 Waterproof
Wouxun KG-UVD1P Two Way Radio Dualband UHF/VHF
Feature:
1. Dual Band, Dual Frequency, Dual Display and Dual Standby
2. Frequency Range (can be suitable for different countries or areas):
76-108MHz(RX)136-174Mhz (RX)400-470MHz(RX)136-174MHz(TX)406.1-470MHz(TX)
3. Working Mode:U-V, V-V or U-U selectable
4. Channel setting:VHF Tx & UHF Rx or UHF Tx &VHF Rx selectable
5. DTMF encoding
6. Digital FM radio (76-108MHz)
7. CTCSS/DCS scan
8. Output power: 5W VHF /4W UHF
9. 128 memory channels
10. VOX
11. Stopwatch timer function
12. 105 groups D.C.S/50 groups CTCSS
13. Voice guide
14. SOS Function
15. Wide/Narrow bandwidth selection (25KHz / 12.5KHz)
16. Multi-display modes ( channel order number/ channel frequency/ channel name selectable)
17. Reverse frequency
18. Multi-functional scan modes
19. Priority scan function
20. Bright flashlight illumination
21. Frequency steps selectable (5/6.25/10/12.5/25KHz/50KHz/100KHz)
22. High/Low power changeable when transmitting
23. High capacity Li-ion batterypack
24. Intelligent charger
25. Offset frequency setting (0-69.950MHz)
26. Frequency shift direction setting
27. Busy channel lockout
28. Power-on message (Battery-V /Full Screen/Other Characters)
29. Low voltage prompt
30. Transmitting beginning/ ending prompt
31. Transmitting overtime prompt
32. Keypad lock (Auto / Manual)
33. Adding scanning channel
34. High/Low power switchable when transmitting
35. Programming by computer
36. Wire-clone function
37. Menu/ Channel reset
38. 1750Hz Burst Tone
Function:
|
Frequency Range |
Frequency range can be suitable for different countries or areas: 76-108MHz(RX)136-174Mhz (RX)400-470MHz(RX)136-174MHz(TX)406.1-470MHz(TX) |
|
Memory Channels |
128 Channels |
|
Frequency Stability |
2.5ppm |
|
Operating Voltage |
7.4V |
|
Operating Temperature |
-30~+60 |
|
Waterproof |
IP 55 |
|
Antenna Impedance |
50Omega |
|
Dimension |
58times105times38(mm) |
|
Weight |
250g |
|
Transmitter |
|
|
Frequency Stability |
.5PPM |
|
RF Carrier Power |
UHF: 4W VHF: 5W |
|
Effective Radiation Power (ERP) |
within pre-determined value 7.5dB |
|
Max. Frequency Deviation |
Channel Space: 25KHz Channel Space: 12.5KHz 2 5KHz |
|
Audio Modulation |
+3dB (pre-emphasis by 6dB between 0.3-3KHz) |
|
Adjacent Channel Power |
Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB |
|
Spurious Radiation |
le-30dBm |
|
Inter modulation Attenuation |
ge40dB |
|
Modulation Distortion |
le10% |
|
Residual FM |
le-35dB |
|
Residual AM |
le3% |
|
Receiver |
|
|
Sensitivity (12dB SINAD) |
0.16microV |
|
Squelch Rejection Sensitivity |
le0.8microV |
|
Squelch Sensitivity |
le0.2microV |
|
Audio Output power |
500mW |
|
Audio Distortion |
le5% |
|
Audio Response |
(300-3000Hz) +1 to -3dB |
|
Co-channel Rejection |
ge-8.0dB |
|
Performance of Amplitude Limiter |
le3 |
|
Adjacent Channel Selection |
Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB |
|
Inter-modulation |
ge65 dB |
|
Resistance |
ge84 dB |
|
Spurious Radiation |
9KHz-1GHzle-57dBm 1GHz-4GHzle-47dBm |

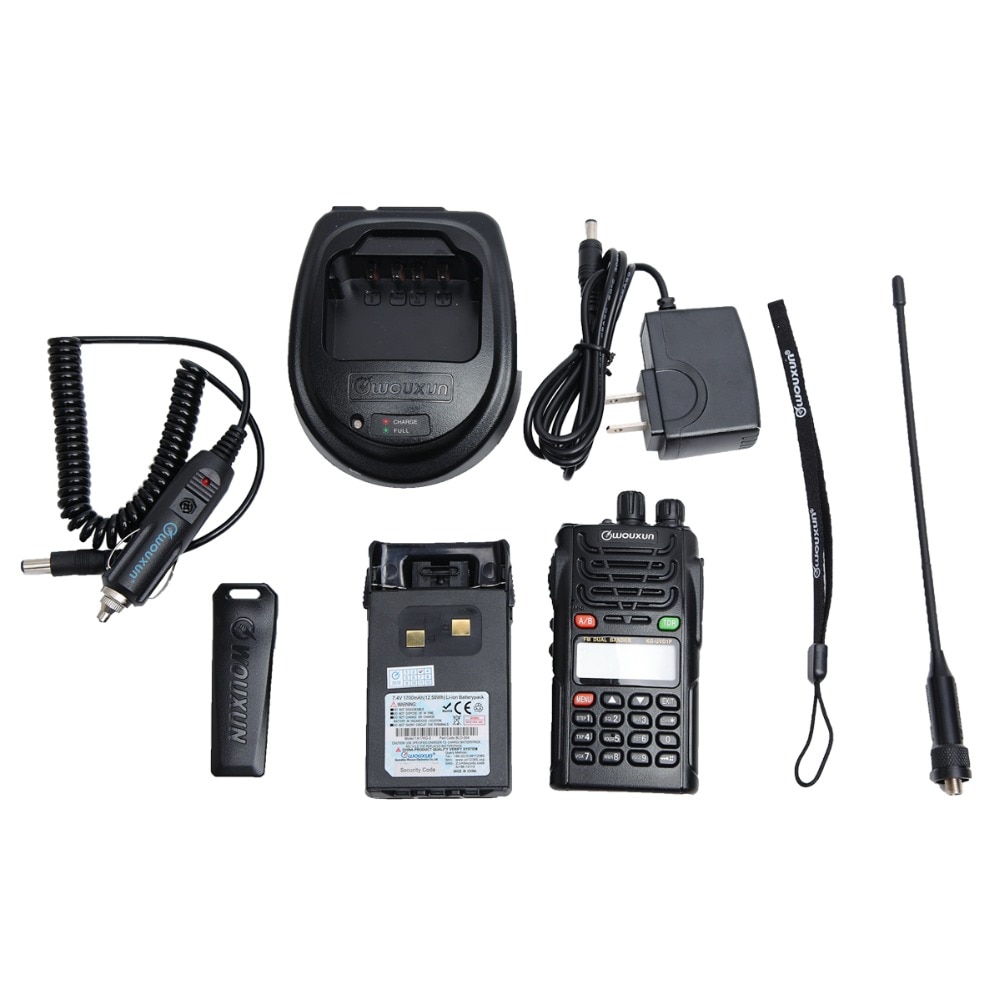

Factory standard:
1 x Dual Band Wouxun KG-UVD1P Radio

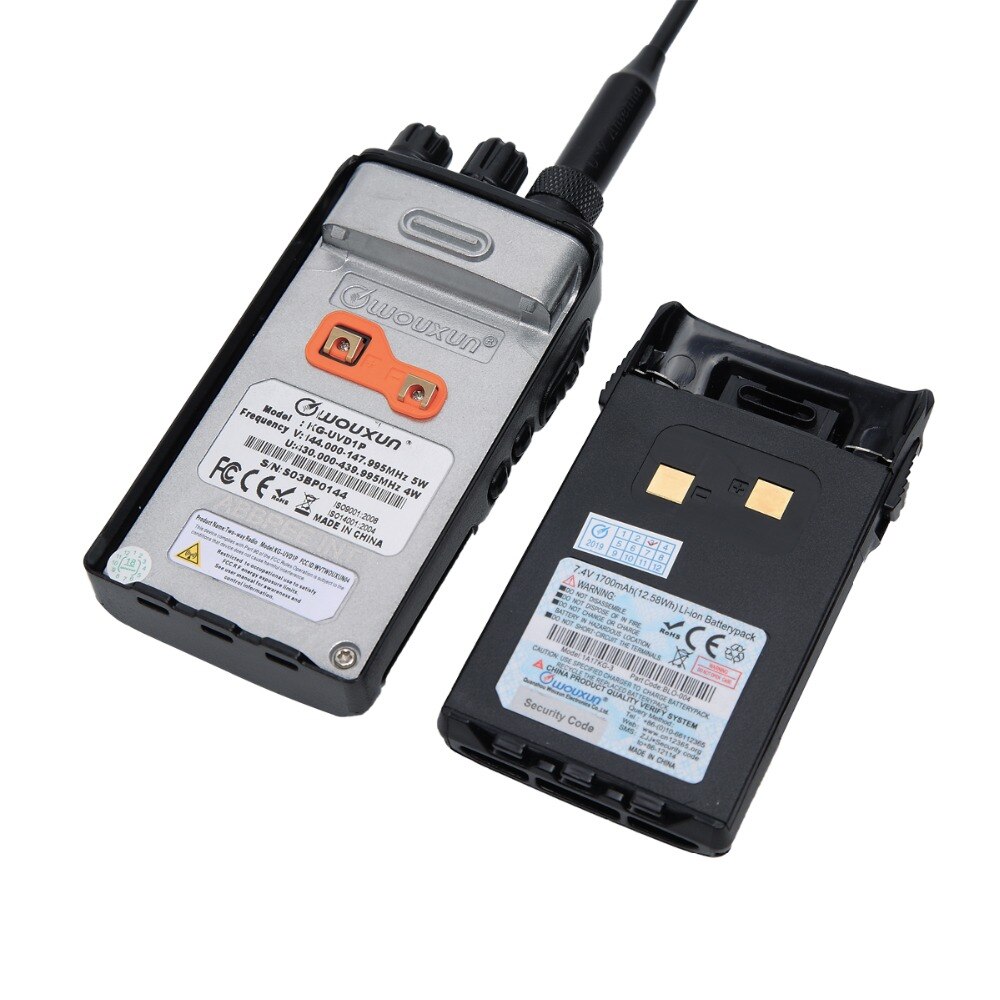

1 x 1700mAh Li-ion Battery
1 x Original High Gain Antenna

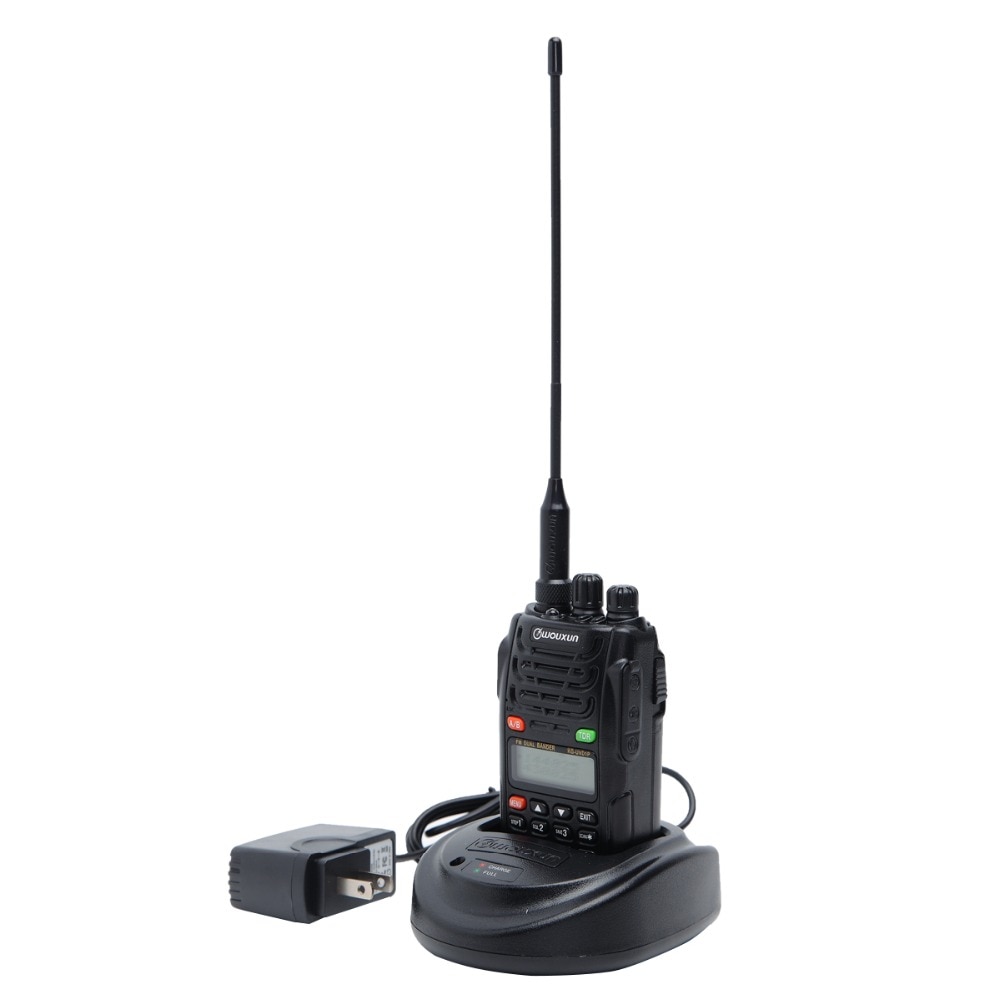

1 x Charger
1 x Belt clip
1 x Hand Strap
1 x car charger cable
1 x Userrsquos English Manual Book
1 x PTT headset
And other accessory depend on your choice in the link
